Sharp
Countertop Microwave

Model # R-510AW Official Sharp microwave

Here are the diagrams and repair parts for Official Sharp R-510AW microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

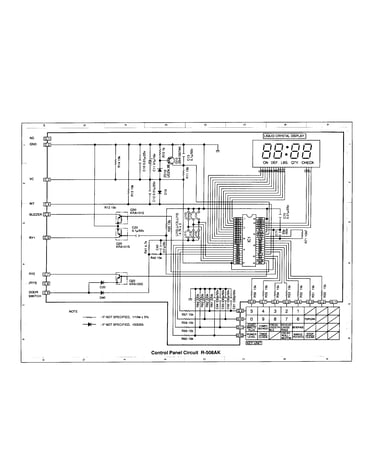

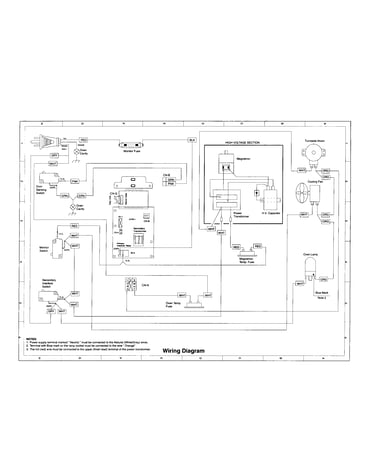

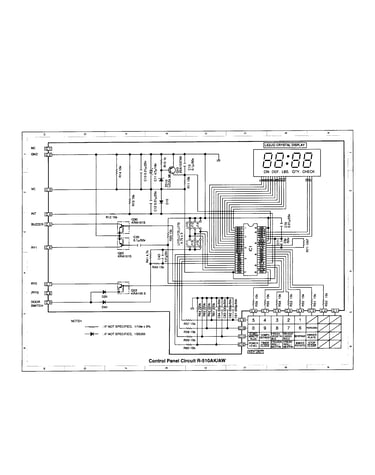

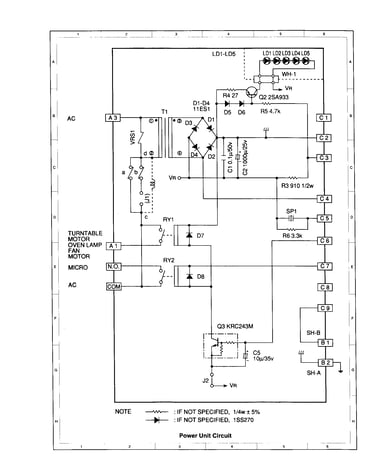

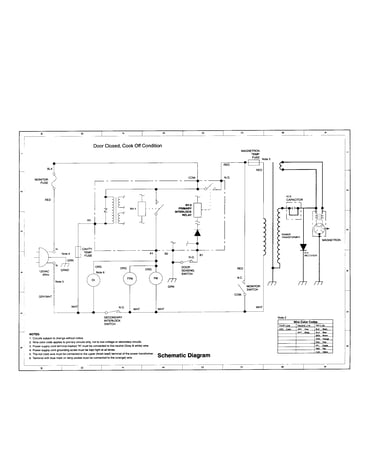

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 100 parts  |
Switch FFS-BA016/KIT

#1-07

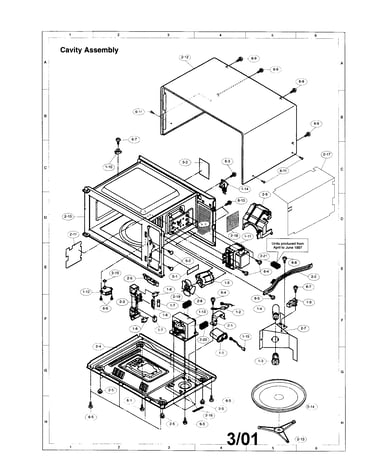

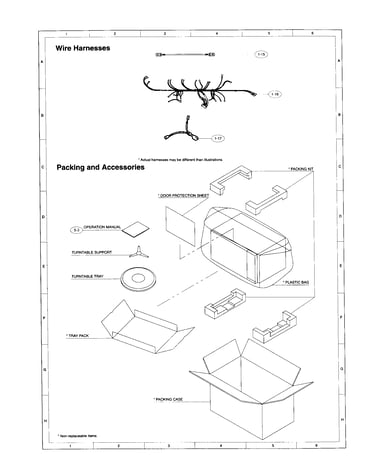

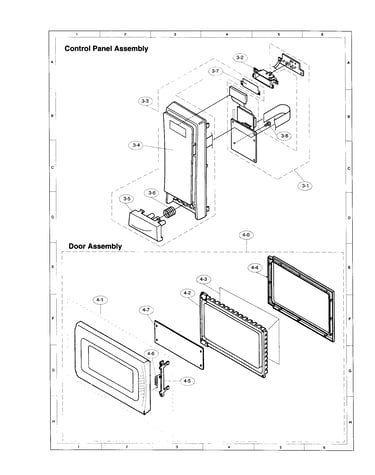

All parts diagram

Switch

Part #FFS-BA016/KIT

The manufacturer no longer makes this part, and there's no substitute part

Power Cord FACCDB001MRE0

#1-14

All parts diagram

Power cord

Part #FACCDB001MRE0

The manufacturer no longer makes this part, and there's no substitute part

Open Button JBTN-B064MRF0

#3-05

All parts diagram

Open button

Part #JBTN-B064MRF0

The manufacturer no longer makes this part, and there's no substitute part

Switch QSW-MA110WRE0

#1-08

All parts diagram

Switch

Part #QSW-MA110WRE0

The manufacturer no longer makes this part, and there's no substitute part

Door Film PSHEPB016MRE0

#4-03

All parts diagram

Door film

Part #PSHEPB016MRE0

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade NFANPB001MRE0

#2-08

All parts diagram

Fan blade

Part #NFANPB001MRE0

The manufacturer no longer makes this part, and there's no substitute part

Wave Guide PCOVPB054MRP0

#2-11

All parts diagram

Wave guide

Part #PCOVPB054MRP0

The manufacturer no longer makes this part, and there's no substitute part

Cushion PCUSUB036MRP0

#2-19

All parts diagram

Cushion

Part #PCUSUB036MRP0

The manufacturer no longer makes this part, and there's no substitute part

910 Ohm VRD-B12HF911J

#NI

All parts diagram

910 ohm

Part #VRD-B12HF911J

The manufacturer no longer makes this part, and there's no substitute part

Screw LX-CZA038WRE0

#6-09

All parts diagram

Screw

Part #LX-CZA038WRE0

The manufacturer no longer makes this part, and there's no substitute part
