Model # 53050472 Official Sears solid state stereo 8-track tape player with am/fm radio

Here are the diagrams and repair parts for Official Sears 53050472 solid state stereo 8-track tape player with am/fm radio, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

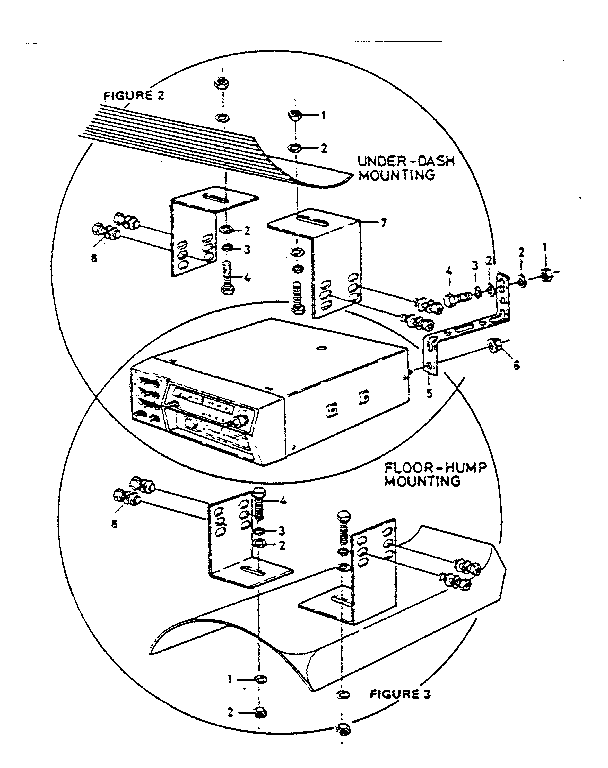

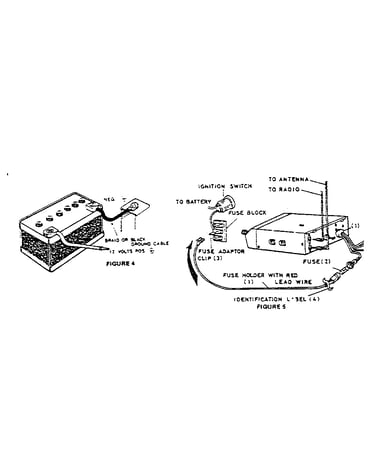

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Tuner 4-26081
#11

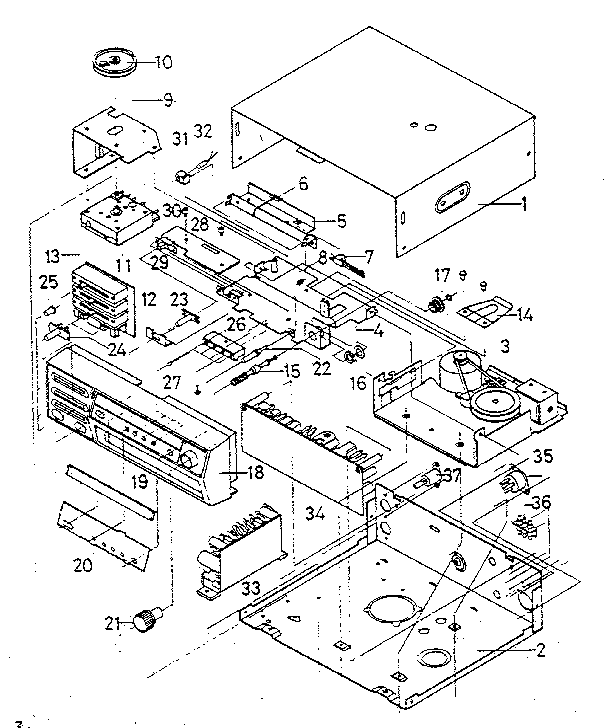

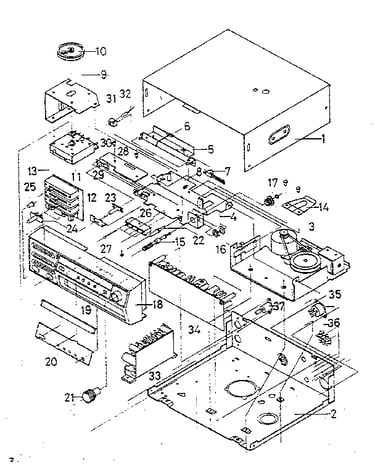

Cabinet & chassis diagram

Tuner

Part #4-26081

The manufacturer no longer makes this part, and there's no substitute part

Head 4-26132
#12

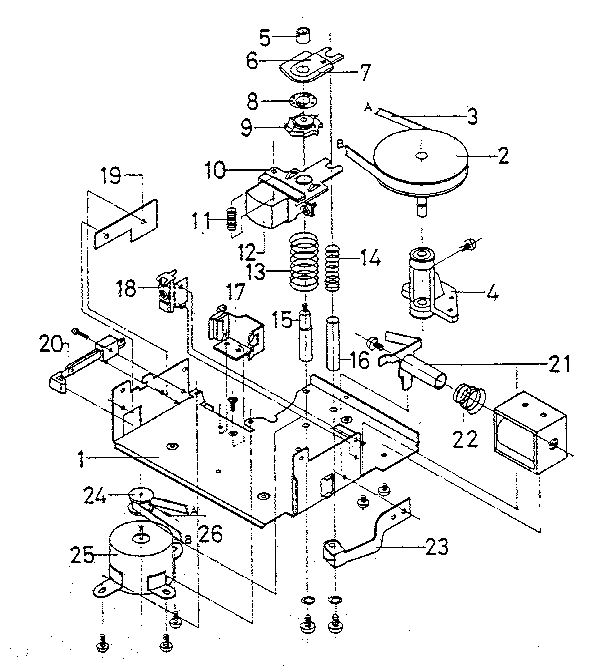

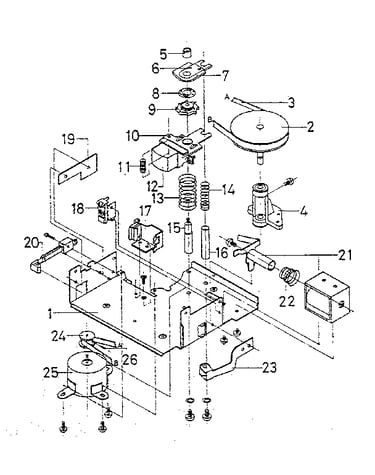

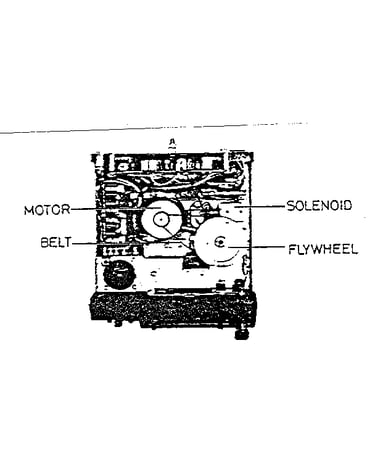

Mechanism diagram

Head

Part #4-26132

The manufacturer no longer makes this part, and there's no substitute part

Dial Back 4-26097
#5

Cabinet & chassis diagram

Dial back

Part #4-26097

The manufacturer no longer makes this part, and there's no substitute part

Aluminum Revet Flat Head 3 X 4 4-26162

#NI

All parts diagram

Aluminum revet flat head 3 x 4

Part #4-26162

The manufacturer no longer makes this part, and there's no substitute part

Pan Head 4-26150

#NI

All parts diagram

Pan head

Part #4-26150

The manufacturer no longer makes this part, and there's no substitute part

Hd Shaft 4-26135
#15

Mechanism diagram

Hd shaft

Part #4-26135

The manufacturer no longer makes this part, and there's no substitute part

Program Switch Spring 4-26099
#8

Cabinet & chassis diagram

Program switch spring

Part #4-26099

The manufacturer no longer makes this part, and there's no substitute part

Slide Vr 4-26103
#13

Cabinet & chassis diagram

Slide vr

Part #4-26103

The manufacturer no longer makes this part, and there's no substitute part

Condenser 4-26056
#36

Cabinet & chassis diagram

Condenser

Part #4-26056

The manufacturer no longer makes this part, and there's no substitute part

Cartridge Padder 4-26104
#14

Cabinet & chassis diagram

Cartridge padder

Part #4-26104

The manufacturer no longer makes this part, and there's no substitute part
