Model # WAH117P2T2 Official White-Westinghouse room air conditioner - 5995216081

Here are the diagrams and repair parts for Official White-Westinghouse WAH117P2T2 room air conditioner - 5995216081, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

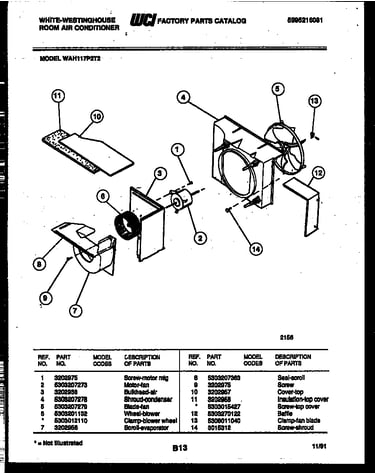

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 65 parts  |

Westinghouse Room Air Conditioner Filter Dryer 5300265301
#2

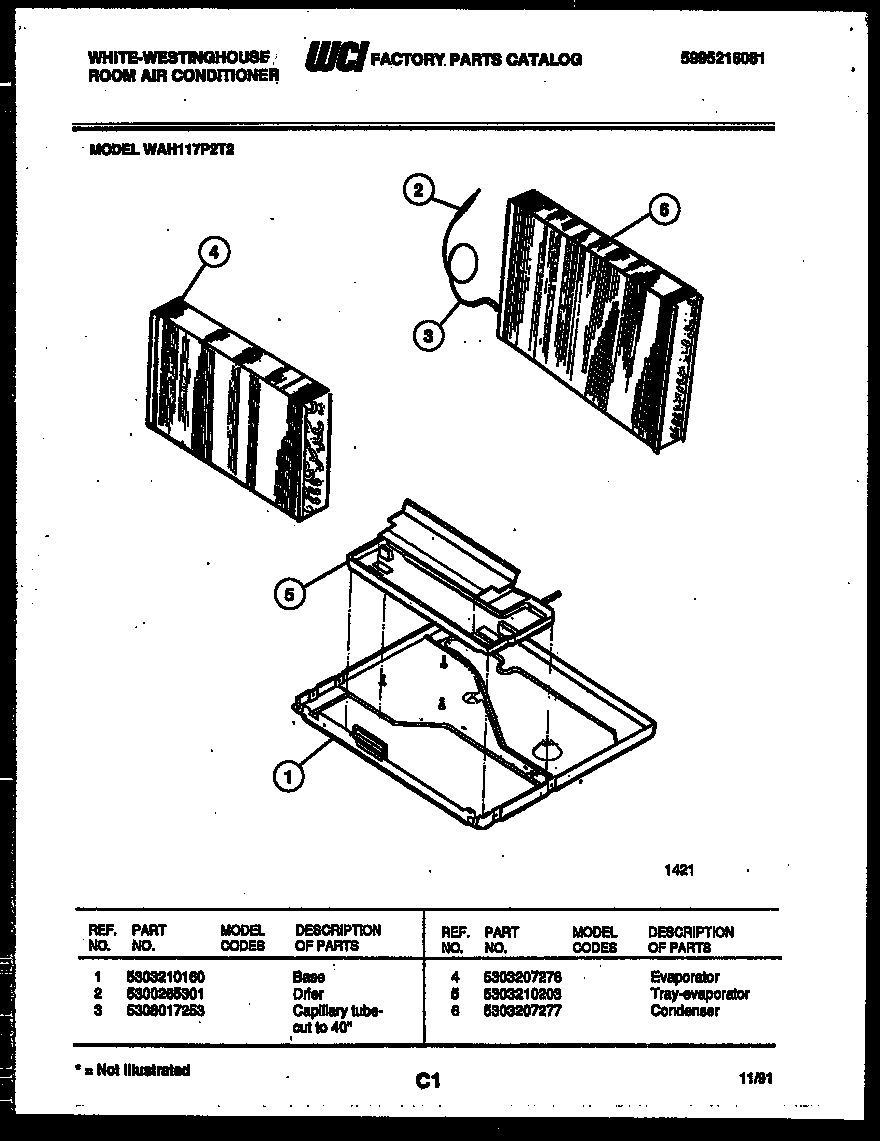

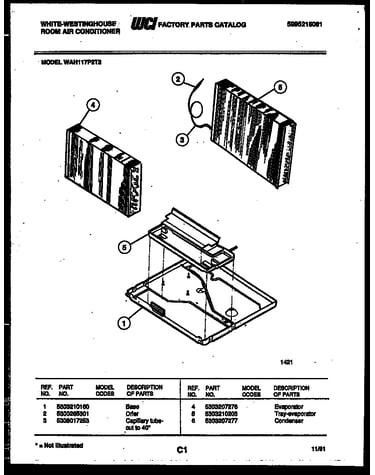

Unit parts diagram

Westinghouse room air conditioner filter dryer

Part #5300265301

In Stock

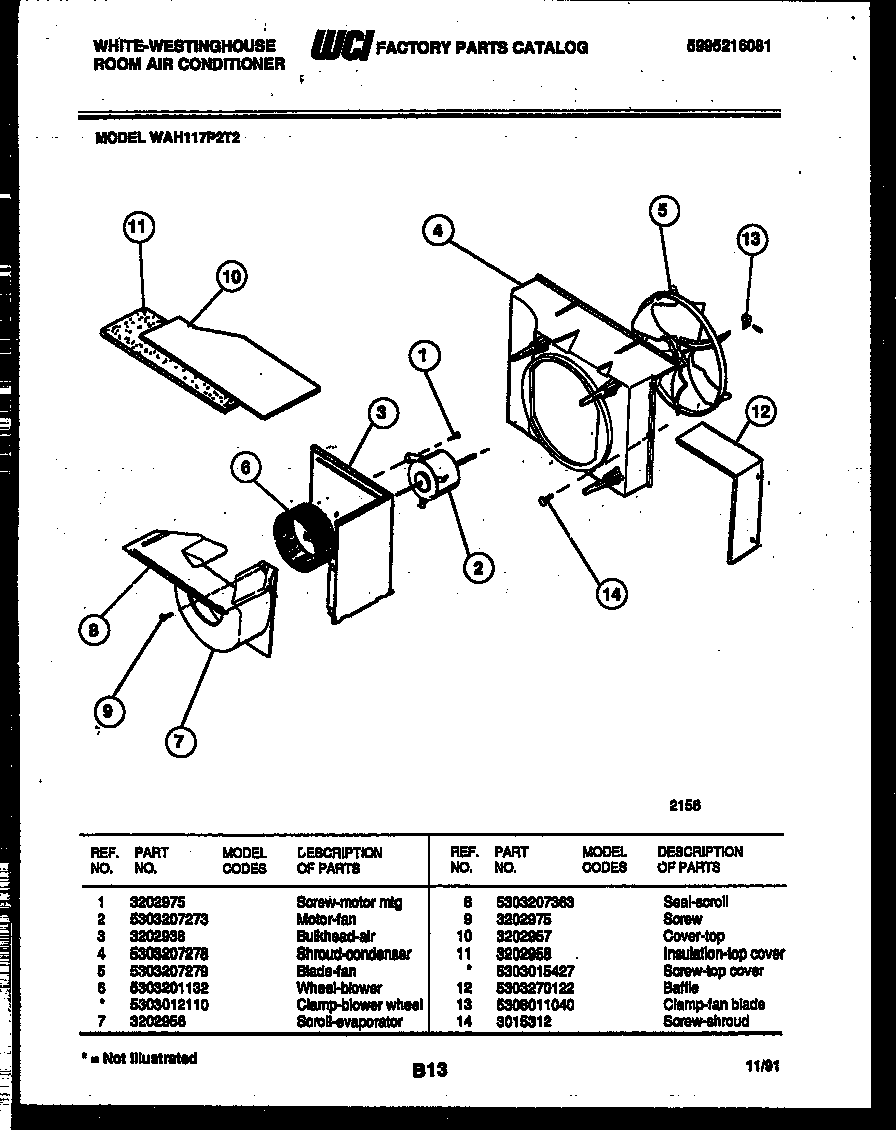

Screw 3202975
Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
In Stock
Bracket Screw 3015312
Bracket screw

Part #3015312

Replaced by #5303293767

?
Manufacturer substitution
This part replaces 3015312. Substitute parts can look different from the original.
This item is not returnable
In Stock
Room Air Conditioner Screw 5303015427
Room air conditioner screw

Part #5303015427

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303015427. Substitute parts can look different from the original.
In Stock
Seal 5303001984
#14

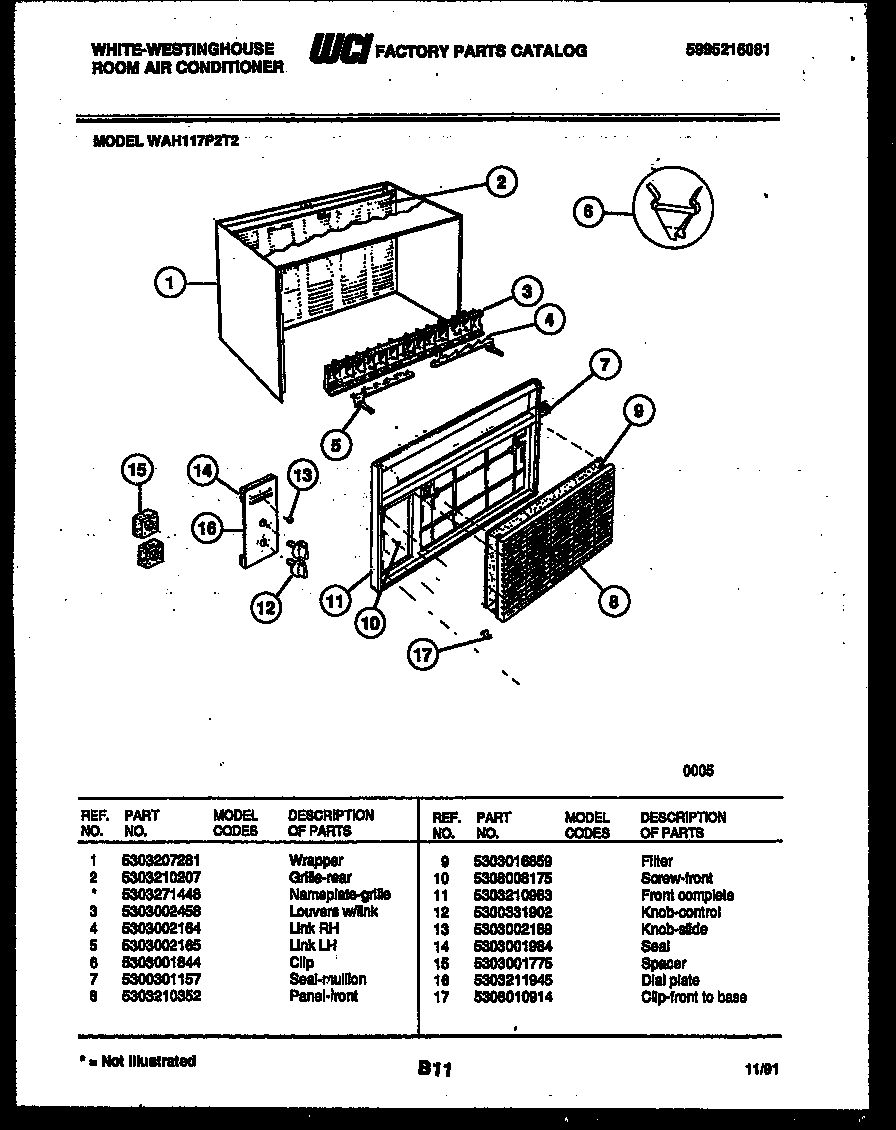

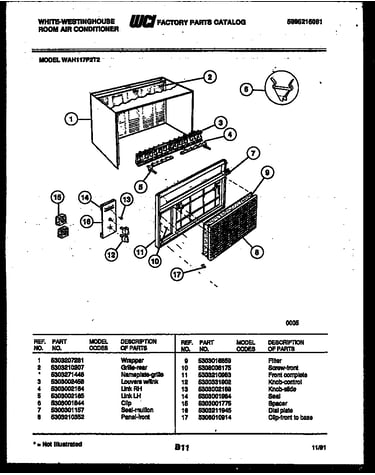

Cabinet parts diagram

Seal

Part #5303001984

The manufacturer no longer makes this part, and there's no substitute part

Compressor Grommet 5303015945
#6

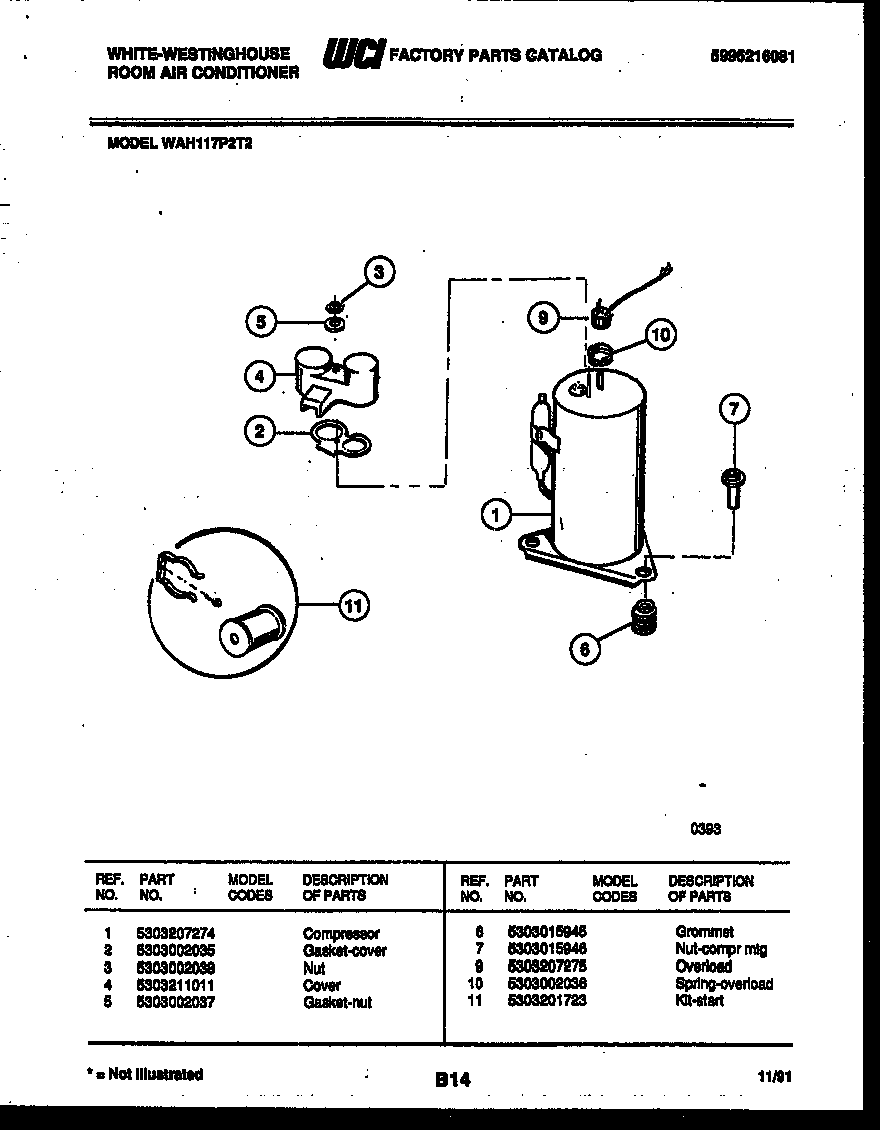

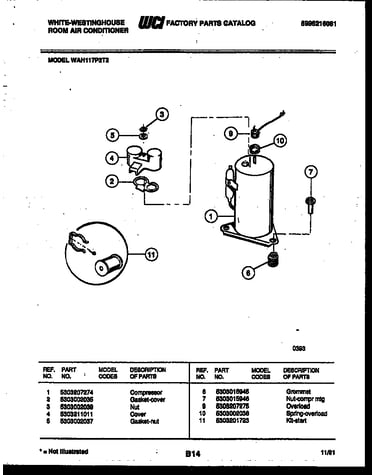

Compressor parts diagram

Compressor grommet

Part #5303015945

The manufacturer no longer makes this part, and there's no substitute part

Gasket 5303002037
#5

Compressor parts diagram

Gasket

Part #5303002037

The manufacturer no longer makes this part, and there's no substitute part

Nameplate 5303271448
#2A

Cabinet parts diagram

Nameplate

Part #5303271448

The manufacturer no longer makes this part, and there's no substitute part

Cable 5303015298
#4

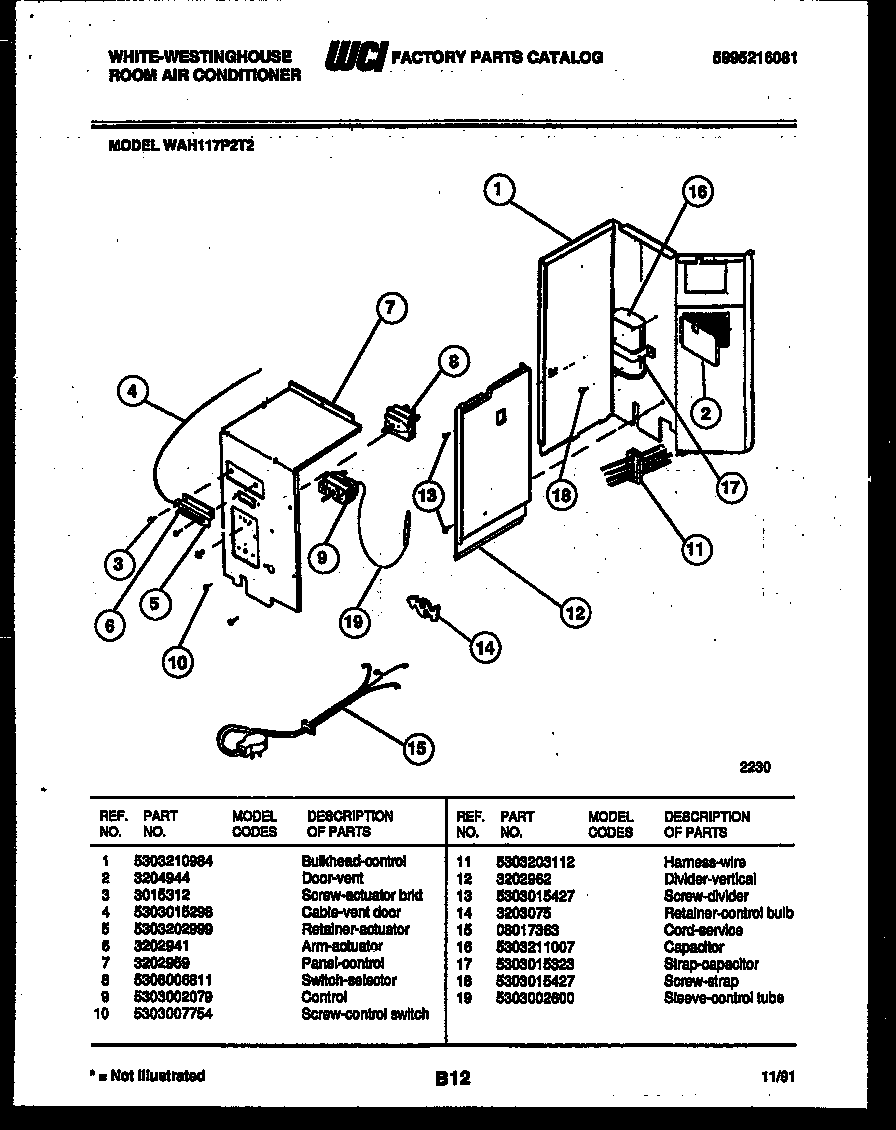

Electrical parts diagram

Cable

Part #5303015298

The manufacturer no longer makes this part, and there's no substitute part

Screw 5303007754
#10

Electrical parts diagram

Screw

Part #5303007754

The manufacturer no longer makes this part, and there's no substitute part
