DeWalt
Drill/Driver

Model # DC728KATY1 Official DeWalt drill

Here are the diagrams and repair parts for Official DeWalt DC728KATY1 drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

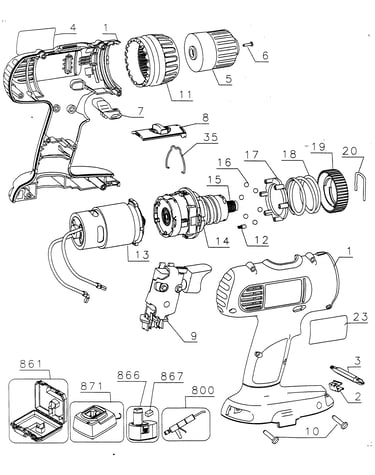

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 30 parts  |
Drill Screw 605256-01
#6

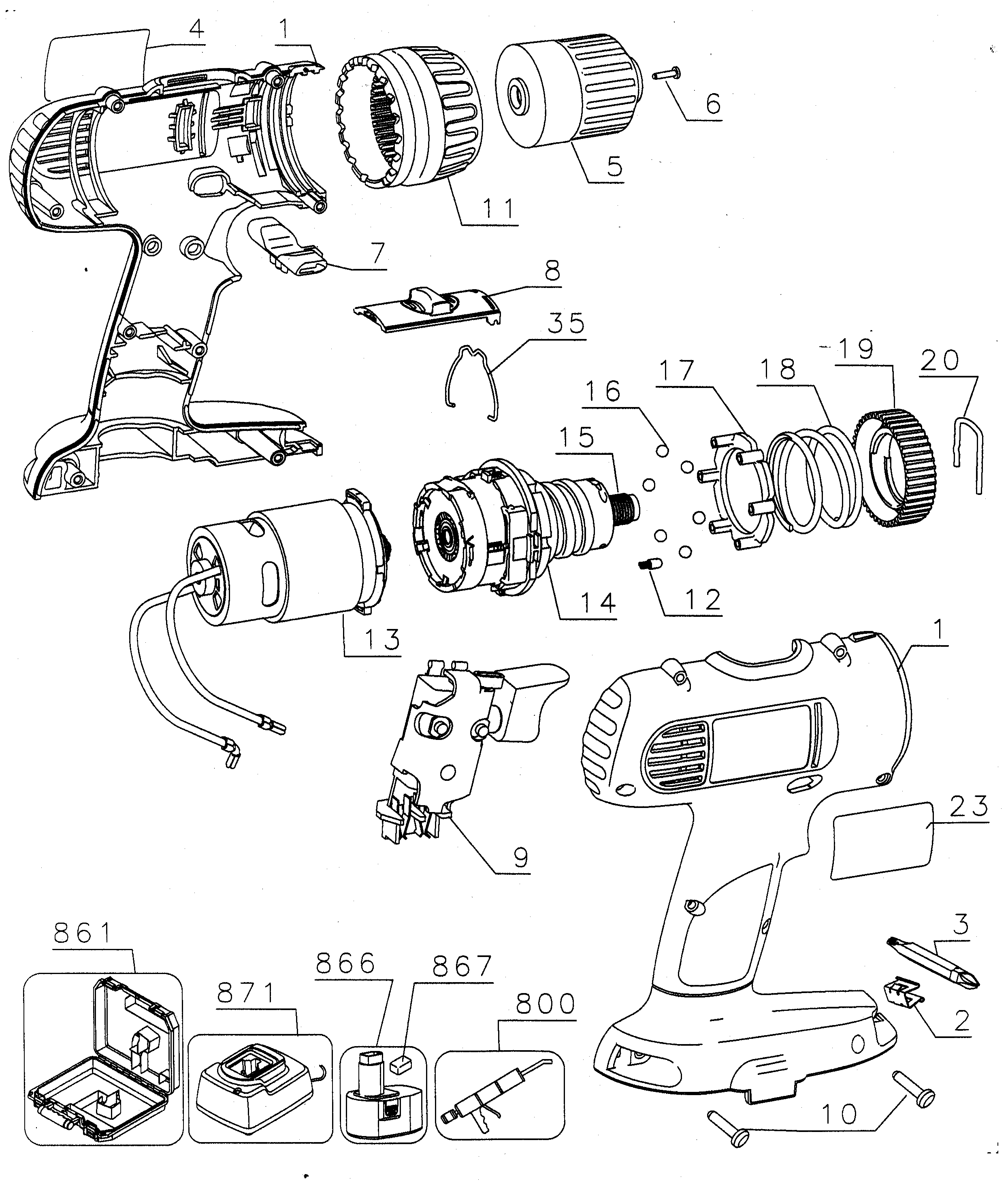

Drill assy diagram

Drill screw

Part #605256-01

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Nameplate 620804-00
#23

Drill assy diagram

Dewalt nameplate

Part #620804-00

The manufacturer no longer makes this part, and there's no substitute part

Shift Wire 391896-00
#35

Drill assy diagram

Shift wire

Part #391896-00

The manufacturer no longer makes this part, and there's no substitute part

Black & Decker F/r Button 623997-00
#7

Drill assy diagram

Black & decker f/r button

Part #623997-00

The manufacturer no longer makes this part, and there's no substitute part

Plate 397303-00
#17

Drill assy diagram

Plate

Part #397303-00

The manufacturer no longer makes this part, and there's no substitute part

Ball 386690-00
#16

Drill assy diagram

Ball

Part #386690-00

The manufacturer no longer makes this part, and there's no substitute part

Collar 618335-00
#11

Drill assy diagram

Collar

Part #618335-00

The manufacturer no longer makes this part, and there's no substitute part

Adj. Nut 391911-00
#19

Drill assy diagram

Adj. nut

Part #391911-00

The manufacturer no longer makes this part, and there's no substitute part

Drill Bit Holder 148354-03
#2

Drill assy diagram

Drill bit holder

Part #148354-03

The manufacturer no longer makes this part, and there's no substitute part

Dewalt Clamshell 620787-01
#1

Drill assy diagram

Dewalt clamshell

Part #620787-01

The manufacturer no longer makes this part, and there's no substitute part
