Model # US11EA-P1330229M Official Amana commercial microwave

Here are the diagrams and repair parts for Official Amana US11EA-P1330229M commercial microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

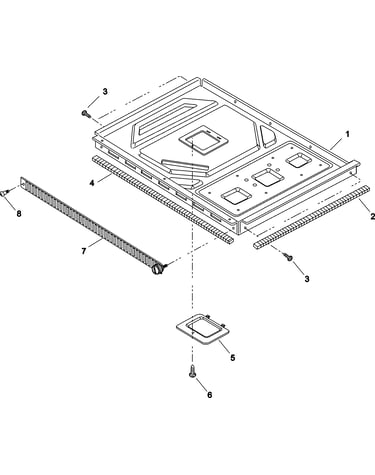

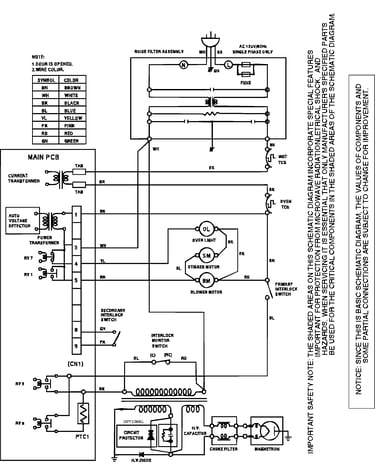

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 80 parts  |
Tapping Screw R0131246
Tapping screw

Part #R0131246

Replaced by #W11380570

?
Manufacturer substitution
This part replaces R0131246. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
"screw, Binin" R0654028
#15

Electrical, grease shield, ducts, diagram

"screw, binin"

Part #R0654028

Replaced by #4344826

?
Manufacturer substitution
This part replaces R0654028. Substitute parts can look different from the original.
$12.49
In Stock
Plate Screw R0654036
Plate screw

Part #R0654036

Replaced by #W11380570

?
Manufacturer substitution
This part replaces R0654036. Substitute parts can look different from the original.
This item is not returnable
$18.19 |
10% OFF Phone Price : $20.19
In Stock
Magnetron 53001581
#23

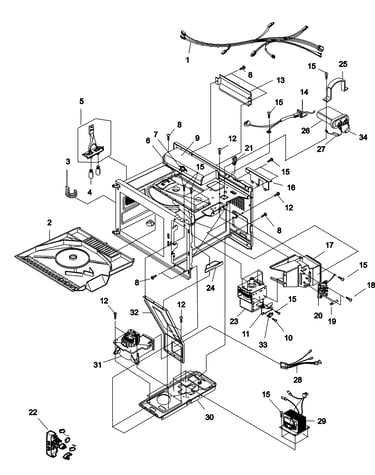

Electrical, grease shield, ducts, diagram

Magnetron

Part #53001581

The manufacturer no longer makes this part, and there's no substitute part

"assy, Outer" 53001826
#5A

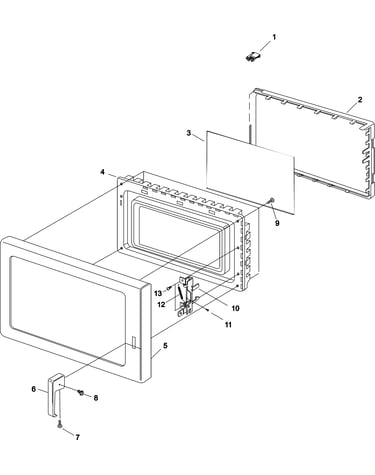

Door diagram

"assy, outer"

Part #53001826

The manufacturer no longer makes this part, and there's no substitute part

Lamp Cover 53001550
#4

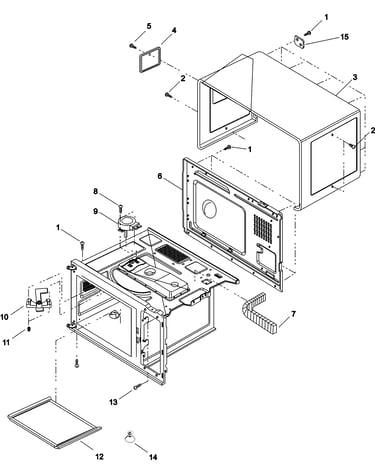

Antenna, tray, outer case, diagram

Lamp cover

Part #53001550

The manufacturer no longer makes this part, and there's no substitute part

Power Board Pcb 53001659
#4

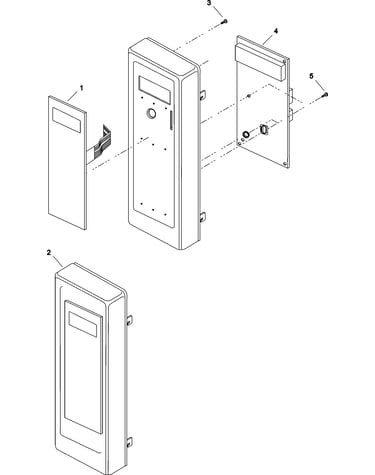

Timer and escutcheon diagram

Power board pcb

Part #53001659

The manufacturer no longer makes this part, and there's no substitute part

Lamp Cover 53001579
#4A

Antenna, tray, outer case, diagram

Lamp cover

Part #53001579

The manufacturer no longer makes this part, and there's no substitute part

Main Harness 53001661
#1

Electrical, grease shield, ducts, diagram

Main harness

Part #53001661

The manufacturer no longer makes this part, and there's no substitute part

Cable Assembly 53001725
#34

Electrical, grease shield, ducts, diagram

Cable assembly

Part #53001725

The manufacturer no longer makes this part, and there's no substitute part
