Model # EW455C Official Adobe Aire evaporative cooler

Here are the diagrams and repair parts for Official Adobe Aire EW455C evaporative cooler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 20 parts  |
Pump A400113A
#4

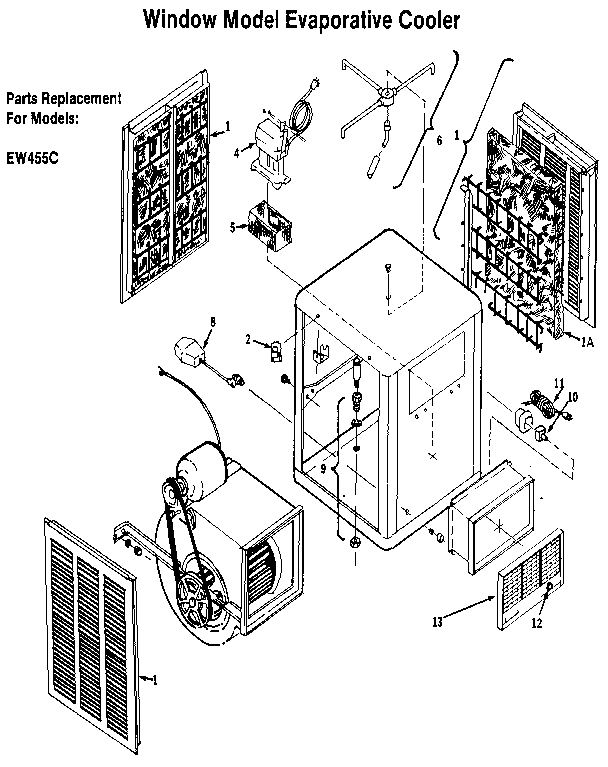

Window model evaporative cooler diagram

Pump

Part #A400113A

The manufacturer no longer makes this part, and there's no substitute part

Washer (pink) P5-402-4
#19

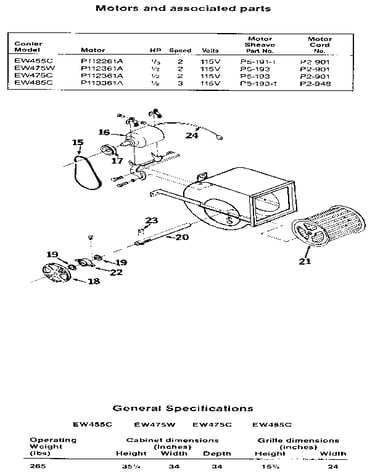

Motors and associated diagram

Washer (pink)

Part #P5-402-4

The manufacturer no longer makes this part, and there's no substitute part

Cord Plug P202404A
#11

Window model evaporative cooler diagram

Cord plug

Part #P202404A

The manufacturer no longer makes this part, and there's no substitute part

Screen M400501A
#5

Window model evaporative cooler diagram

Screen

Part #M400501A

The manufacturer no longer makes this part, and there's no substitute part

Latch Pad A903902A
#2

Window model evaporative cooler diagram

Latch pad

Part #A903902A

The manufacturer no longer makes this part, and there's no substitute part

Pad Assembly A501901A
#1

Window model evaporative cooler diagram

Pad assembly

Part #A501901A

The manufacturer no longer makes this part, and there's no substitute part

Hollow Shaft M311002A
#20

Motors and associated diagram

Hollow shaft

Part #M311002A

The manufacturer no longer makes this part, and there's no substitute part

Knb Sped Ctr A707401A
#12

Window model evaporative cooler diagram

Knb sped ctr

Part #A707401A

The manufacturer no longer makes this part, and there's no substitute part

Pipe W/bushg A7-2001
#9

Window model evaporative cooler diagram

Pipe w/bushg

Part #A7-2001

The manufacturer no longer makes this part, and there's no substitute part

Bearing A703807A
#22

Motors and associated diagram

Bearing

Part #A703807A

The manufacturer no longer makes this part, and there's no substitute part
