Amana
Range/Microwave Combo

Model # 651.003 Official Amana electric range/microwave combo

Here are the diagrams and repair parts for Official Amana 651003 electric range/microwave combo, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 207 parts  |
Fuse Holder M4D39
#29A

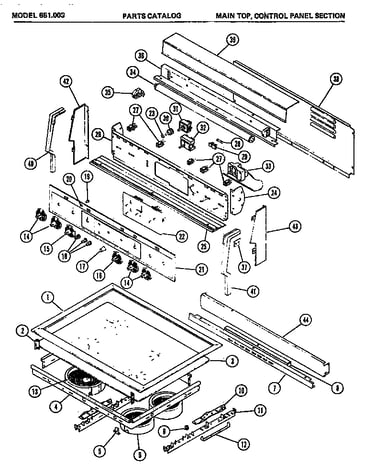

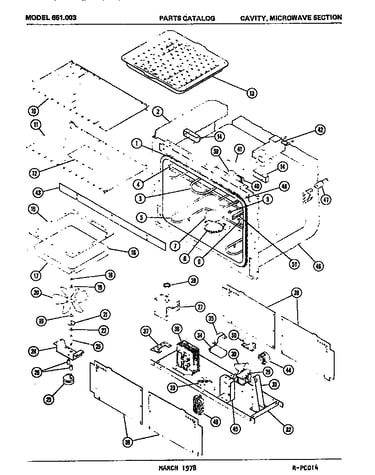

Main top (651.003) diagram

Fuse holder

Part #M4D39

The manufacturer no longer makes this part, and there's no substitute part

Vent Extrusion M52D129
#7A

Main top (651.003) diagram

Vent extrusion

Part #M52D129

The manufacturer no longer makes this part, and there's no substitute part

Clip, Liner Mtg. M1D516
#7

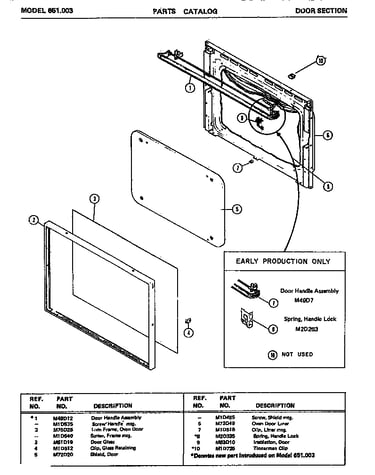

Door section (651.003) diagram

Clip, liner mtg.

Part #M1D516

The manufacturer no longer makes this part, and there's no substitute part

Insulation Retainer (side) M52D85
#36A

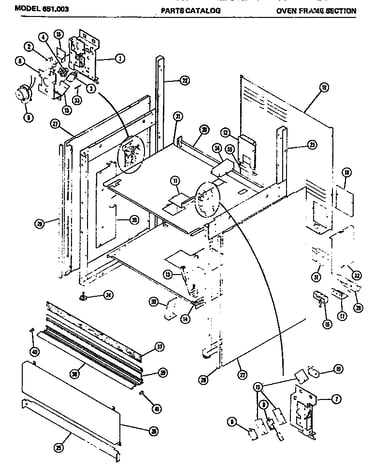

Oven frame section (651.003) diagram

Insulation retainer (side)

Part #M52D85

The manufacturer no longer makes this part, and there's no substitute part

Switch, Surface Light M14D119
#30A

Main top (651.003) diagram

Switch, surface light

Part #M14D119

The manufacturer no longer makes this part, and there's no substitute part

Harness Clip M2D239
#6

Main top (651.003) diagram

Harness clip

Part #M2D239

The manufacturer no longer makes this part, and there's no substitute part

Blower Motor M12D33
#29A

(651.003) diagram

Blower motor

Part #M12D33

The manufacturer no longer makes this part, and there's no substitute part

Power Transformer M60D54
#36

(651.003) diagram

Power transformer

Part #M60D54

The manufacturer no longer makes this part, and there's no substitute part

Handle Lock Spring M2D335
#8

Door section (651.003) diagram

Handle lock spring

Part #M2D335

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Trim Alignment M2D323
#37

Main top (651.003) diagram

Bracket, trim alignment

Part #M2D323

The manufacturer no longer makes this part, and there's no substitute part
