Model # AH154L2T1 Official White-Westinghouse room air conditioner - lw34088170

Here are the diagrams and repair parts for Official White-Westinghouse AH154L2T1 room air conditioner - lw34088170, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Door 2627D77H02
#1

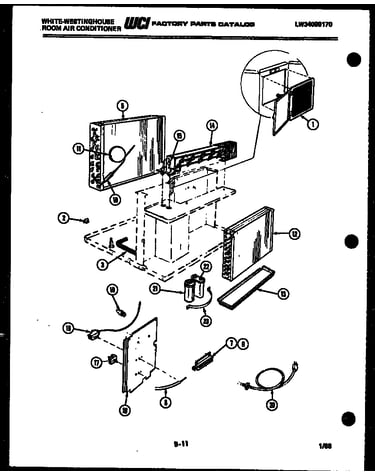

Electrical parts diagram

Door

Part #2627D77H02

Replaced by #5303012455

?
Manufacturer substitution
This part replaces 2627D77H02. Substitute parts can look different from the original.
This item is not returnable
$5.99
In Stock
Rear Grille 3015951
#3

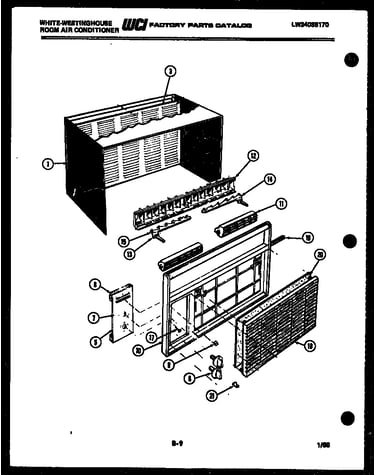

Cabinet parts diagram

Rear grille

Part #3015951

Replaced by #5308006428

?
Manufacturer substitution
This part replaces 3015951. Substitute parts can look different from the original.
$37.99
In Stock
Clip C313218
#2

Electrical parts diagram

Clip

Part #C313218

The manufacturer no longer makes this part, and there's no substitute part

Capac-compressor A274724
#21

Electrical parts diagram

Capac-compressor

Part #A274724

The manufacturer no longer makes this part, and there's no substitute part

Evap. Tray A428902
#13

Electrical parts diagram

Evap. tray

Part #A428902

The manufacturer no longer makes this part, and there's no substitute part

Fan Blade 2627D94H04
#1

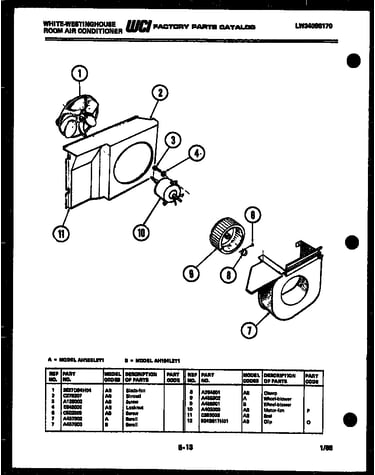

Air handling parts diagram

Fan blade

Part #2627D94H04

The manufacturer no longer makes this part, and there's no substitute part

Cover A330701
#1

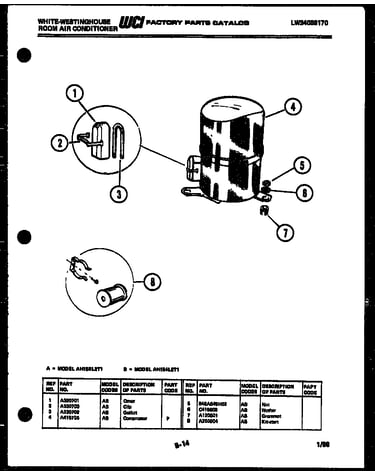

Compressor parts diagram

Cover

Part #A330701

The manufacturer no longer makes this part, and there's no substitute part

Spacer-dial Plate A119602
#5

Cabinet parts diagram

Spacer-dial plate

Part #A119602

The manufacturer no longer makes this part, and there's no substitute part

Seal C295003
#11

Air handling parts diagram

Seal

Part #C295003

The manufacturer no longer makes this part, and there's no substitute part

Clip A142501
#15

Cabinet parts diagram

Clip

Part #A142501

The manufacturer no longer makes this part, and there's no substitute part
