GE
Electric Water Heater

Model # BEH80DCEJSBB Official GE water heater

Here are the diagrams and repair parts for Official GE BEH80DCEJSBB water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Sensor Assembly WS17X10011
#335

Control panel & shroud diagram

Sensor assembly

Part #WS17X10011

$24.64
In Stock
Dishwasher Base Panel Screw, #8-18 X 0.48-in (replaces Wd02x10083) WD02X10160
Dishwasher base panel screw, #8-18 x 0.48-in (replaces wd02x10083)

Part #WD02X10160

This item is not returnable
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Wire Sensor T3a/t3b/t4 WS17X21303
#332

Control panel & shroud diagram

Wire sensor t3a/t3b/t4

Part #WS17X21303

Replaced by #WS17X10011

?
Manufacturer substitution
This part replaces WS17X21303. Substitute parts can look different from the original.
$24.64
In Stock
Spring Washer WS02X10080
#371

Unit parts diagram

Spring washer

Part #WS02X10080

$8.26
In Stock
Wire (e-d) WS19X10033
#120

Control panel & shroud diagram

Wire (e-d)

Part #WS19X10033

$7.86
In Stock
Fan Blade WS26X20102
#370

Unit parts diagram

Fan blade

Part #WS26X20102

$11.89
In Stock
Nut 5/16-18 WS02X20444
#303

Unit parts diagram

Nut 5/16-18

Part #WS02X20444

$7.86
In Stock
Cover Element WS82X10006
#224

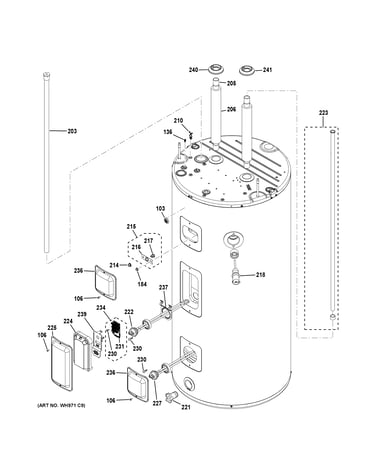

Body parts diagram

Cover element

Part #WS82X10006

$7.86
In Stock
Spring Clip WS03X10074
#237

Body parts diagram

Spring clip

Part #WS03X10074

This item is not returnable
$8.91
In Stock
Washer WS02X10081
#372

Unit parts diagram

Washer

Part #WS02X10081

$8.26
In Stock
