Model # PF086031 Official Proform 860 stepper

Here are the diagrams and repair parts for Official Proform PF086031 860 stepper, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |

Healthrider Allen Wrench, 7/32-in 045017

#NI

All parts diagram

Healthrider allen wrench, 7/32-in

Part #045017

This item is not returnable
In Stock
Healthrider Exercise Equipment Nut 112488
#59

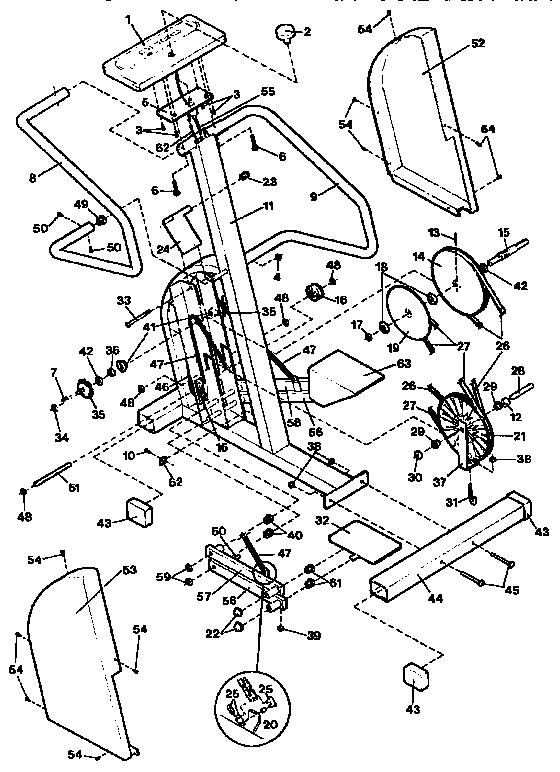

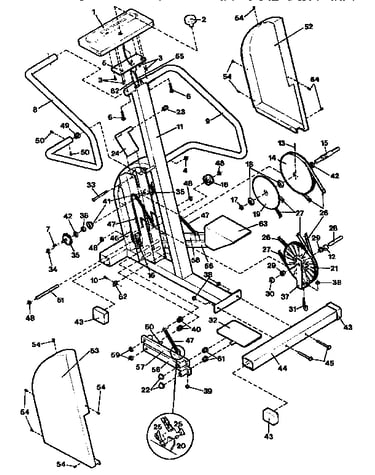

Unit parts diagram

Healthrider exercise equipment nut

Part #112488

This item is not returnable
In Stock
Pin,rp,3/16" 109701
#13

Unit parts diagram

Pin,rp,3/16"

Part #109701

This item is not returnable
In Stock
Exercise Equipment Hex Nut 012108
#4

Unit parts diagram

Exercise equipment hex nut

Part #012108

This item is not returnable
In Stock
Weider Clamp,wire M 016055

#NI

All parts diagram

Weider clamp,wire m

Part #016055

This item is not returnable
In Stock
Image Exercise Equipment Carriage Bolt 109692
#45

Unit parts diagram

Image exercise equipment carriage bolt

Part #109692

This item is not returnable
In Stock
Exercise Equipment Screw 013162
#54

Unit parts diagram

Exercise equipment screw

Part #013162

This item is not returnable
In Stock
Exercise Equipment Push Nut 105496
#48

Unit parts diagram

Exercise equipment push nut

Part #105496

This item is not returnable
In Stock
Exercise Equipment Screw 013544
#6

Unit parts diagram

Exercise equipment screw

Part #013544

This item is not returnable
In Stock
Shaft,drive, 109548
#15

Unit parts diagram

Shaft,drive,

Part #109548

The manufacturer no longer makes this part, and there's no substitute part
