Samsung
LCD Television

Model # UN58J5190AFXZA-IS01 Official Samsung lcd television

Here are the diagrams and repair parts for Official Samsung UN58J5190AFXZA-IS01 lcd television, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 56 parts  |
Lead Connector BN39-01903N
#NI

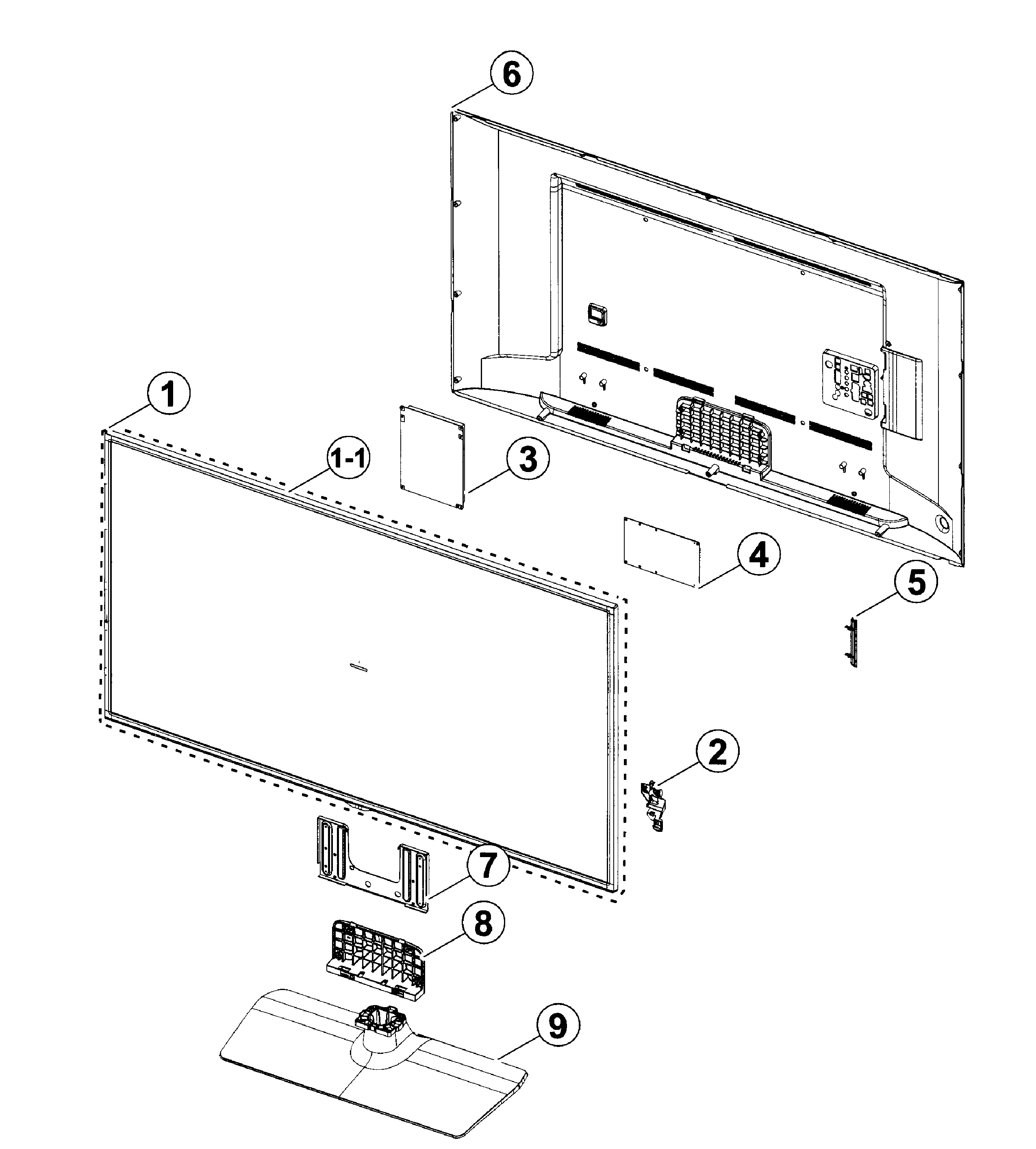

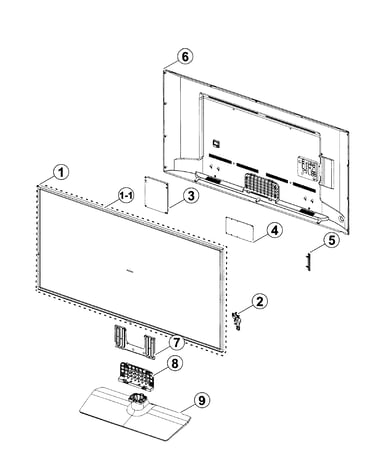

Main asy diagram

Lead connector

Part #BN39-01903N

The manufacturer no longer makes this part, and there's no substitute part

Television Screw 6003-001782
#NI

Main asy diagram

Television screw

Part #6003-001782

The manufacturer no longer makes this part, and there's no substitute part

Speaker-fr BN96-32113E
#NI

Main asy diagram

Speaker-fr

Part #BN96-32113E

The manufacturer no longer makes this part, and there's no substitute part

Brckt Wall BN61-07953A
#NI

Main asy diagram

Brckt wall

Part #BN61-07953A

The manufacturer no longer makes this part, and there's no substitute part

Television Screw 6001-002757
#NI

Main asy diagram

Television screw

Part #6001-002757

The manufacturer no longer makes this part, and there's no substitute part

Main Pcb BN94-10553A
#4

Main asy diagram

Main pcb

Part #BN94-10553A

The manufacturer no longer makes this part, and there's no substitute part

Ic Dc/dc C 1203-008118
#NI

Main asy diagram

Ic dc/dc c

Part #1203-008118

The manufacturer no longer makes this part, and there's no substitute part

Connector 3708-003073
#NI

Main asy diagram

Connector

Part #3708-003073

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit 1105-002529
#NI

Main asy diagram

Integrated circuit

Part #1105-002529

The manufacturer no longer makes this part, and there's no substitute part

Tuner-dtv BN40-00308A
#NI

Main asy diagram

Tuner-dtv

Part #BN40-00308A

The manufacturer no longer makes this part, and there's no substitute part
