Kenmore
Countertop Microwave

Model # 9119967910 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 9119967910 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

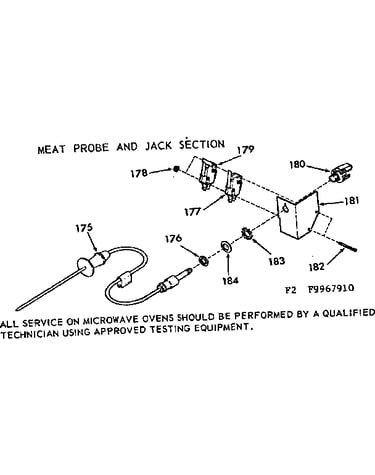

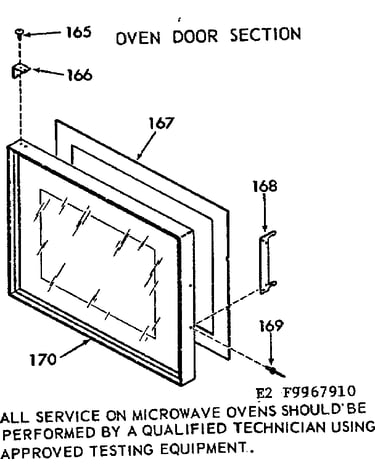

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 137 parts  |
Lamp Bulb STD372401
#156

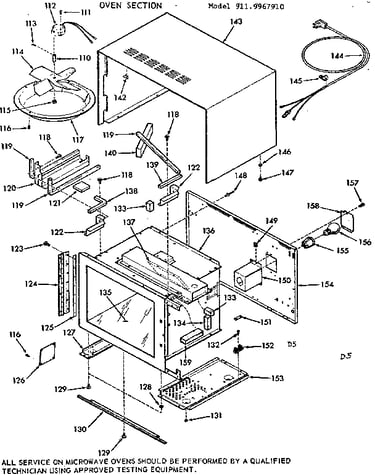

Oven section diagram

Lamp bulb

Part #STD372401

Replaced by #40A15

?
Manufacturer substitution
This part replaces STD372401. Substitute parts can look different from the original.
BEST SELLER
$14.40 |
12% OFF Phone Price : $16.40
In Stock
Gm Hex Nut 453284
#92

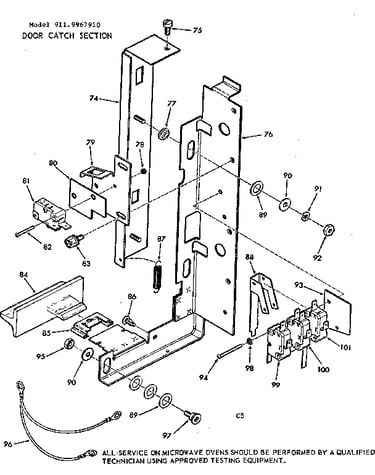

Door catch section diagram

Gm hex nut

Part #453284

Replaced by #WB1X1259

?
Manufacturer substitution
This part replaces 453284. Substitute parts can look different from the original.
$6.51 |
13% OFF Phone Price : $7.51
In Stock
Screw 295849
Screw

Part #295849

Replaced by #WB1X1130

?
Manufacturer substitution
This part replaces 295849. Substitute parts can look different from the original.
$7.88 |
11% OFF Phone Price : $8.88
In Stock
Screw 295850
Screw

Part #295850

Replaced by #WB1X1424D

?
Manufacturer substitution
This part replaces 295850. Substitute parts can look different from the original.
This item is not returnable
$6.14 |
14% OFF Phone Price : $7.14
In Stock
Push Button 310274
#5

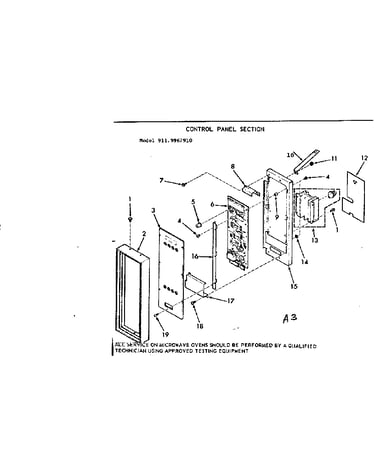

Control panel section diagram

Push button

Part #310274

Replaced by #318320

?
Manufacturer substitution
This part replaces 310274. Substitute parts can look different from the original.
$18.49
In Stock
Sealant M13D2
#135A

Oven section diagram

Sealant

Part #M13D2

Replaced by #RTV102

?
Manufacturer substitution
This part replaces M13D2. Substitute parts can look different from the original.
$17.98 |
10% OFF Phone Price : $19.98
In Stock
Rivet 281160
Rivet

Part #281160

Replaced by #WB1X1173

?
Manufacturer substitution
This part replaces 281160. Substitute parts can look different from the original.
This item is not returnable
$5.00
In Stock
Insulation 311140
#39

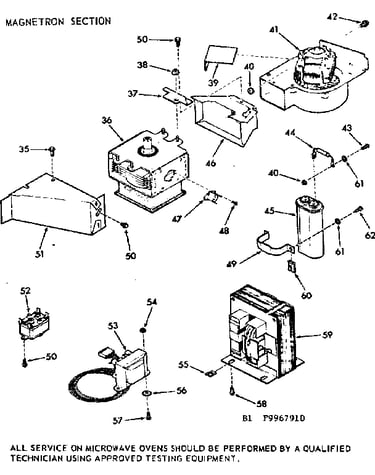

Magnetron section diagram

Insulation

Part #311140

The manufacturer no longer makes this part, and there's no substitute part

Wire Harness 311011
#190C

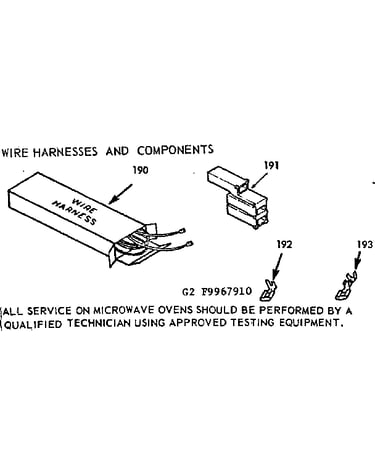

Wire harnesses and components diagram

Wire harness

Part #311011

The manufacturer no longer makes this part, and there's no substitute part

Holder 307245
#191

Wire harnesses and components diagram

Holder

Part #307245

The manufacturer no longer makes this part, and there's no substitute part
