Model # N9MP2100F14C2 Official ICP 90+ single-stage gas furnace

Here are the diagrams and repair parts for Official ICP N9MP2100F14C2 90+ single-stage gas furnace, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |
Furnace Inducer Vent Motor Assembly (replaces 1014338) 1172823
#11

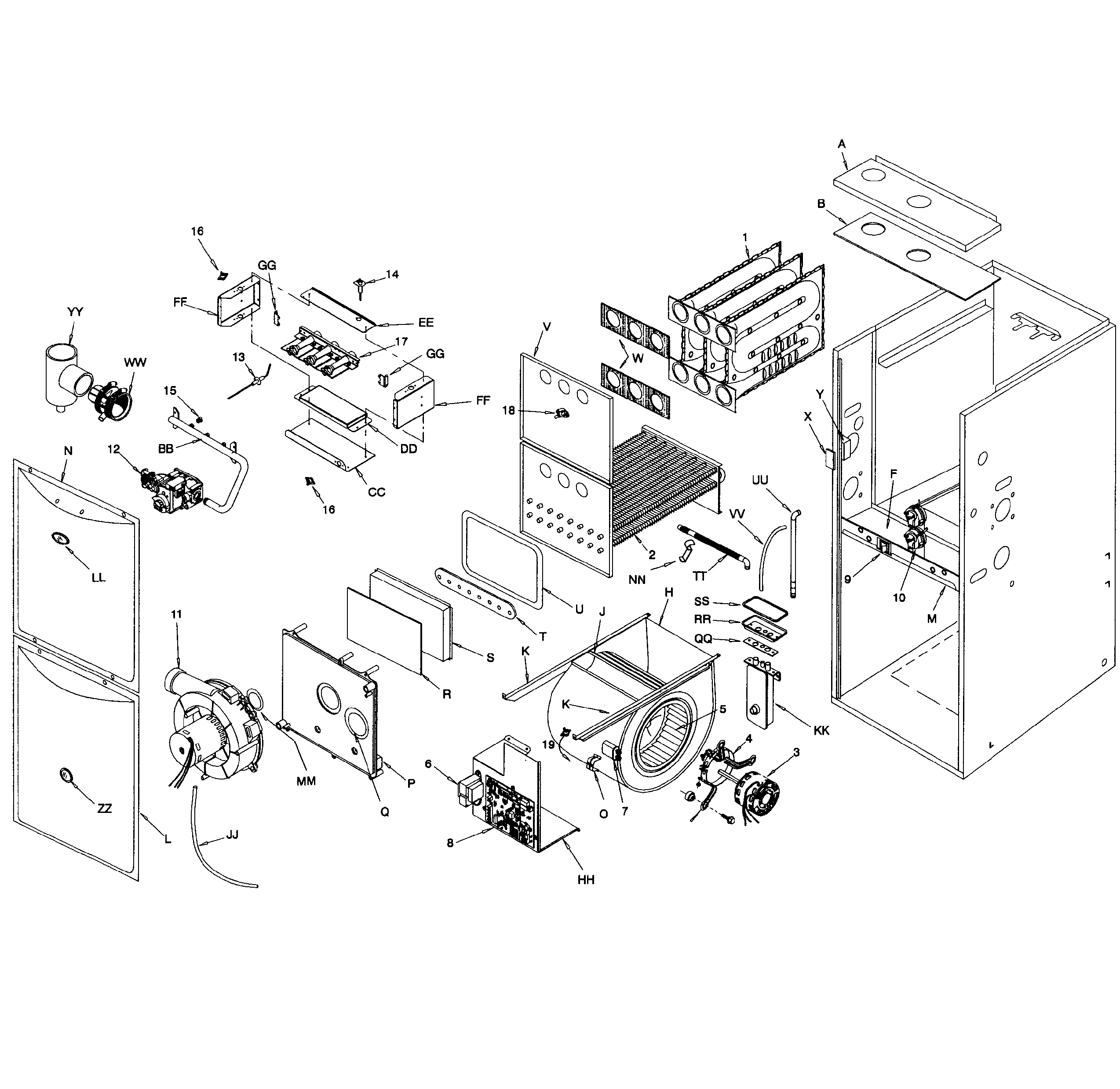

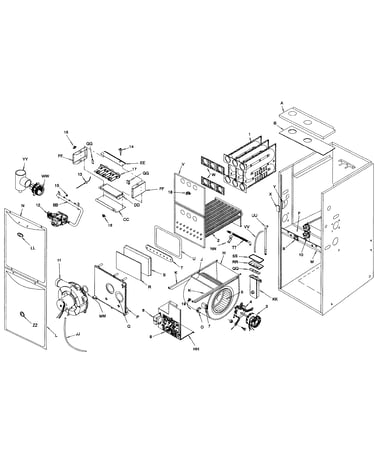

Furnace diagram

Furnace inducer vent motor assembly (replaces 1014338)

Part #1172823

$214.67 |
5% OFF Phone Price : $226.67
In Stock
Furnace Electronic Control Board 1172550
#8

Furnace diagram

Furnace electronic control board

Part #1172550

$269.24 |
$12.00 OFF Phone Price : $281.24
In Stock
Bottom Burner Box 1172848
#CC

Furnace diagram

Bottom burner box

Part #1172848

$315.62
In Stock
Connector 1171998
#NI

Furnace diagram

Connector

Part #1171998

This item is not returnable
$3.54
In Stock
Drain Tube 1171994
#NI

Furnace diagram

Drain tube

Part #1171994

This item is not returnable
$7.17
In Stock
Furnace Blower Fan Housing Hanger Bracket 1012328
#K

Furnace diagram

Furnace blower fan housing hanger bracket

Part #1012328

$301.63 |
$12.00 OFF Phone Price : $313.63
In Stock
Furnace Drain Trap 1171917
#KK

Furnace diagram

Furnace drain trap

Part #1171917

$49.16
In Stock
Furnace Burner Flame Sensor 1172827
#13

Furnace diagram

Furnace burner flame sensor

Part #1172827

$14.96 |
12% OFF Phone Price : $16.96
In Stock
Retainer Clip 1175788
#NN

Furnace diagram

Retainer clip

Part #1175788

$316.22
In Stock
Gasket 1012594
#U

Furnace diagram

Gasket

Part #1012594

$20.83
In Stock
