Countertop Microwave

Model # PEM31FM1DS Official GE microwave

Here are the diagrams and repair parts for Official GE PEM31FM1DS microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

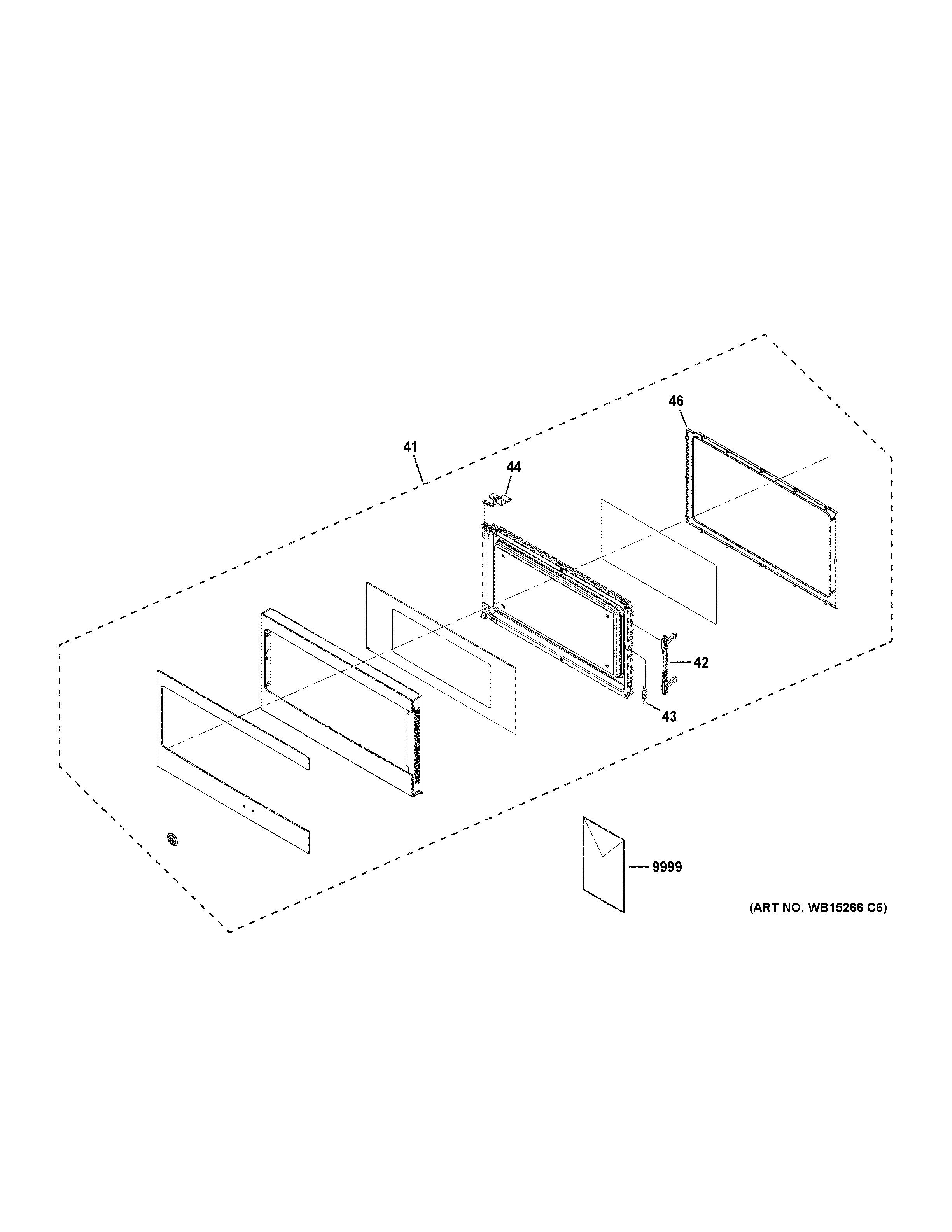

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 52 parts  |
Microwave Door Interlock Switch Bracket WB14X10049
#24

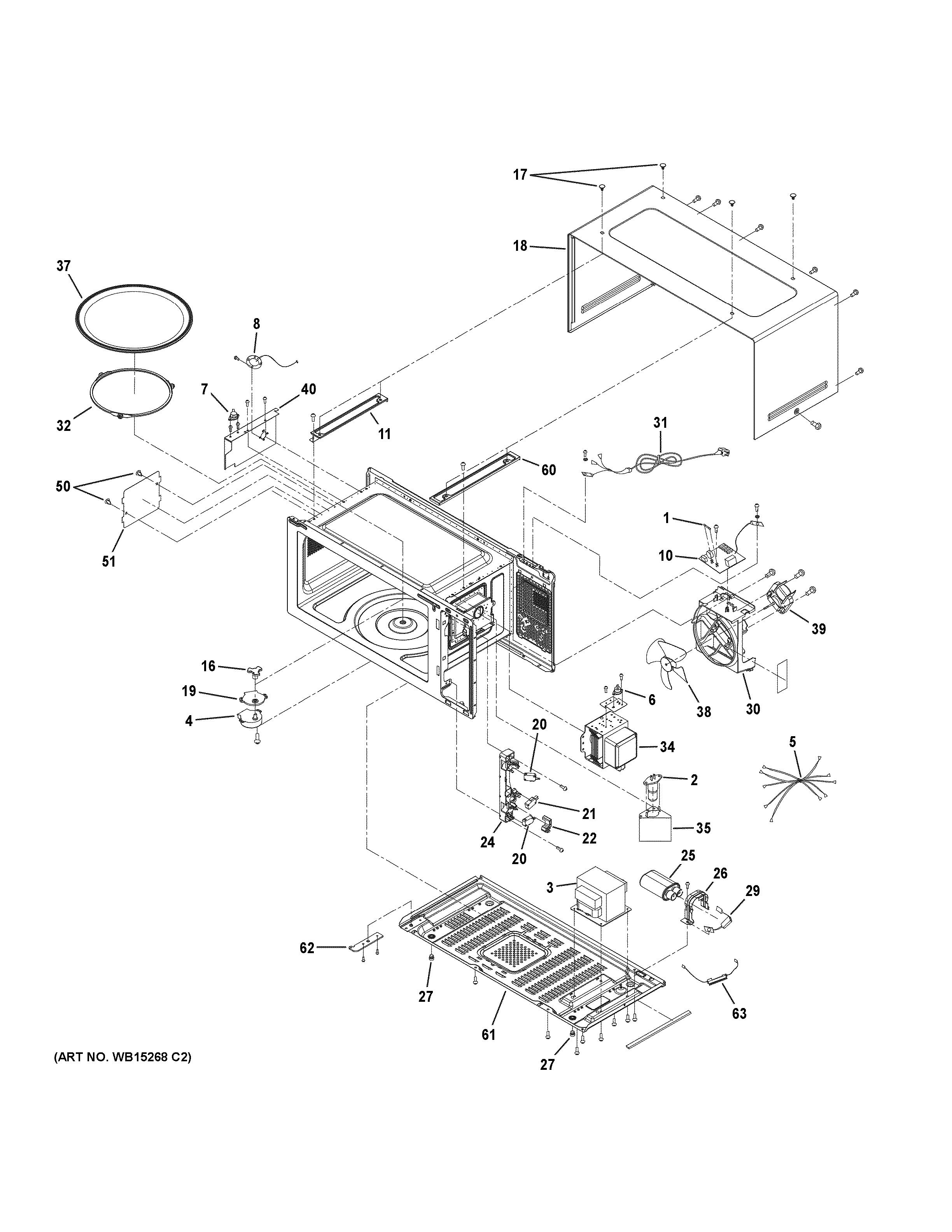

Oven cavity parts diagram

Microwave door interlock switch bracket

Part #WB14X10049

BEST SELLER
$39.59 |
13% OFF Phone Price : $45.59
In Stock
Microwave Waveguide Cover WB39X10034
#51

Oven cavity parts diagram

Microwave waveguide cover

Part #WB39X10034

BEST SELLER
This item is not returnable
$13.79 |
13% OFF Phone Price : $15.79
In Stock
Microwave High-voltage Diode WB27X10849
#29

Oven cavity parts diagram

Microwave high-voltage diode

Part #WB27X10849

Replaced by #WB26X28935

?
Manufacturer substitution
This part replaces WB27X10849. Substitute parts can look different from the original.
BEST SELLER
$50.11 |
11% OFF Phone Price : $56.11
In Stock
Lever Switch WB06X10864
#22

Oven cavity parts diagram

Lever switch

Part #WB06X10864

Replaced by #WB10X27080

?
Manufacturer substitution
This part replaces WB06X10864. Substitute parts can look different from the original.
$29.82 |
17% OFF Phone Price : $35.82
In Stock
Micro-switch WB02X21314
#21

Oven cavity parts diagram

Micro-switch

Part #WB02X21314

$98.39 |
11% OFF Phone Price : $110.39
In Stock
Tray Motor WB26X10252
#4

Oven cavity parts diagram

Tray motor

Part #WB26X10252

$60.91
In Stock
Microwave Thermostat WB20X10056
#7

Oven cavity parts diagram

Microwave thermostat

Part #WB20X10056

$24.98 |
19% OFF Phone Price : $30.98
In Stock
Lever WB10X27075
#15

Control parts diagram

Lever

Part #WB10X27075

$9.32 |
10% OFF Phone Price : $10.32
In Stock
Microwave High-voltage Capacitor WB24X21272
#25

Oven cavity parts diagram

Microwave high-voltage capacitor

Part #WB24X21272

$98.39 |
11% OFF Phone Price : $110.39
In Stock
Tt Couper WB02X29702
#16

Oven cavity parts diagram

Tt couper

Part #WB02X29702

This item is not returnable
$6.31 |
14% OFF Phone Price : $7.31
In Stock
