Frigidaire
Room Air Conditioner

Model # CRA09EPT114 Official Frigidaire room air conditioner

Here are the diagrams and repair parts for Official Frigidaire CRA09EPT114 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

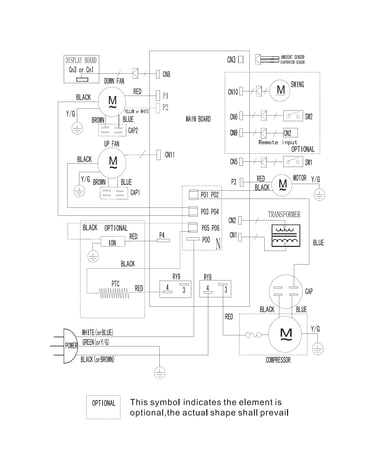

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 90 parts  |
Room Air Conditioner Hose-to-window Adapter 5304479274
#89

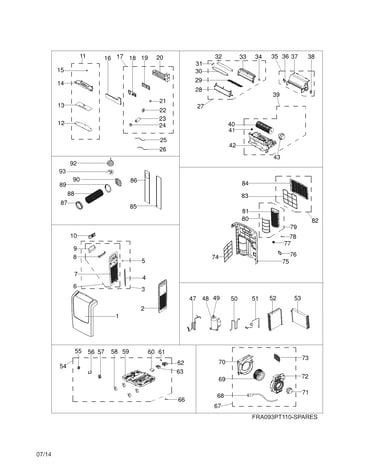

Recommended spare parts diagram

Room air conditioner hose-to-window adapter

Part #5304479274

$29.38 |
17% OFF Phone Price : $35.38
In Stock
Plug 5304479260
#66

Recommended spare parts diagram

Plug

Part #5304479260

$14.69
In Stock
Room Air Conditioner Exhaust Hose 5304479273
#88

Recommended spare parts diagram

Room air conditioner exhaust hose

Part #5304479273

$109.28 |
10% OFF Phone Price : $121.28
In Stock
Room Air Conditioner Compressor Capacitor 5304473968
#23

Recommended spare parts diagram

Room air conditioner compressor capacitor

Part #5304473968

$98.53
In Stock
Room Air Conditioner Drain Plug 5304473999
#78

Recommended spare parts diagram

Room air conditioner drain plug

Part #5304473999

This item is not returnable
$12.51 |
14% OFF Phone Price : $14.51
In Stock
Tube 5304492151
#50

Recommended spare parts diagram

Tube

Part #5304492151

$31.90
In Stock
Thermistor 5304483216
#26

Recommended spare parts diagram

Thermistor

Part #5304483216

$23.93
In Stock
Evaporator 5304492153
#53

Recommended spare parts diagram

Evaporator

Part #5304492153

$105.79 |
10% OFF Phone Price : $117.79
In Stock
Remote Control 5304479323
#10

Recommended spare parts diagram

Remote control

Part #5304479323

$165.02
In Stock
Motor Capacitor 5304484402
#21

Recommended spare parts diagram

Motor capacitor

Part #5304484402

The manufacturer no longer makes this part, and there's no substitute part
