Model # AMC2206BAW Official Amana microwave

Here are the diagrams and repair parts for Official Amana AMC2206BAW microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 48 parts  |
Diode DE91-70063D
#19

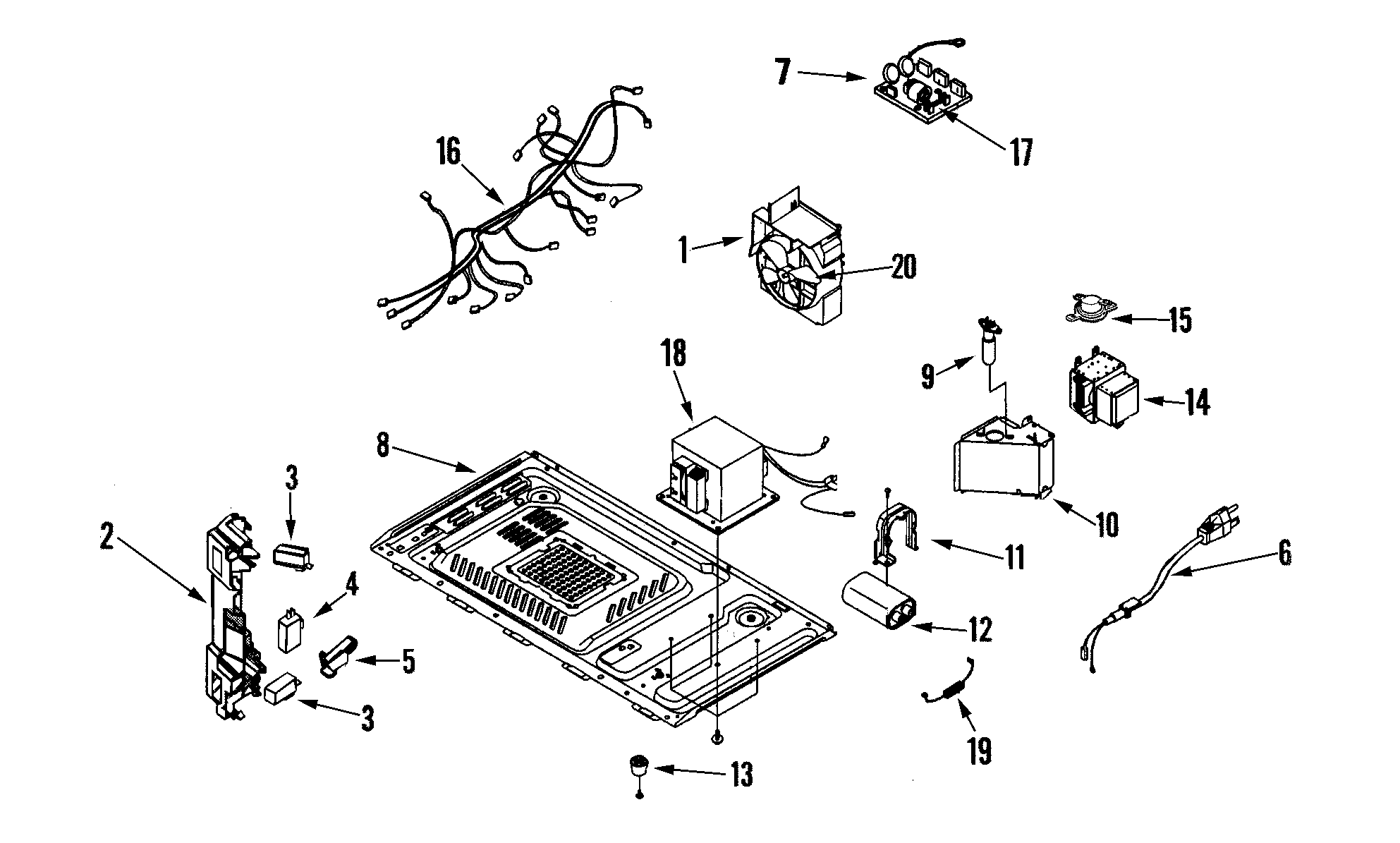

Internal controls/latch asy./base diagram

Diode

Part #DE91-70063D

Replaced by #DE91-70063D

?
Manufacturer substitution
This part replaces DE91-70063D. Substitute parts can look different from the original.
BEST SELLER
$17.40 |
10% OFF Phone Price : $19.40
In Stock
Switch 3405-001033
#4

Internal controls/latch asy./base diagram

Switch

Part #3405-001033

Replaced by #DE34-20019A

?
Manufacturer substitution
This part replaces 3405-001033. Substitute parts can look different from the original.
This item is not returnable
$15.06 |
12% OFF Phone Price : $17.06
In Stock
Microwave Glass Turntable Tray DE74-20002C
#1

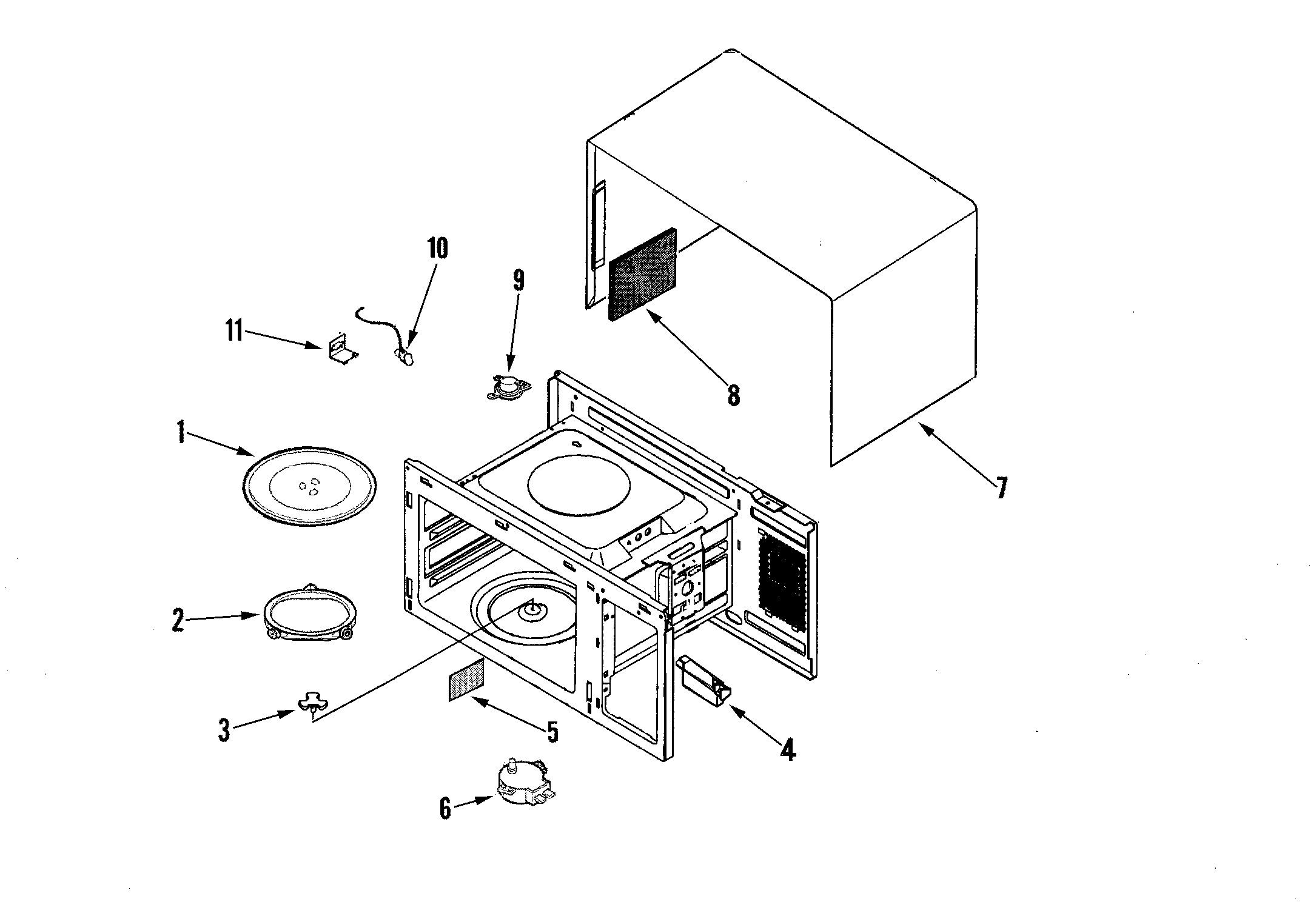

Body/cavity diagram

Microwave glass turntable tray

Part #DE74-20002C

Replaced by #DE74-00023A

?
Manufacturer substitution
This part replaces DE74-20002C. Substitute parts can look different from the original.
$68.55 |
8% OFF Phone Price : $74.55
In Stock
Microwave Thermostat DE47-20030A
#15

Internal controls/latch asy./base diagram

Microwave thermostat

Part #DE47-20030A

This item is not returnable
$12.40 |
14% OFF Phone Price : $14.40
In Stock
Window DE67-40179A
#6

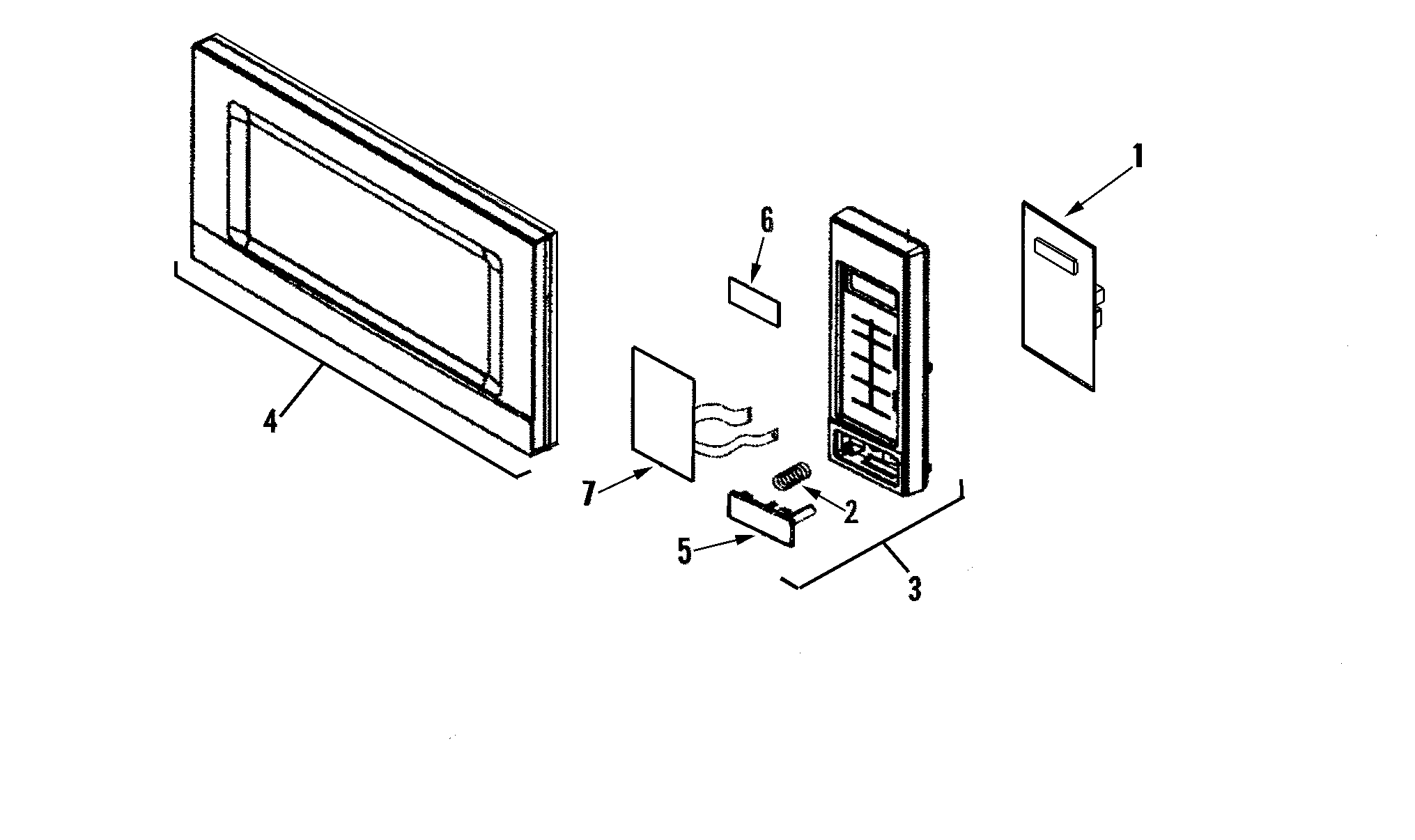

Control panel/door assembly diagram

Window

Part #DE67-40179A

This item is not returnable
$2.72 |
27% OFF Phone Price : $3.72
In Stock
Filter DE96-00399B
#7

Internal controls/latch asy./base diagram

Filter

Part #DE96-00399B

Replaced by #DE96-00400A

?
Manufacturer substitution
This part replaces DE96-00399B. Substitute parts can look different from the original.
$55.23 |
10% OFF Phone Price : $61.23
In Stock
Fan Blade DE31-90051A
#20

Internal controls/latch asy./base diagram

Fan blade

Part #DE31-90051A

Replaced by #DE31-90051A

?
Manufacturer substitution
This part replaces DE31-90051A. Substitute parts can look different from the original.
This item is not returnable
$5.46
In Stock
Transformer DE26-00061B
#18

Internal controls/latch asy./base diagram

Transformer

Part #DE26-00061B

Replaced by #DE26-00061B

?
Manufacturer substitution
This part replaces DE26-00061B. Substitute parts can look different from the original.
$184.67 |
6% OFF Phone Price : $196.67
In Stock
Microwave Fuse 3601-001198
#17

Internal controls/latch asy./base diagram

Microwave fuse

Part #3601-001198

Replaced by #WPM0805101

?
Manufacturer substitution
This part replaces 3601-001198. Substitute parts can look different from the original.
$6.68 |
13% OFF Phone Price : $7.68
In Stock
Microwave Magnetron W10126794
#14

Internal controls/latch asy./base diagram

Microwave magnetron

Part #W10126794

Replaced by #WPW10126794

?
Manufacturer substitution
This part replaces W10126794. Substitute parts can look different from the original.
$157.33 |
7% OFF Phone Price : $169.33
In Stock
