Amana
Electric Cooktop

Model # CAK2T30E2-P1131597NE Official Amana electric cooktop

Here are the diagrams and repair parts for Official Amana CAK2T30E2-P1131597NE electric cooktop, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 41 parts  |
Cleaner, Coo 0314274
#999I

Miscellaeous information diagram

Cleaner, coo

Part #0314274

Replaced by #W10355051

?
Manufacturer substitution
This part replaces 0314274. Substitute parts can look different from the original.
BEST SELLER
This item is not returnable

Get free shipping with Automatic Reorder

$10.89 |
16% OFF Phone Price : $12.89
In Stock
Element, Dua 31852001
#20

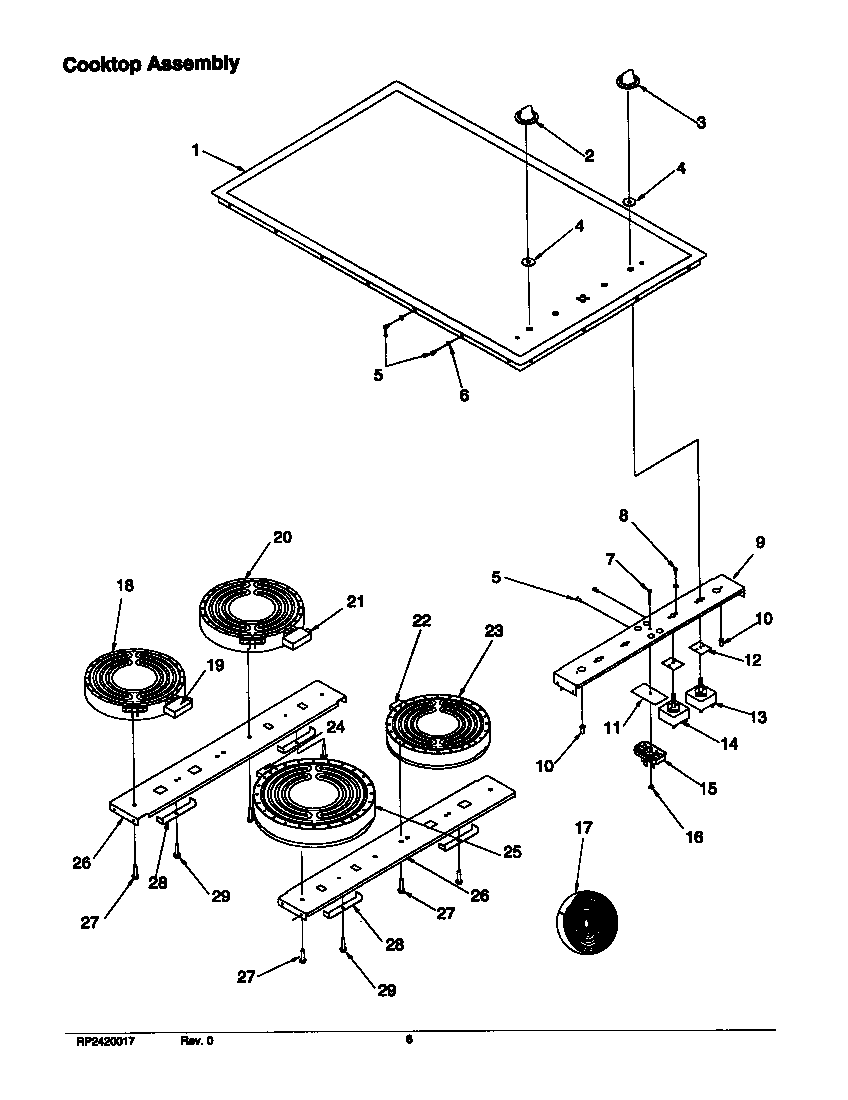

Cooktop assy diagram

Element, dua

Part #31852001

Replaced by #W10823726

?
Manufacturer substitution
This part replaces 31852001. Substitute parts can look different from the original.
$128.56 |
9% OFF Phone Price : $140.56
In Stock
Screw M0216703
#99

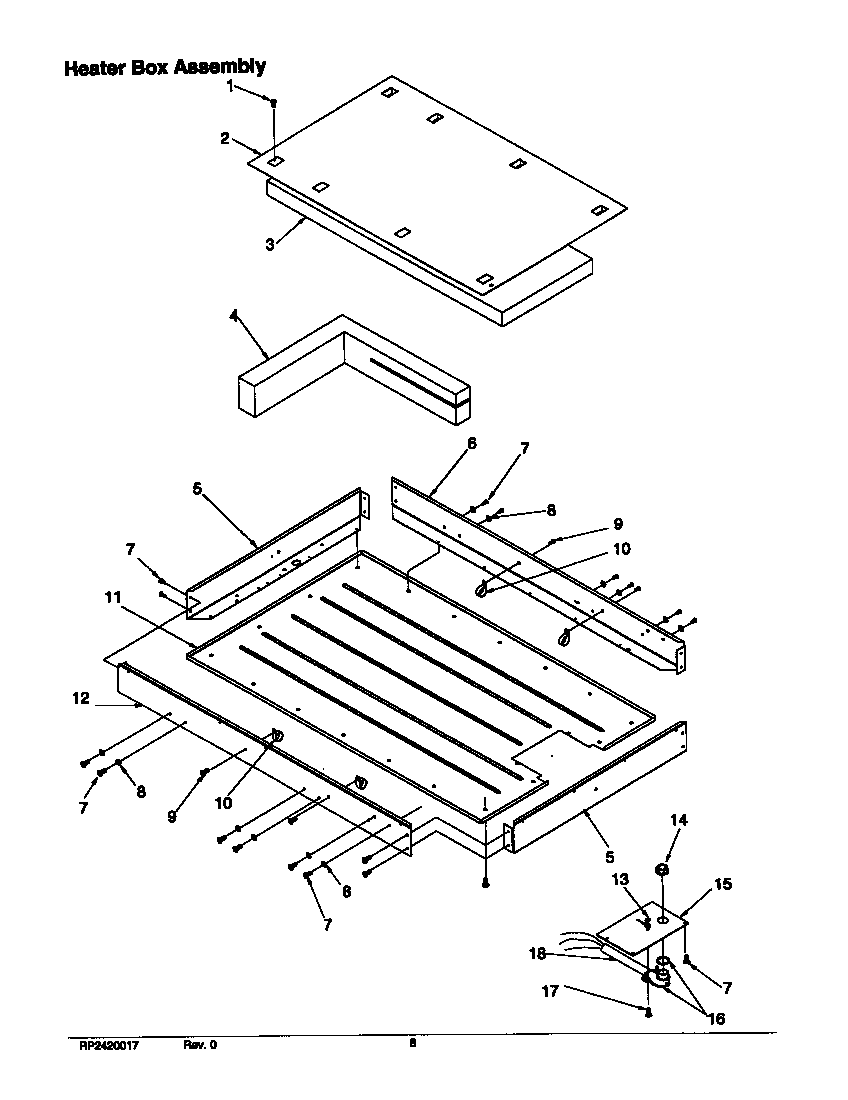

Heater box assy diagram

Screw

Part #M0216703

This item is not returnable
$3.40
In Stock
Rib Element 31794601
#23

Cooktop assy diagram

Rib element

Part #31794601

Replaced by #W10823699

?
Manufacturer substitution
This part replaces 31794601. Substitute parts can look different from the original.
$72.35 |
8% OFF Phone Price : $78.35
In Stock
Screw, #8-18 31750410
Screw, #8-18

Part #31750410

The manufacturer no longer makes this part, and there's no substitute part

Screw, #8-18 31750431
Screw, #8-18

Part #31750431

Replaced by #W11233072

?
Manufacturer substitution
This part replaces 31750431. Substitute parts can look different from the original.
$16.79 |
11% OFF Phone Price : $18.79
In Stock
Cooktop Burner Control Knob 31760601B
#2

Cooktop assy diagram

Cooktop burner control knob

Part #31760601B

Replaced by #WP31760601B

?
Manufacturer substitution
This part replaces 31760601B. Substitute parts can look different from the original.
$38.84
In Stock
Rib Element 31794501
#25

Cooktop assy diagram

Rib element

Part #31794501

Replaced by #W10823710

?
Manufacturer substitution
This part replaces 31794501. Substitute parts can look different from the original.
$156.59 |
7% OFF Phone Price : $168.59
In Stock
Insulation 0307480
#3

Heater box assy diagram

Insulation

Part #0307480

The manufacturer no longer makes this part, and there's no substitute part

Screw 31750715
Screw

Part #31750715

The manufacturer no longer makes this part, and there's no substitute part
