Craftsman
Lawn & Garden Engine

Model # 14320100 Official Craftsman 4-cycle gas engine

Here are the diagrams and repair parts for Official Craftsman 14320100 4-cycle gas engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 225 parts  |

Drain Plug 26748
#35

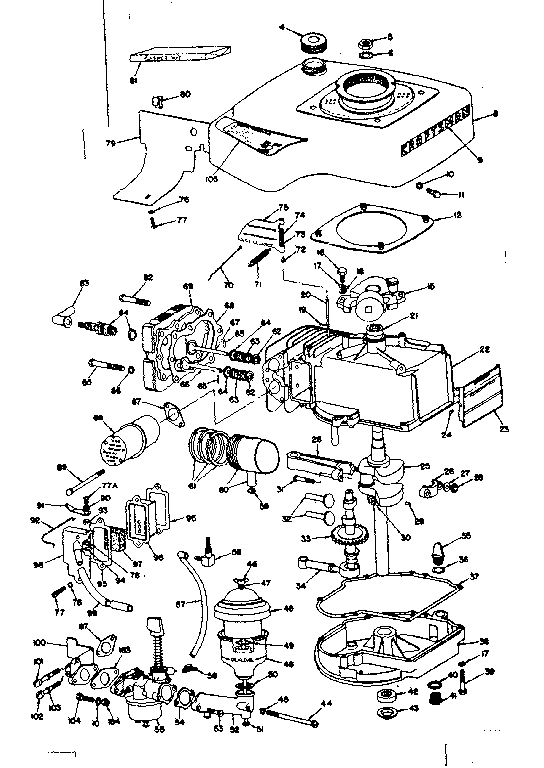

Basic engine diagram

Drain plug

Part #26748

The manufacturer no longer makes this part, and there's no substitute part

Ring 20381
#59

Basic engine diagram

Ring

Part #20381

The manufacturer no longer makes this part, and there's no substitute part

/carb Float 27105
#173

Carburetor complete diagram

/carb float

Part #27105

The manufacturer no longer makes this part, and there's no substitute part

Int Valve 27602
#67B

Basic engine diagram

Int valve

Part #27602

The manufacturer no longer makes this part, and there's no substitute part

Pistn/pin 27062
#60C

Basic engine diagram

Pistn/pin

Part #27062

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27245
#40

Basic engine diagram

Gasket

Part #27245

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27554
#176

Carburetor complete diagram

Gasket

Part #27554

The manufacturer no longer makes this part, and there's no substitute part

Gasket 27234
#95

Basic engine diagram

Gasket

Part #27234

The manufacturer no longer makes this part, and there's no substitute part

Bushing 27258
#93

Basic engine diagram

Bushing

Part #27258

The manufacturer no longer makes this part, and there's no substitute part

Plug Cover 27276
#83

Basic engine diagram

Plug cover

Part #27276

The manufacturer no longer makes this part, and there's no substitute part
