Model # MVHQ096ME2CA1 Official GE air-conditioner/heat pump

Here are the diagrams and repair parts for Official GE MVHQ096ME2CA1 air-conditioner/heat pump, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

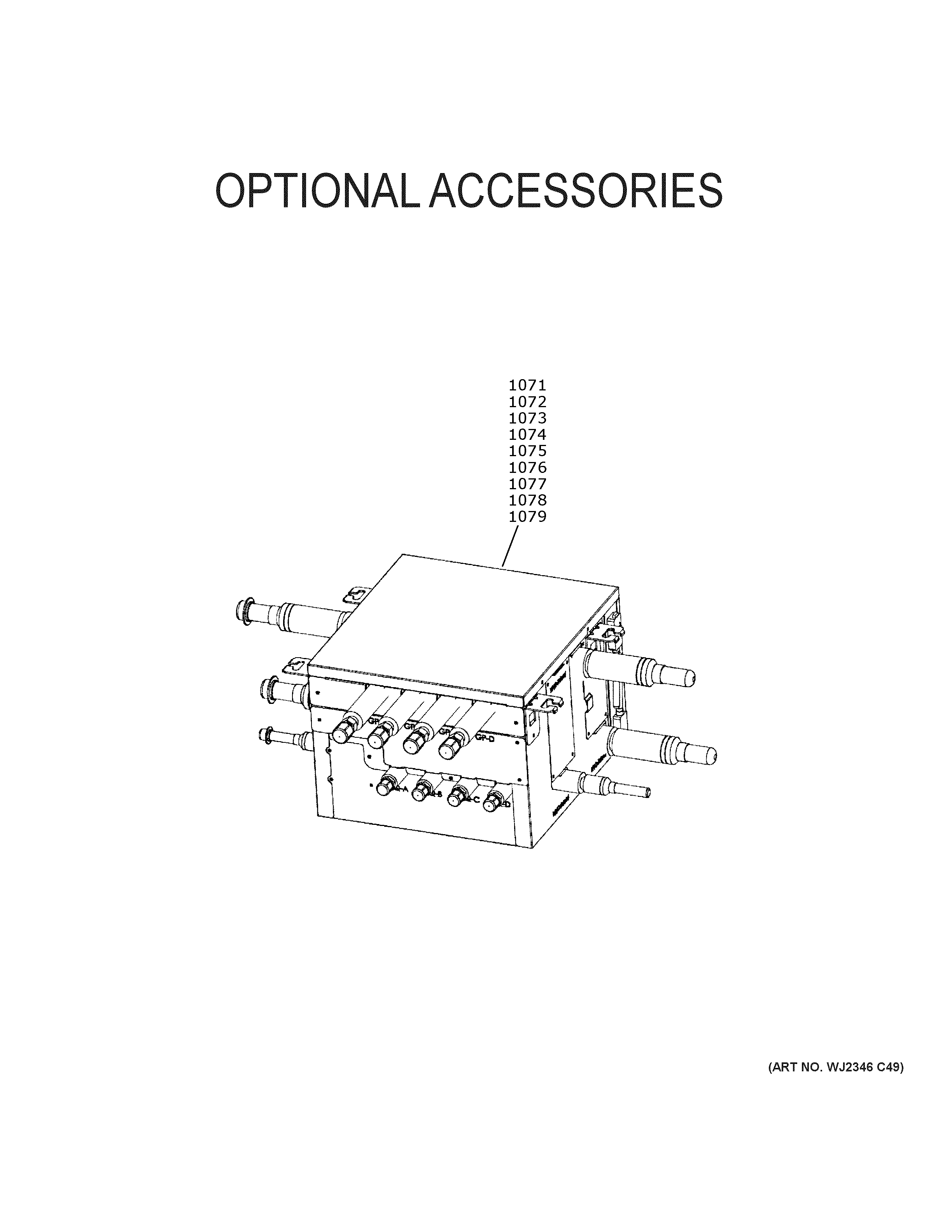

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 104 parts  |
Sensor Clip WP65X26751
#20

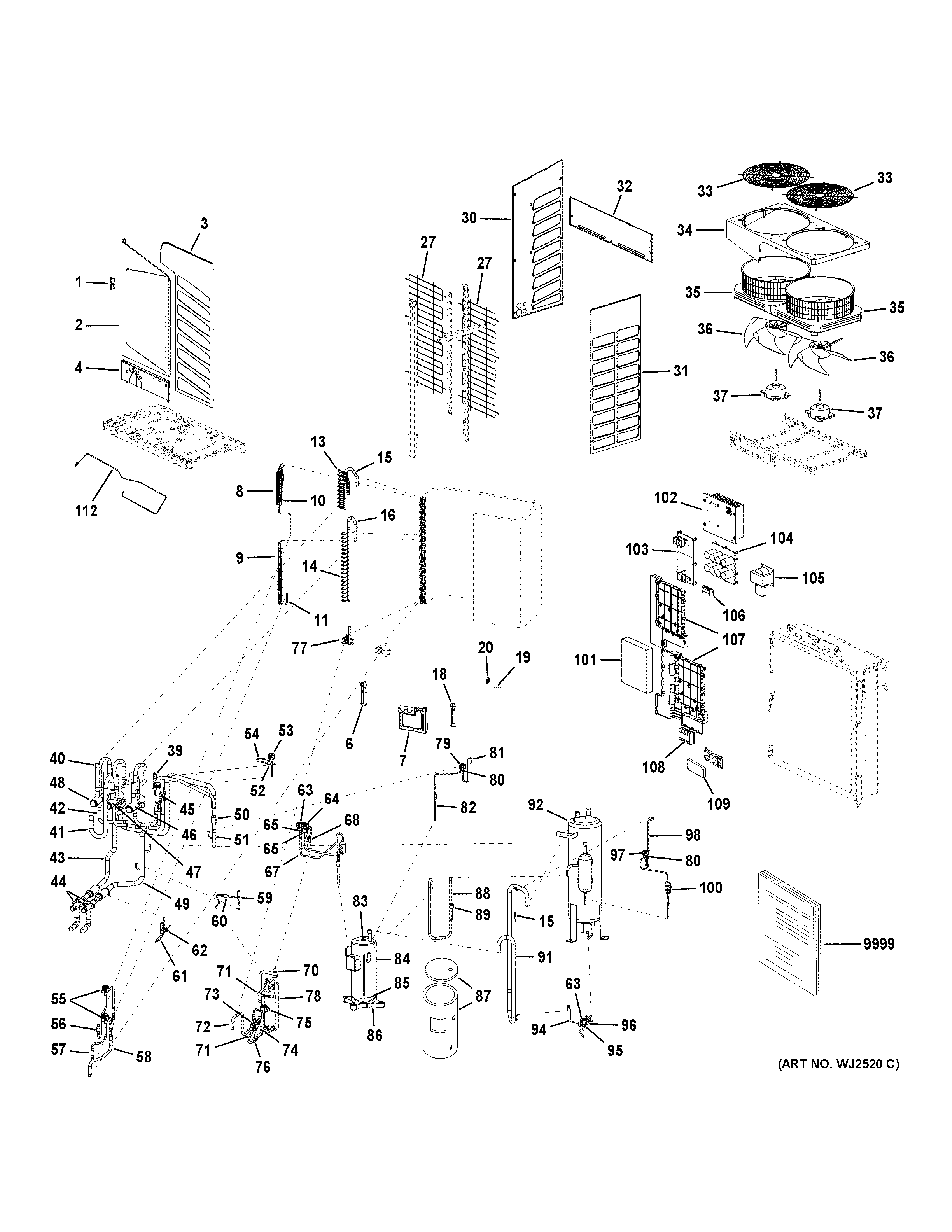

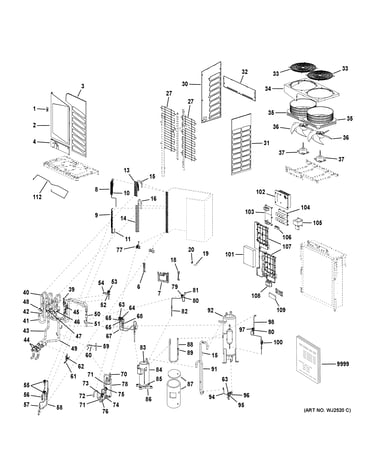

Room air conditioner diagram

Sensor clip

Part #WP65X26751

$8.26
In Stock
Unloading Valve Connection Tube WP53X27080
#60

Room air conditioner diagram

Unloading valve connection tube

Part #WP53X27080

$19.14
In Stock
Solenoid Valve Body WP26X26958
#65

Room air conditioner diagram

Solenoid valve body

Part #WP26X26958

$8.26
In Stock
Service Panel WP71X26743
#2

Room air conditioner diagram

Service panel

Part #WP71X26743

$158.92
In Stock
Check Valve WP26X26977
#50

Room air conditioner diagram

Check valve

Part #WP26X26977

$52.11
In Stock
Tsci Sensor WP26X26973
#74

Room air conditioner diagram

Tsci sensor

Part #WP26X26973

$11.23
In Stock
Sv9 To Reversing Valve Connection Tube WP53X26995
#82

Room air conditioner diagram

Sv9 to reversing valve connection tube

Part #WP53X26995

$10.23
In Stock
Td Sensor WP26X26971
#83

Room air conditioner diagram

Td sensor

Part #WP26X26971

$10.89
In Stock
Inverter Assembly WP26X26111
#102

Room air conditioner diagram

Inverter assembly

Part #WP26X26111

$779.82
In Stock
Back Guard WP71X26745
#32

Room air conditioner diagram

Back guard

Part #WP71X26745

$53.38
In Stock
