Frigidaire
Electric Wall Oven

Model # PLEB30S8CCC Official Frigidaire electric oven

Here are the diagrams and repair parts for Official Frigidaire PLEB30S8CCC electric oven, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Installation guide
Error Codes

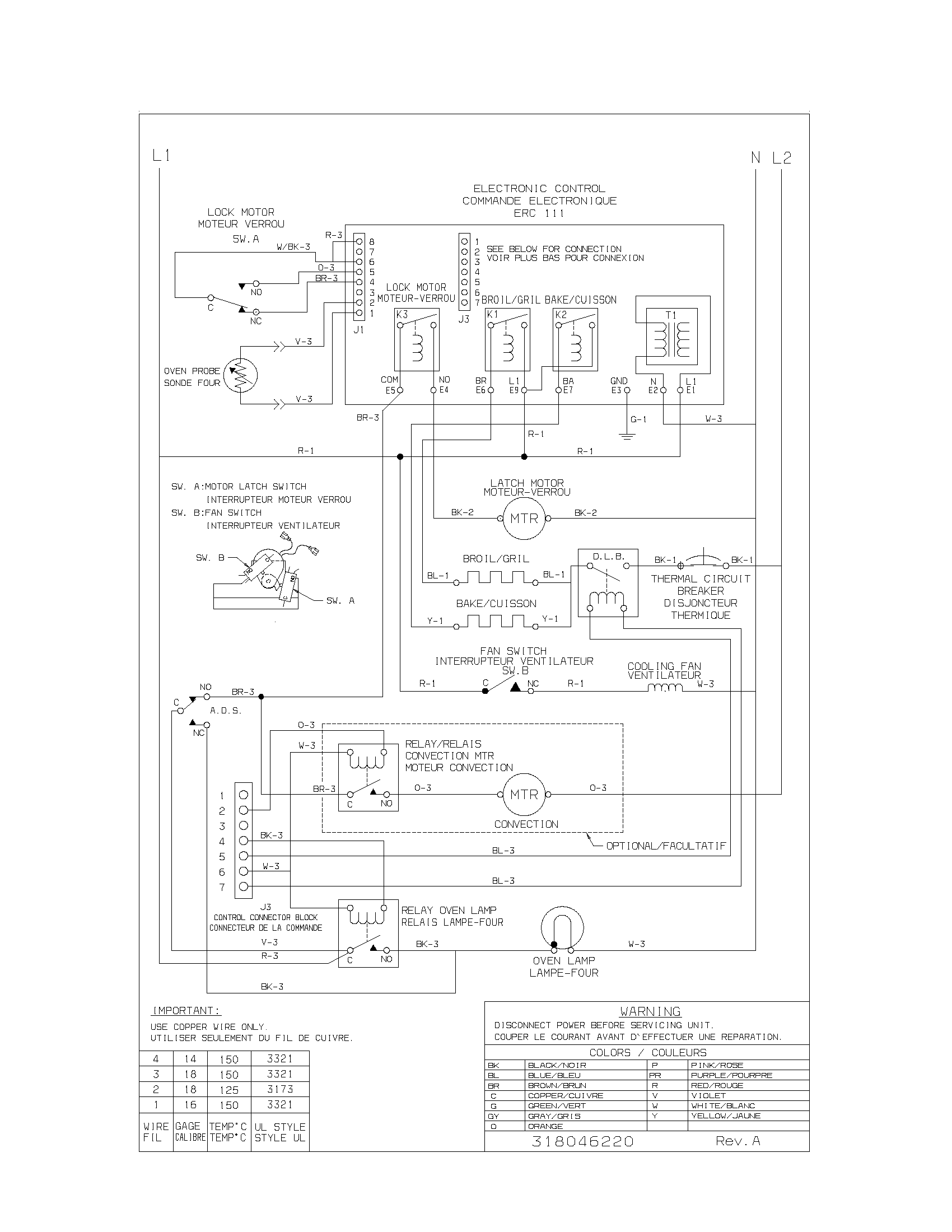

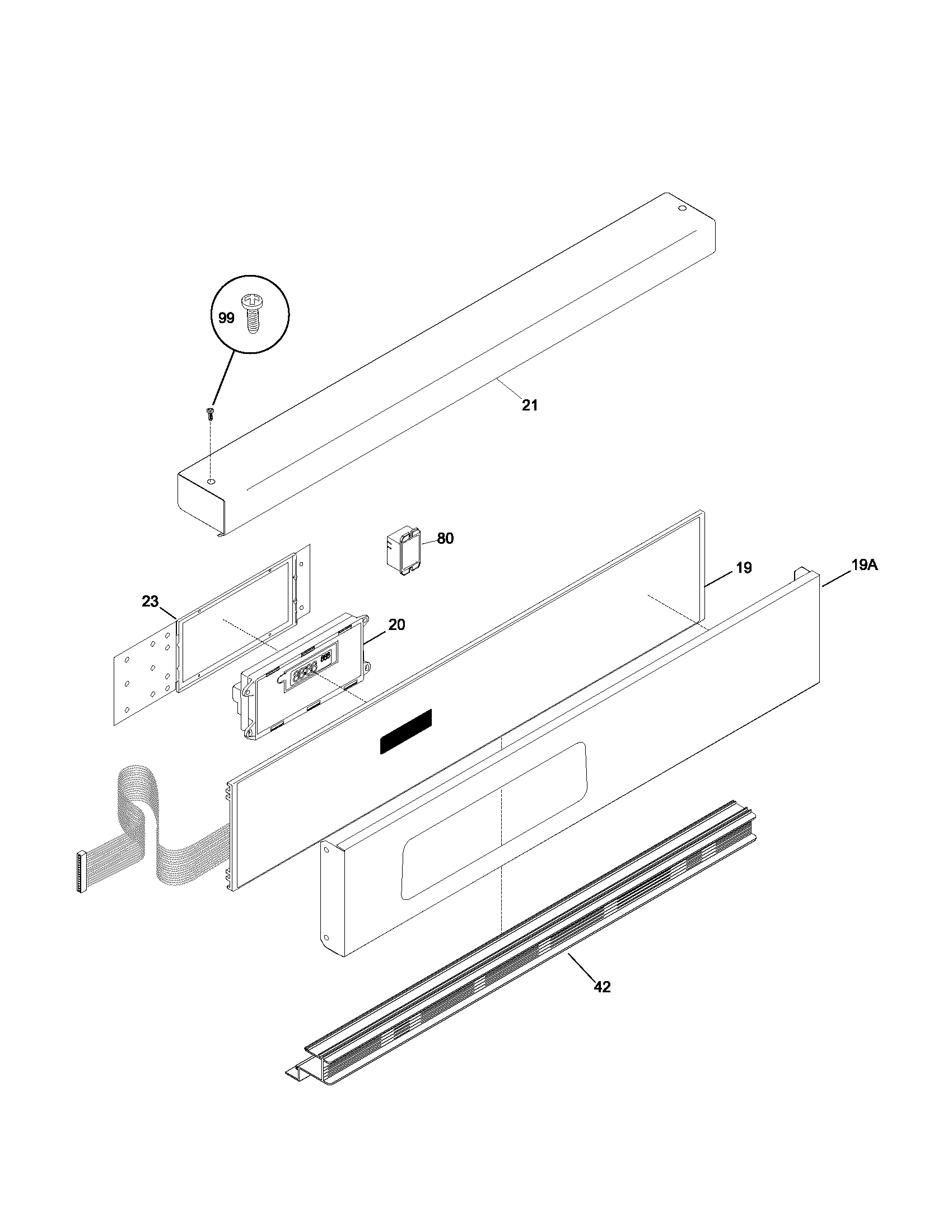

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Range Oven Light Bulb 5303013071
#15

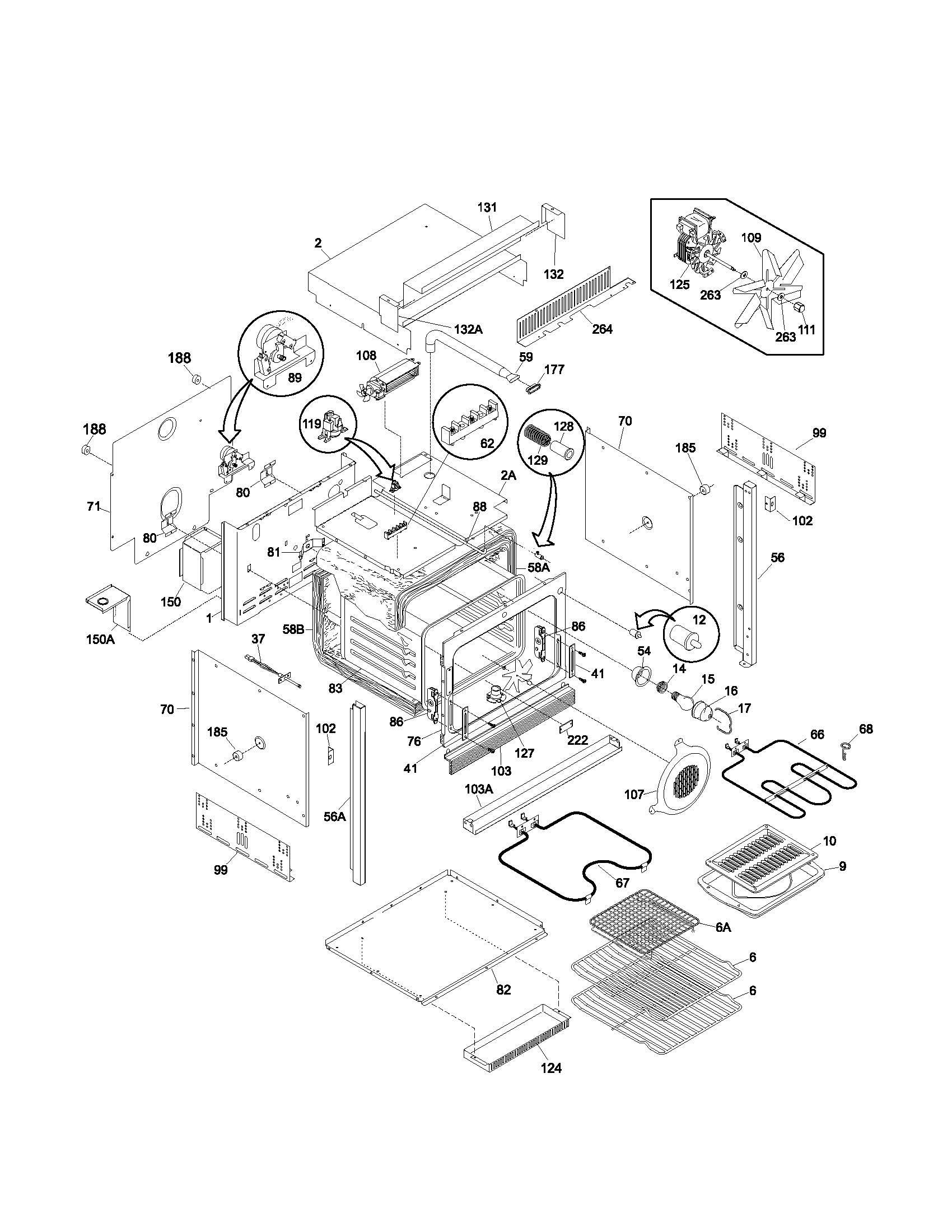

Body diagram

Range oven light bulb

Part #5303013071

Replaced by #316538904

?
Manufacturer substitution
This part replaces 5303013071. Substitute parts can look different from the original.
BEST SELLER
$15.20 |
12% OFF Phone Price : $17.20
In Stock
Range Oven Temperature Sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002) 316217002
#37

Body diagram

Range oven temperature sensor (replaces 316111203, 318198500, 318198510, 318198520, 7316217002)

Part #316217002

BEST SELLER
$44.86 |
12% OFF Phone Price : $50.86
In Stock
Washer 316136500
#263

Body diagram

Washer

Part #316136500

Replaced by #316008401

?
Manufacturer substitution
This part replaces 316136500. Substitute parts can look different from the original.
BEST SELLER
$12.32 |
14% OFF Phone Price : $14.32
In Stock
Oven Switch 318089913
#12

Body diagram

Oven switch

Part #318089913

Replaced by #318394803

?
Manufacturer substitution
This part replaces 318089913. Substitute parts can look different from the original.
$35.19 |
15% OFF Phone Price : $41.19
In Stock
Range Oven Door Seal (replaces 318253001, 318253002) 318053103
#12

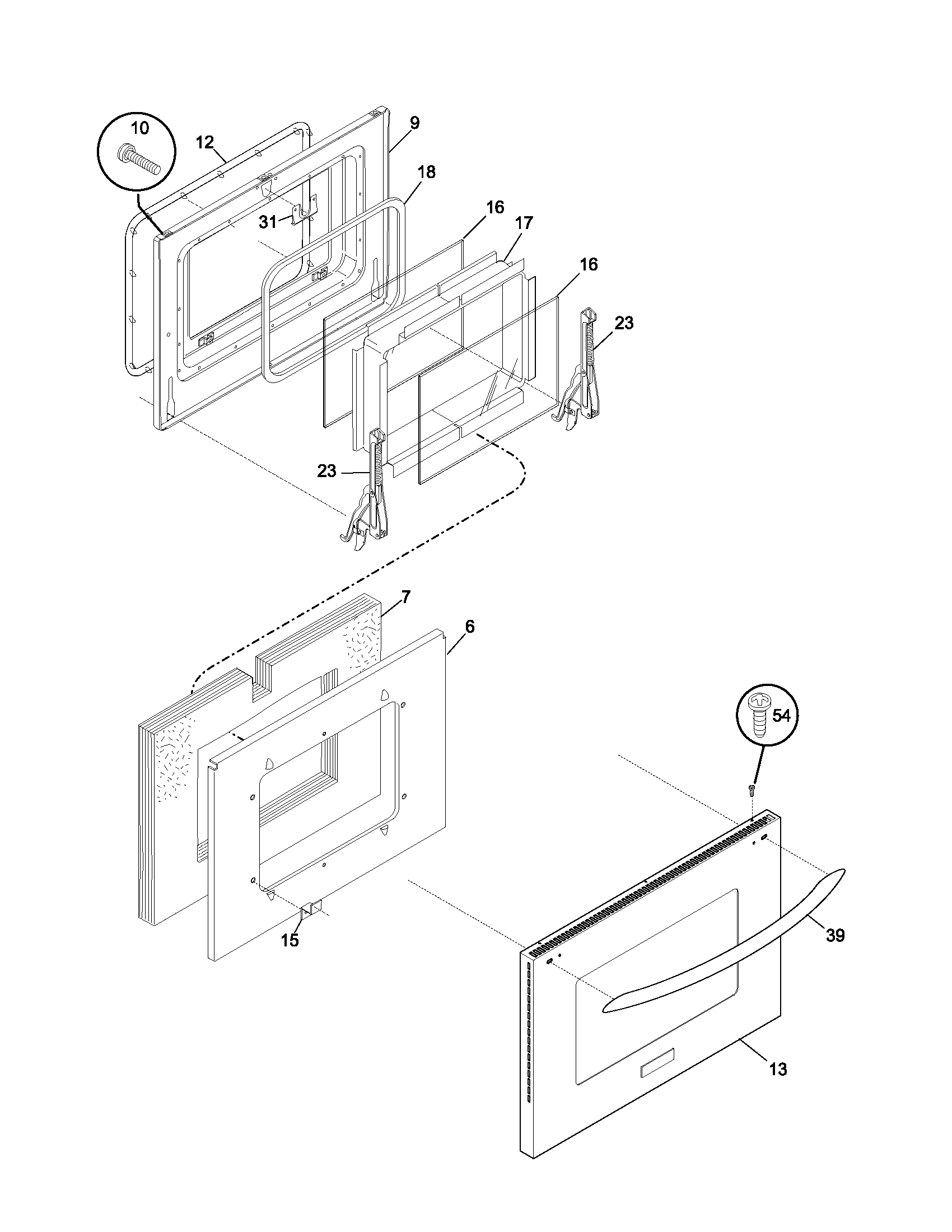

Door diagram

Range oven door seal (replaces 318253001, 318253002)

Part #318053103

$103.39 |
10% OFF Phone Price : $115.39
In Stock
Wall Oven Broil Element Support Hanger 5304403015
#68

Body diagram

Wall oven broil element support hanger

Part #5304403015

$26.80 |
18% OFF Phone Price : $32.80
In Stock
Range Screw 5303311174
#10

Door diagram

Range screw

Part #5303311174

This item is not returnable
$16.46 |
11% OFF Phone Price : $18.46
In Stock
Gibson Wall Oven Screw, 6 X 3/8-in 3201861
Gibson wall oven screw, 6 x 3/8-in

Part #3201861

This item is not returnable
$2.16
In Stock
Adapter Assembly 5303310542
#127

Body diagram

Adapter assembly

Part #5303310542

Replaced by #318317100

?
Manufacturer substitution
This part replaces 5303310542. Substitute parts can look different from the original.
$61.19 |
9% OFF Phone Price : $67.19
In Stock
Range Oven Light Housing 318222400
#54

Body diagram

Range oven light housing

Part #318222400

$44.71
In Stock
