Model # HPN12XCMN1 Official Haier room air conditioner

Here are the diagrams and repair parts for Official Haier HPN12XCMN1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 11 parts  |

Exhaust Hose WJ65X23415
#60

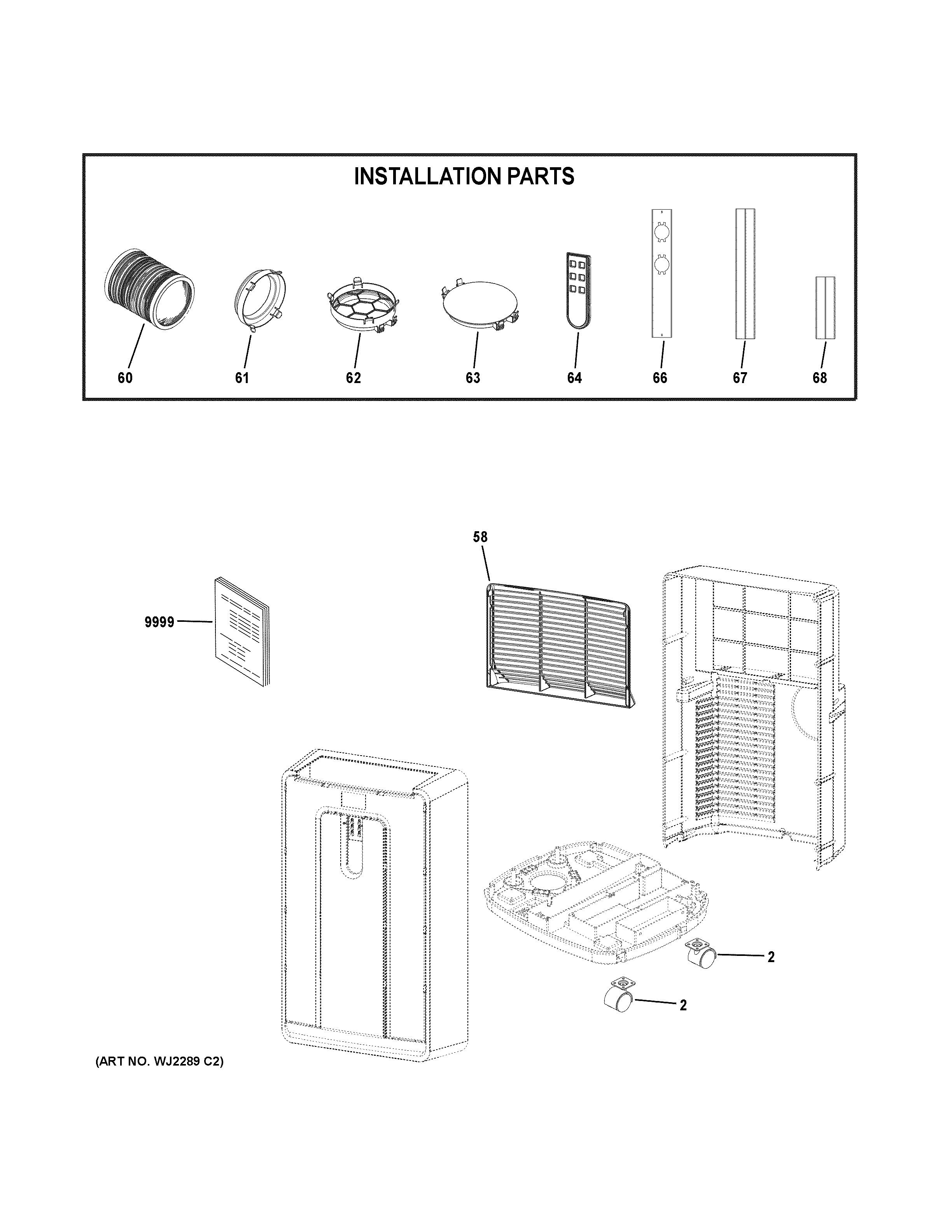

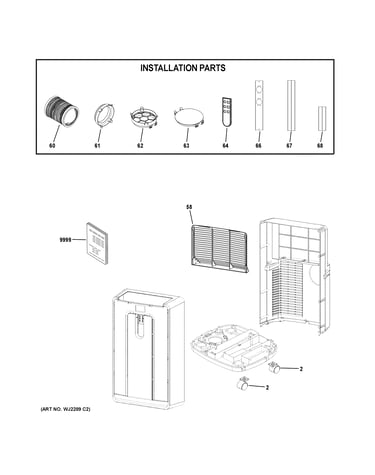

Room air conditioner diagram

Exhaust hose

Part #WJ65X23415

$100.64
11% OFF Phone Price : $112.64
In Stock
Caster WJ01X22325
#2

Room air conditioner diagram

Caster

Part #WJ01X22325

$9.93
9% OFF Phone Price : $10.93
In Stock
Hose Connector WJ65X23413
#61

Room air conditioner diagram

Hose connector

Part #WJ65X23413

$32.20
16% OFF Phone Price : $38.20
In Stock
Plate WJ01X23401
#67

Room air conditioner diagram

Plate

Part #WJ01X23401

$48.27
11% OFF Phone Price : $54.27
In Stock
Plate WJ01X23402
#68

Room air conditioner diagram

Plate

Part #WJ01X23402

$26.60
18% OFF Phone Price : $32.60
In Stock
Remote Control WJ26X22321
#64

Room air conditioner diagram

Remote control

Part #WJ26X22321

In Stock
Fix Ture WJ01X23419
#63

Room air conditioner diagram

Fix ture

Part #WJ01X23419

$24.90
19% OFF Phone Price : $30.90
In Stock
Air Filter WJ85X23423
#58

Room air conditioner diagram

Air filter

Part #WJ85X23423

$32.20
16% OFF Phone Price : $38.20
In Stock
Plate WJ01X23400
#66

Room air conditioner diagram

Plate

Part #WJ01X23400

$28.02
18% OFF Phone Price : $34.02
In Stock
Hose Connector WJ65X23417
#62

Room air conditioner diagram

Hose connector

Part #WJ65X23417

$41.40
13% OFF Phone Price : $47.40
In Stock
