Model # 56561773 Official Kenmore window-type evaporative air cooler

Here are the diagrams and repair parts for Official Kenmore 56561773 window-type evaporative air cooler, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

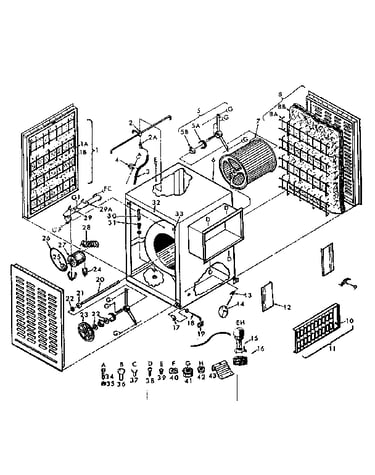

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 50 parts  |
Latch Pad P9-785-114
#33

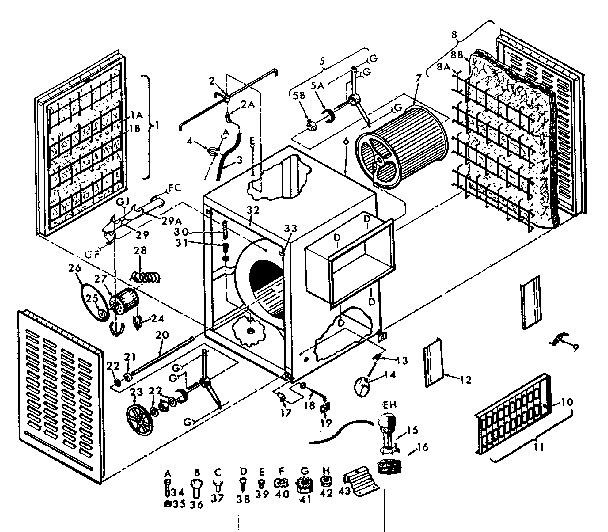

Functional replacement parts diagram

Latch pad

Part #P9-785-114

The manufacturer no longer makes this part, and there's no substitute part

Cap Screw P8-369
#37

Functional replacement parts diagram

Cap screw

Part #P8-369

The manufacturer no longer makes this part, and there's no substitute part

Bearing P5-330-1
#5B

Functional replacement parts diagram

Bearing

Part #P5-330-1

The manufacturer no longer makes this part, and there's no substitute part

Clip P9-788-224
#32

Functional replacement parts diagram

Clip

Part #P9-788-224

The manufacturer no longer makes this part, and there's no substitute part

Screw P8-321
#36

Functional replacement parts diagram

Screw

Part #P8-321

The manufacturer no longer makes this part, and there's no substitute part

Pulley P5-213
#23

Functional replacement parts diagram

Pulley

Part #P5-213

The manufacturer no longer makes this part, and there's no substitute part

Nut P8-143
#41

Functional replacement parts diagram

Nut

Part #P8-143

The manufacturer no longer makes this part, and there's no substitute part

Distributor A2-364
#2

Functional replacement parts diagram

Distributor

Part #A2-364

The manufacturer no longer makes this part, and there's no substitute part

Check Clamp A4-302
#4

Functional replacement parts diagram

Check clamp

Part #A4-302

The manufacturer no longer makes this part, and there's no substitute part

Spider Arm A7-105-85
#5

Functional replacement parts diagram

Spider arm

Part #A7-105-85

The manufacturer no longer makes this part, and there's no substitute part
