Tappan
Countertop Microwave

Model # 56-2690-10-16 Official Tappan microwave

Here are the diagrams and repair parts for Official Tappan 56-2690-10-16 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |

Paint 5303203124
#32C

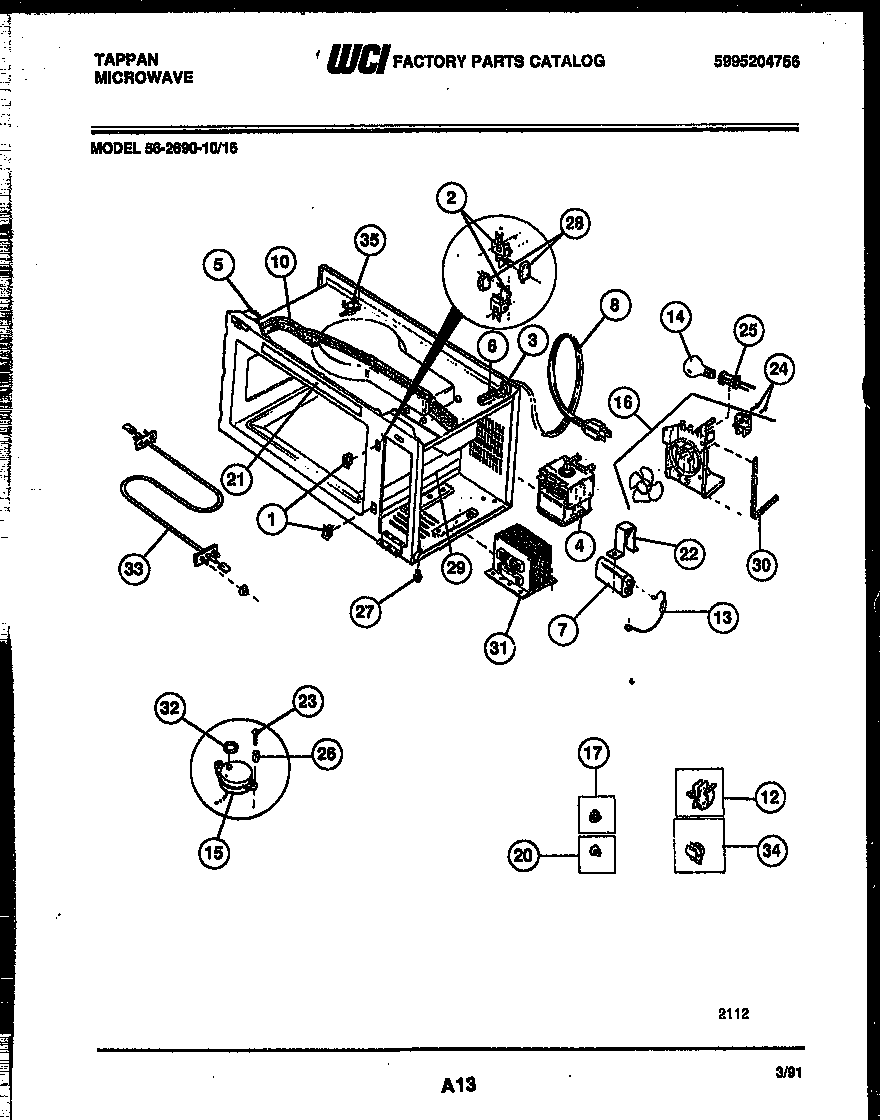

Functional parts diagram

Paint

Part #5303203124

Replaced by #5303321319

?
Manufacturer substitution
This part replaces 5303203124. Substitute parts can look different from the original.
This item is not returnable
$15.09
12% OFF Phone Price : $17.09
In Stock
Cover 5303018848
#4

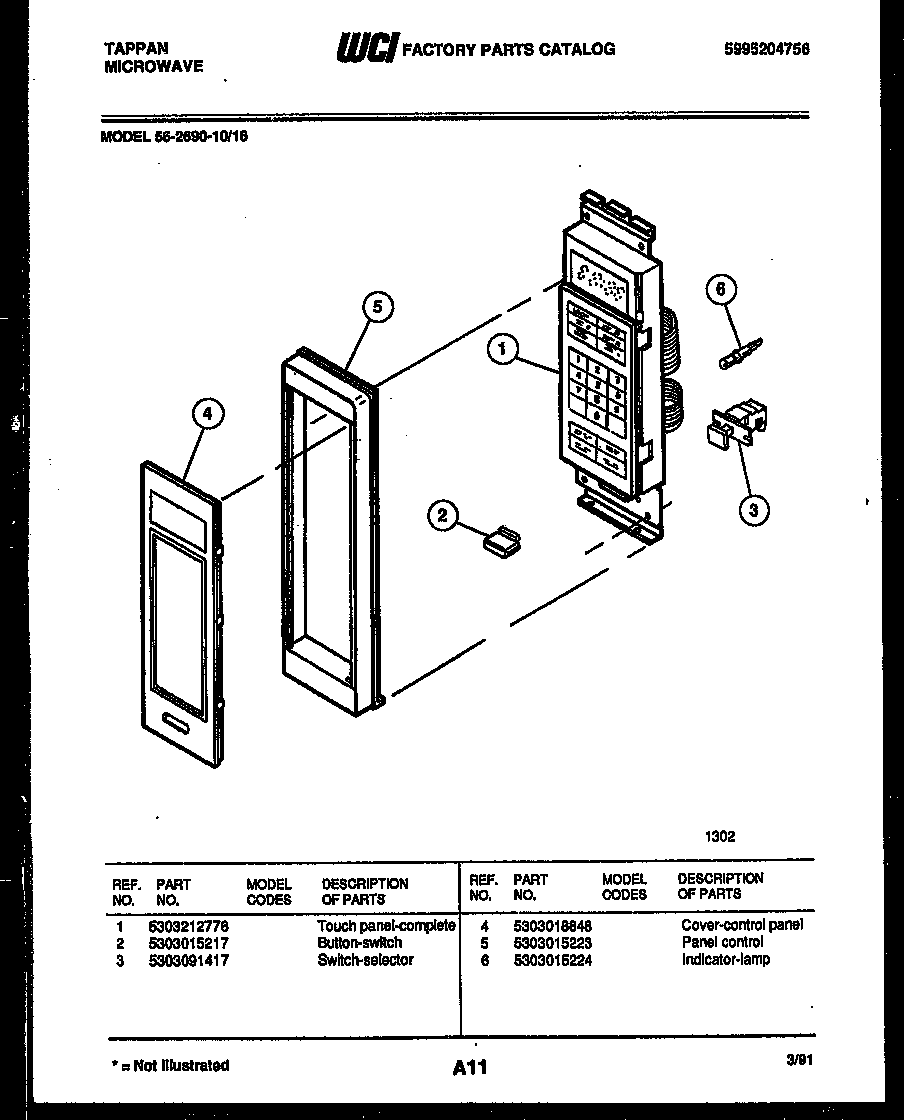

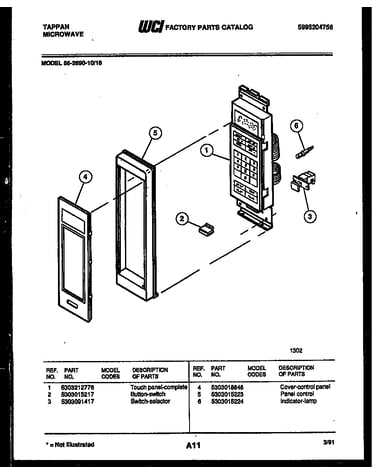

Control panel diagram

Cover

Part #5303018848

In Stock
Tray 5303202404
#20

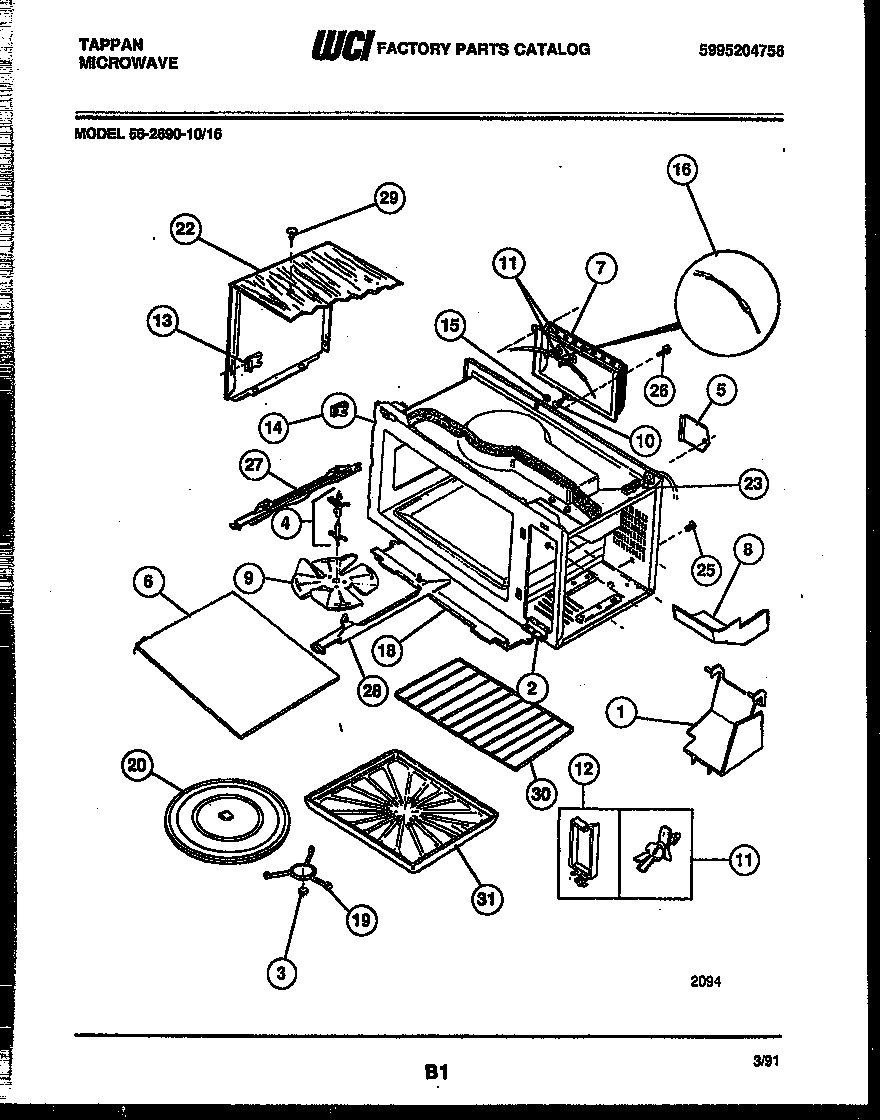

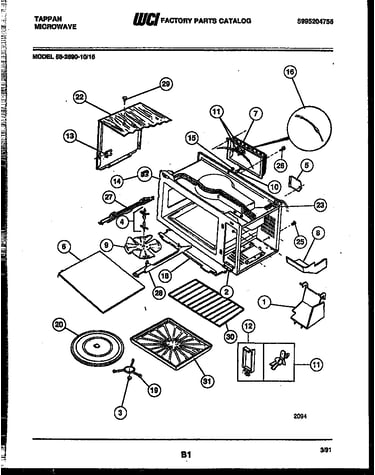

Wrapper and body parts diagram

Tray

Part #5303202404

In Stock
Cover 5303018589
#12

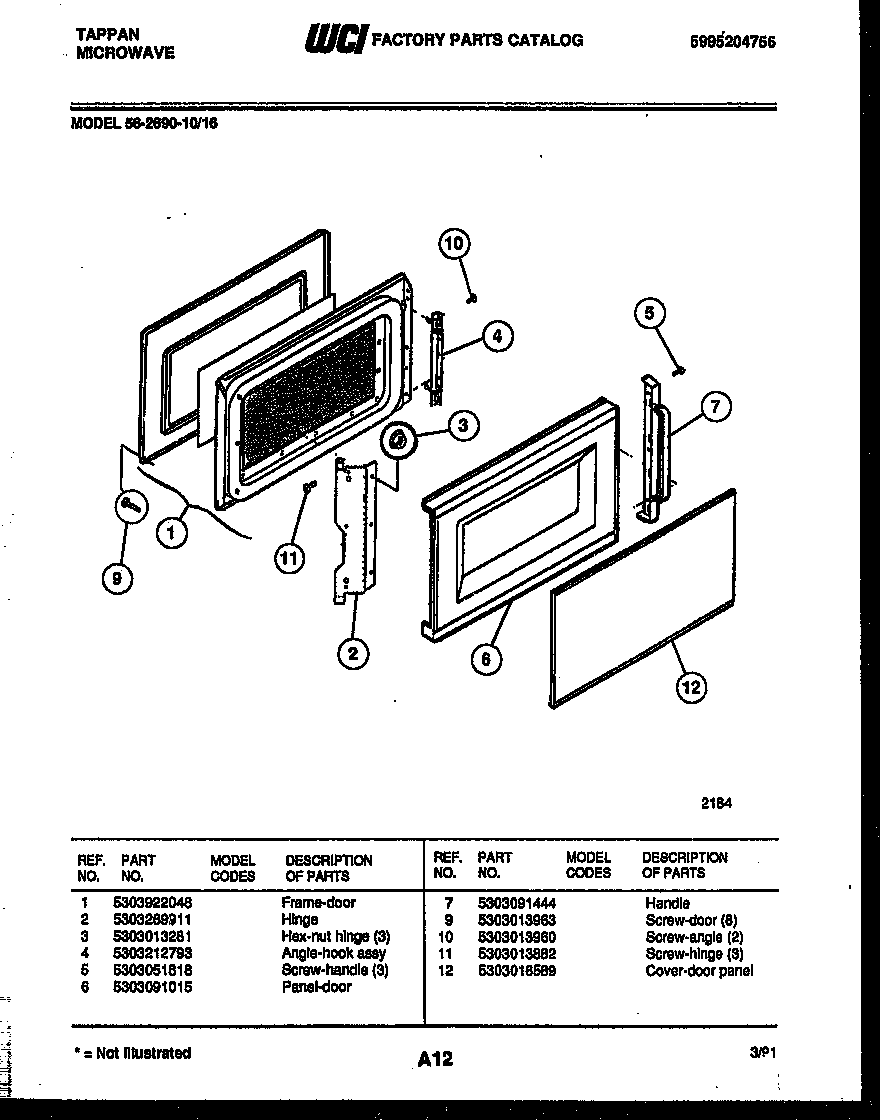

Door parts diagram

Cover

Part #5303018589

In Stock
White-westinghouse Foam Seal 5303212783
#10

Functional parts diagram

White-westinghouse foam seal

Part #5303212783

In Stock
Screw 5308014502
#24

Functional parts diagram

Screw

Part #5308014502

This item is not returnable
In Stock
Screw 5303091100
#23A

Wrapper and body parts diagram

Screw

Part #5303091100

This item is not returnable
In Stock
Label 5303018849
#21

Functional parts diagram

Label

Part #5303018849

This item is not returnable
In Stock
Tappan Hinge 5303269911
#2

Door parts diagram

Tappan hinge

Part #5303269911

In Stock
White-westinghouse Clip 5308010077
#32F

Functional parts diagram

White-westinghouse clip

Part #5308010077

This item is not returnable
In Stock
