Hotpoint
Room Air Conditioner

Model # KXN28W1X1 Official Hotpoint air conditioner

Here are the diagrams and repair parts for Official Hotpoint KXN28W1X1 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 136 parts  |
Screw WZ4X362

#NI

All parts diagram

Screw

Part #WZ4X362

This item is not returnable
$4.99
In Stock
Clamp WJ3X284
#181

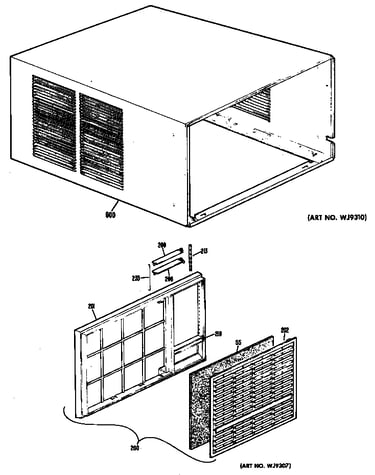

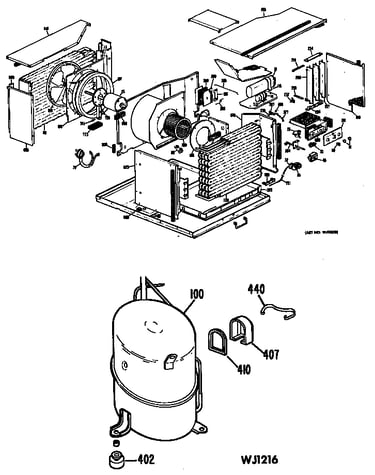

Chassis diagram

Clamp

Part #WJ3X284

This item is not returnable
$3.99
In Stock
Spacer WJ1X610
#370

Chassis diagram

Spacer

Part #WJ1X610

This item is not returnable
$2.29
In Stock
Screw Chassis To Cabinet WZ6X125

#NI

All parts diagram

Screw chassis to cabinet

Part #WZ6X125

The manufacturer no longer makes this part, and there's no substitute part

Unknown WJ2X428

#NI

All parts diagram

Unknown

Part #WJ2X428

The manufacturer no longer makes this part, and there's no substitute part

Capacitor Run WJ20X400
#10

Chassis diagram

Capacitor run

Part #WJ20X400

The manufacturer no longer makes this part, and there's no substitute part

Escutcheon WJ7X775
#310

Chassis diagram

Escutcheon

Part #WJ7X775

The manufacturer no longer makes this part, and there's no substitute part

Coupling WJ56X63

#NI

All parts diagram

Coupling

Part #WJ56X63

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor Support WJ65X328
#725

Chassis diagram

Fan motor support

Part #WJ65X328

The manufacturer no longer makes this part, and there's no substitute part

Tube Seal At Cond Top WJ43X379

#NI

All parts diagram

Tube seal at cond top

Part #WJ43X379

The manufacturer no longer makes this part, and there's no substitute part
