Model # 2581530100 Official Craftsman gas grill

Here are the diagrams and repair parts for Official Craftsman 2581530100 gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Orifice 10403-34
#32

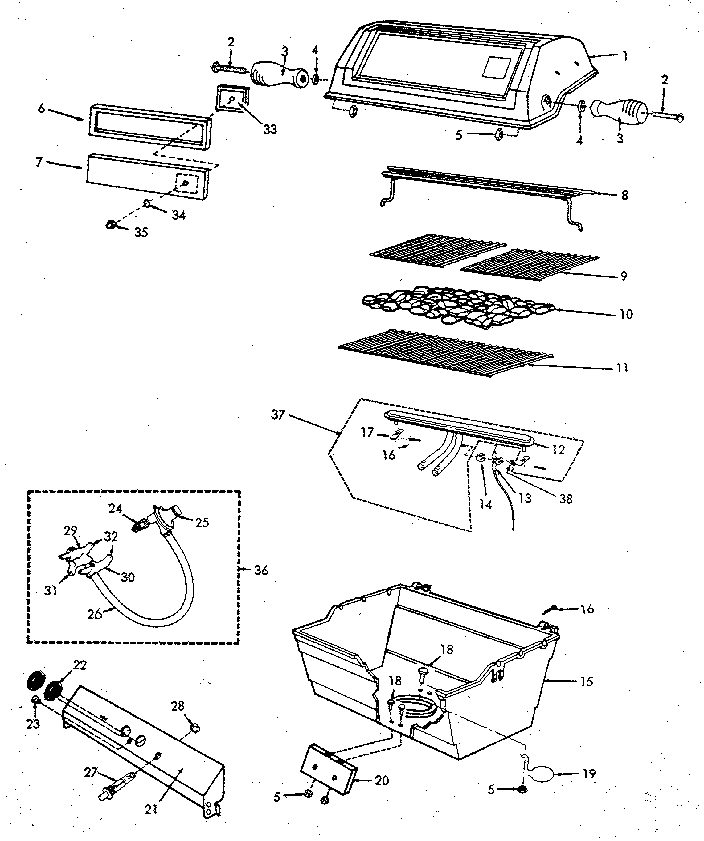

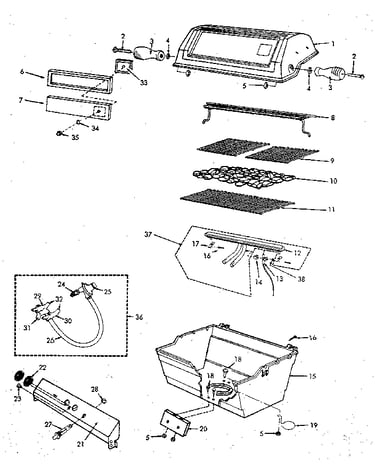

Grill and burner diagram

Orifice

Part #10403-34

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut Y-12082
#38

Grill and burner diagram

Hex nut

Part #Y-12082

The manufacturer no longer makes this part, and there's no substitute part

Valve 10691-144-2

#NI

All parts diagram

Valve

Part #10691-144-2

The manufacturer no longer makes this part, and there's no substitute part

Tank 20 Lb 10930-53-3
#69

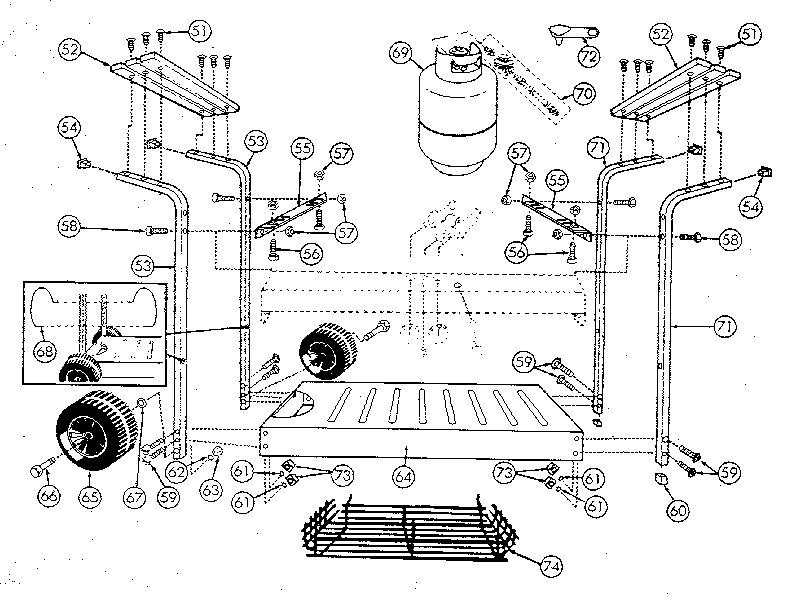

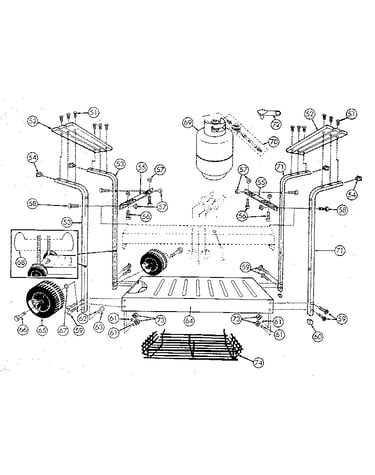

Main frame diagram

Tank 20 lb

Part #10930-53-3

The manufacturer no longer makes this part, and there's no substitute part

L.h. Valve 10691-147-4
#29

Grill and burner diagram

L.h. valve

Part #10691-147-4

The manufacturer no longer makes this part, and there's no substitute part

Knob 10472-53
#22

Grill and burner diagram

Knob

Part #10472-53

The manufacturer no longer makes this part, and there's no substitute part

3/8 Washer Y-12851
#67

Main frame diagram

3/8 washer

Part #Y-12851

The manufacturer no longer makes this part, and there's no substitute part

Retainer 10401-25-1
#6

Grill and burner diagram

Retainer

Part #10401-25-1

The manufacturer no longer makes this part, and there's no substitute part

Square Nut Y-13052
#73

Main frame diagram

Square nut

Part #Y-13052

The manufacturer no longer makes this part, and there's no substitute part

Cooking Rack 10225-268
#8

Grill and burner diagram

Cooking rack

Part #10225-268

The manufacturer no longer makes this part, and there's no substitute part
