Hoover
Upright Vacuum

Model # U4551920 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover U4551920 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 69 parts  |

Valve Gate 38718005
#58

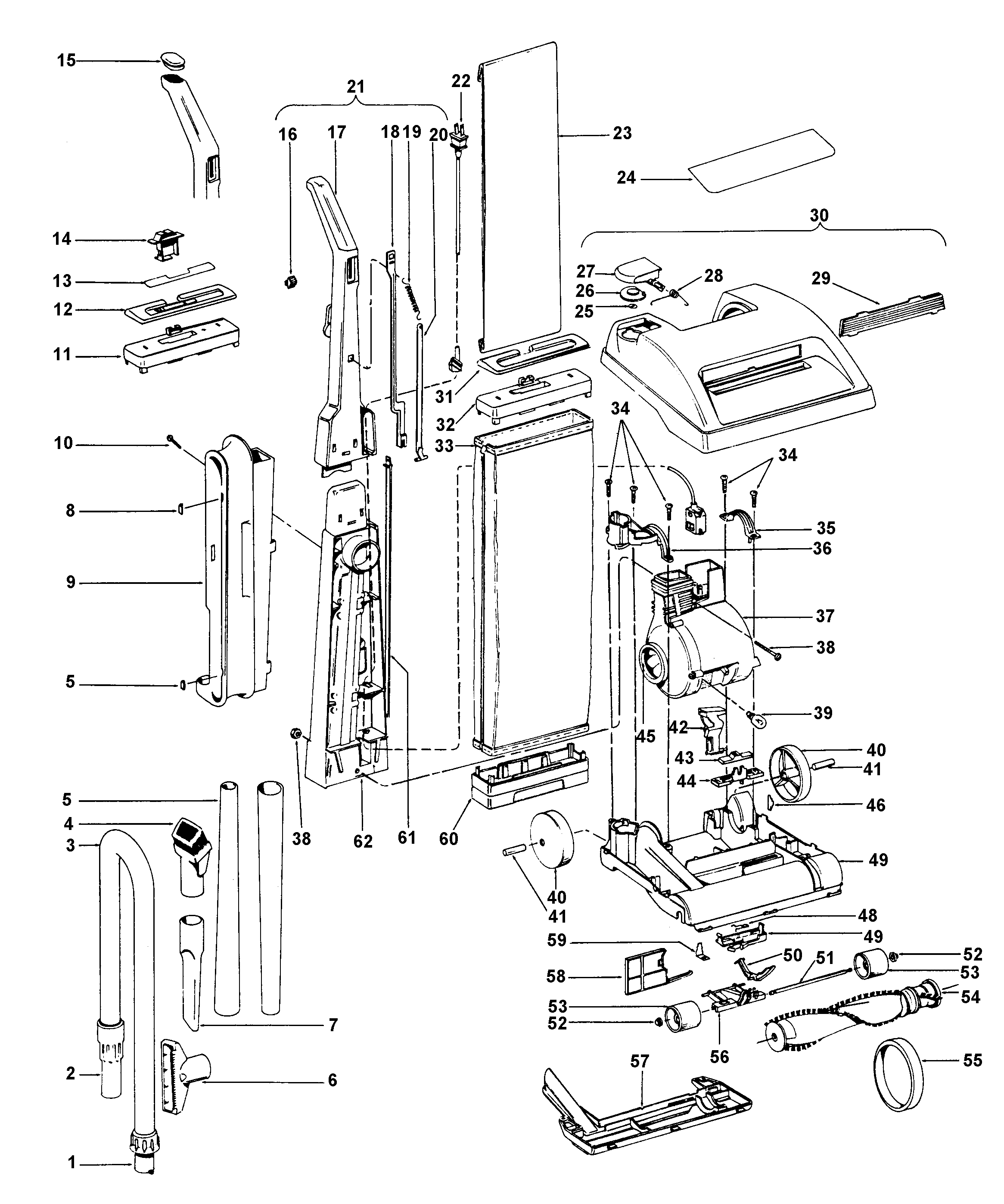

Mainbody, handle, outerbag diagram

Valve gate

Part #38718005

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Spring 34572002
#59

Mainbody, handle, outerbag diagram

Vacuum spring

Part #34572002

The manufacturer no longer makes this part, and there's no substitute part

Seal 38784016
#45

Mainbody, handle, outerbag diagram

Seal

Part #38784016

The manufacturer no longer makes this part, and there's no substitute part

Regina Vacuum Screw 21447217
#34

Mainbody, handle, outerbag diagram

Regina vacuum screw

Part #21447217

The manufacturer no longer makes this part, and there's no substitute part

Release Lever Handle 38458022
#42

Mainbody, handle, outerbag diagram

Release lever handle

Part #38458022

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Hoover Vacuum Bag, Type A, 3-pack 4010001A
#23

Mainbody, handle, outerbag diagram

Kenmore hoover vacuum bag, type a, 3-pack

Part #4010001A

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Speed Nut 21362006
#25

Mainbody, handle, outerbag diagram

Kenmore speed nut

Part #21362006

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Housing End Cap, Right 36423016
#1

Agitator diagram

Vacuum beater bar housing end cap, right

Part #36423016

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Conical Washer 21347003
#3

Agitator diagram

Vacuum conical washer

Part #21347003

The manufacturer no longer makes this part, and there's no substitute part

Spring 38351012
#48

Mainbody, handle, outerbag diagram

Spring

Part #38351012

The manufacturer no longer makes this part, and there's no substitute part
