Hoover
Upright Vacuum

Model # U5075930 Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover U5075930 upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 76 parts  |

Vacuum Conical Washer 21347003
#3

Agitator diagram

Vacuum conical washer

Part #21347003

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel 38522011
#24

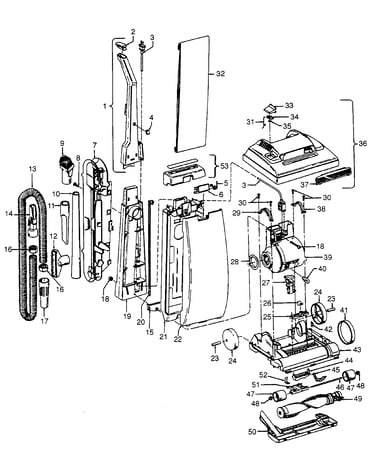

Mainbody, handle, outerbag diagram

Vacuum wheel

Part #38522011

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Housing End Cap, Left 36423017
#7

Agitator diagram

Vacuum beater bar housing end cap, left

Part #36423017

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Spring 34572002
#52

Mainbody, handle, outerbag diagram

Vacuum spring

Part #34572002

The manufacturer no longer makes this part, and there's no substitute part

Upright Vacuum Screw 21447220
#8

Mainbody, handle, outerbag diagram

Upright vacuum screw

Part #21447220

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Beater Bar Housing End Cap, Right 36423016
#1

Agitator diagram

Vacuum beater bar housing end cap, right

Part #36423016

The manufacturer no longer makes this part, and there's no substitute part

Seal 38784016
#28

Mainbody, handle, outerbag diagram

Seal

Part #38784016

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Wheel Retainer 36131056
#48

Mainbody, handle, outerbag diagram

Vacuum wheel retainer

Part #36131056

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Crevice Tool 38617024
#11

Mainbody, handle, outerbag diagram

Kenmore crevice tool

Part #38617024

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Spring 38355008
#5

Mainbody, handle, outerbag diagram

Kenmore spring

Part #38355008

The manufacturer no longer makes this part, and there's no substitute part
