JVC
Compact VHS-C Camcorder

Model # GR-SXM730U Official JVC camcorder

Here are the diagrams and repair parts for Official JVC GR-SXM730U camcorder, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 128 parts  |
Integrated Circuit JCY0149
#NI

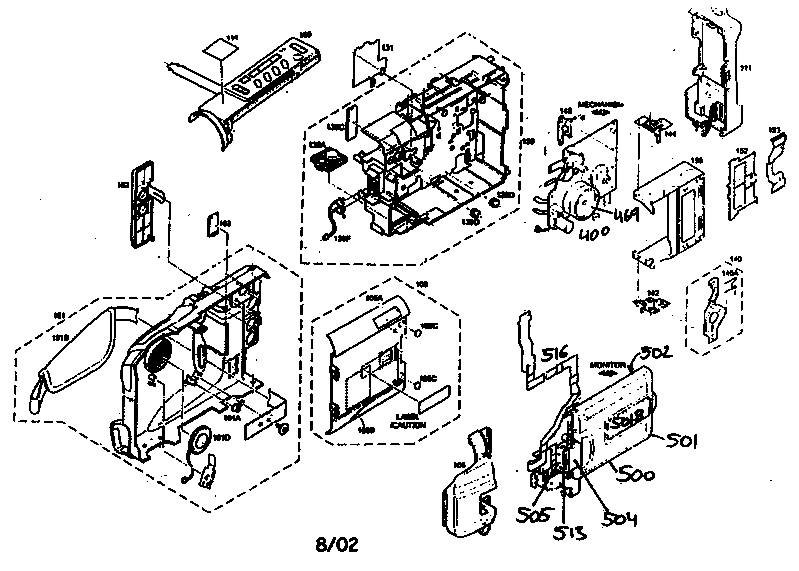

Cabinet parts 1 diagram

Integrated circuit

Part #JCY0149

The manufacturer no longer makes this part, and there's no substitute part

Jvc Board Monitor YB20900C
#NI

Cabinet parts 1 diagram

Jvc board monitor

Part #YB20900C

The manufacturer no longer makes this part, and there's no substitute part

I.c(digi-m MC74AC04DT
#NI

Cabinet parts 1 diagram

I.c(digi-m

Part #MC74AC04DT

The manufacturer no longer makes this part, and there's no substitute part

Hinge Assembly LY31957-001A
#513

Cabinet parts 1 diagram

Hinge assembly

Part #LY31957-001A

The manufacturer no longer makes this part, and there's no substitute part

Pulley LY42678-001A
#NI

Cabinet parts 1 diagram

Pulley

Part #LY42678-001A

The manufacturer no longer makes this part, and there's no substitute part

Dc Light LY32040-001A
#104E

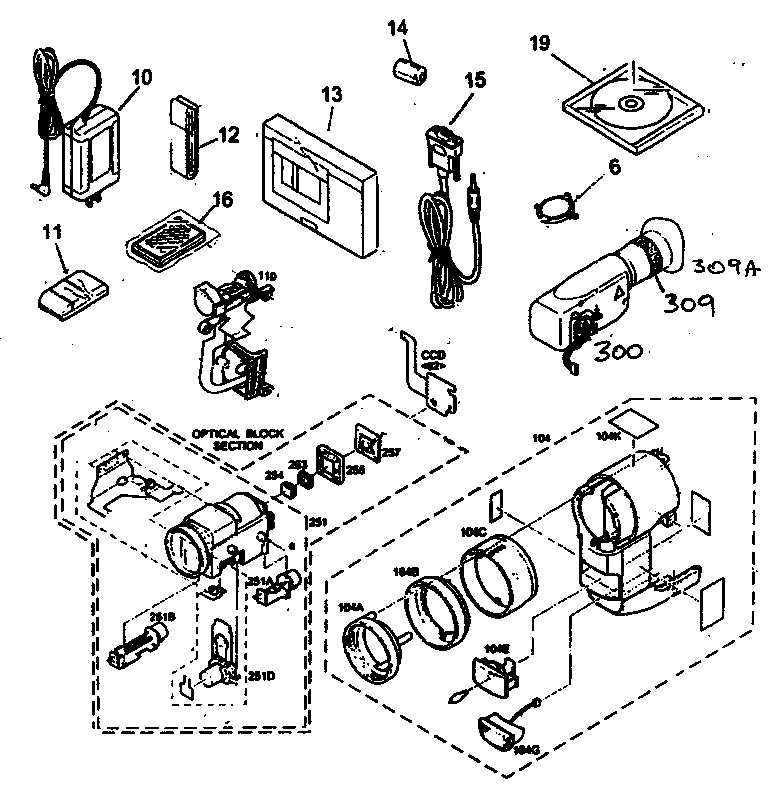

Cabinet parts 2 diagram

Dc light

Part #LY32040-001A

The manufacturer no longer makes this part, and there's no substitute part

Iris Motor PTY30948-006
#251D

Cabinet parts 2 diagram

Iris motor

Part #PTY30948-006

The manufacturer no longer makes this part, and there's no substitute part

Integrated Circuit UPD6467GR-506-X
#NI

Cabinet parts 1 diagram

Integrated circuit

Part #UPD6467GR-506-X

The manufacturer no longer makes this part, and there's no substitute part

Bracket LY31956-001A
#153

Cabinet parts 1 diagram

Bracket

Part #LY31956-001A

The manufacturer no longer makes this part, and there's no substitute part

Cassette Cover LY30176-001A
#152

Cabinet parts 1 diagram

Cassette cover

Part #LY30176-001A

The manufacturer no longer makes this part, and there's no substitute part
