Porter Cable
Drill/Driver

Model # 7515 Official Porter Cable drill

Here are the diagrams and repair parts for Official Porter Cable 7515 drill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

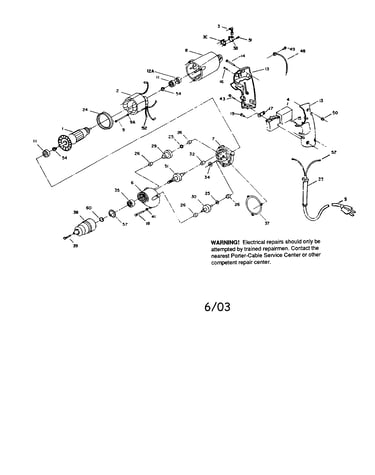

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 47 parts  |
Slinger 852714
#34

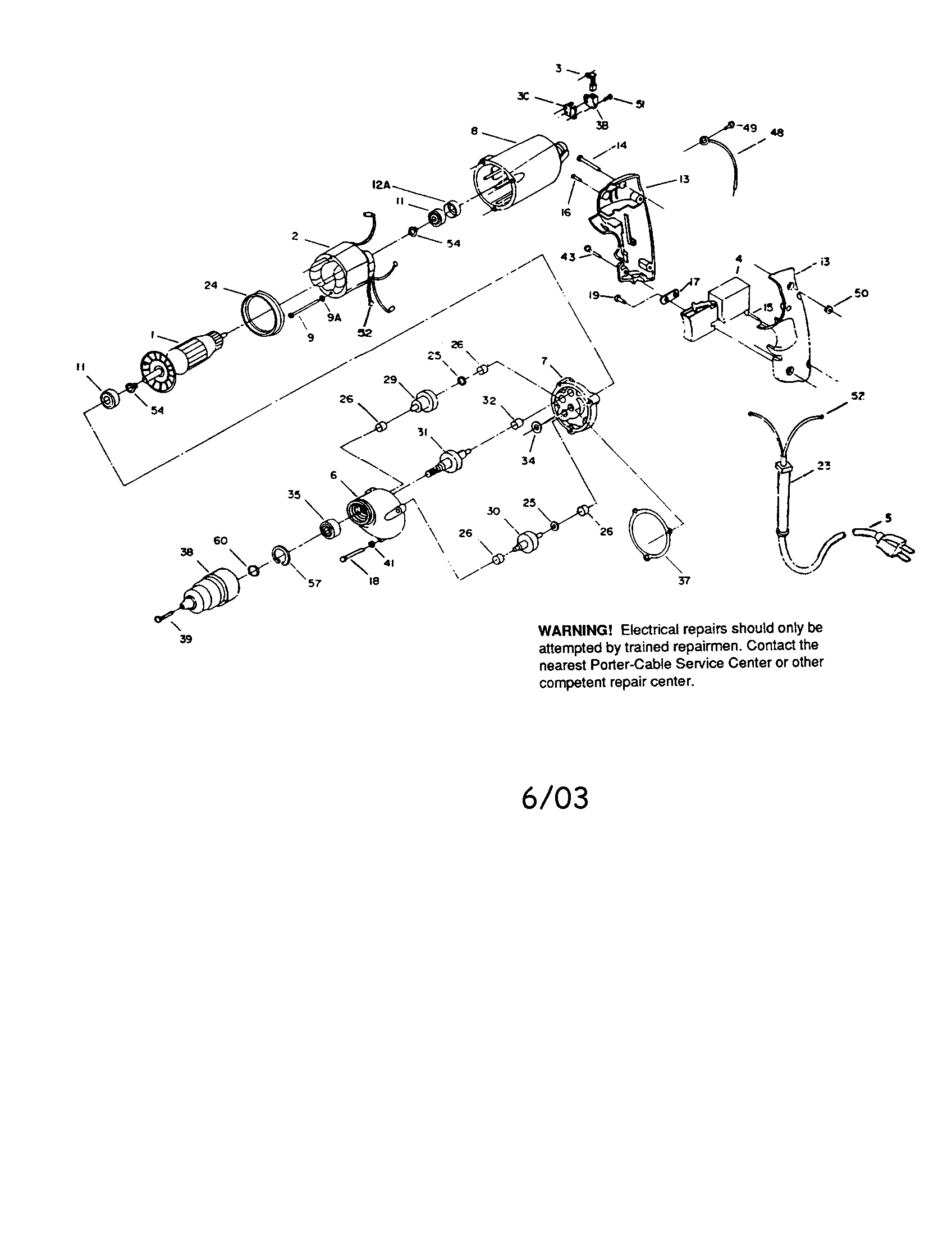

Drill diagram

Slinger

Part #852714

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord 695854
#5

Drill diagram

Ac cord

Part #695854

The manufacturer no longer makes this part, and there's no substitute part

Sears Lock Washer 802648
#41

Drill diagram

Sears lock washer

Part #802648

The manufacturer no longer makes this part, and there's no substitute part

Screw 864137
#49

Drill diagram

Screw

Part #864137

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Power Tool Bearing 855284
#11

Drill diagram

Craftsman power tool bearing

Part #855284

The manufacturer no longer makes this part, and there's no substitute part

Screw 865643
#14

Drill diagram

Screw

Part #865643

The manufacturer no longer makes this part, and there's no substitute part

Snap Ring 847564
#54

Drill diagram

Snap ring

Part #847564

The manufacturer no longer makes this part, and there's no substitute part

Screw 864136
#51

Drill diagram

Screw

Part #864136

The manufacturer no longer makes this part, and there's no substitute part

Handle Screw 859384
#15

Drill diagram

Handle screw

Part #859384

The manufacturer no longer makes this part, and there's no substitute part

Handle 810543

#NI01

All parts diagram

Handle

Part #810543

The manufacturer no longer makes this part, and there's no substitute part
