Hoover
Upright Vacuum

Model # U4447--- Official Hoover upright vacuum

Here are the diagrams and repair parts for Official Hoover U4447- upright vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 120 parts  |
Kenmore Yoke 34252005
#51

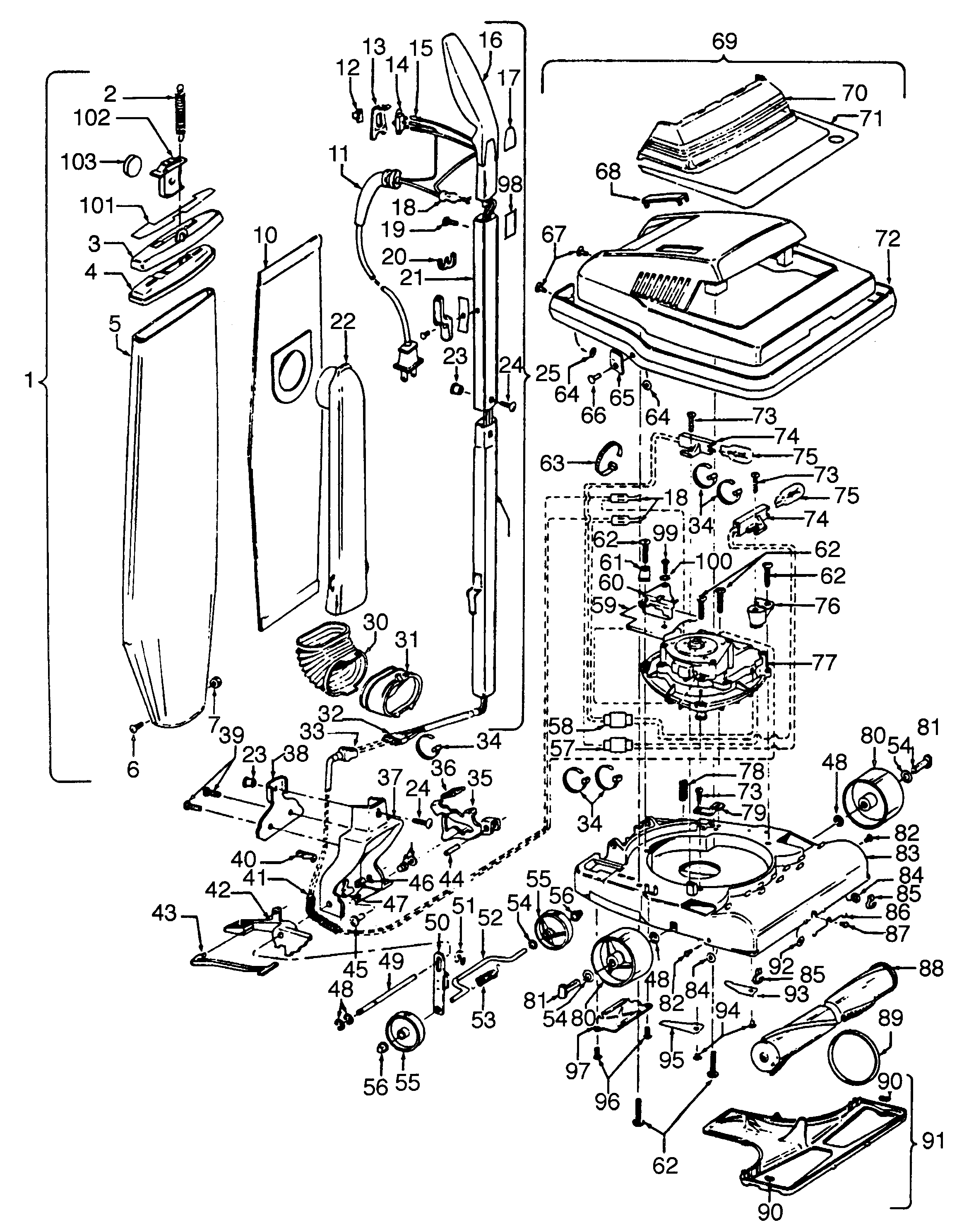

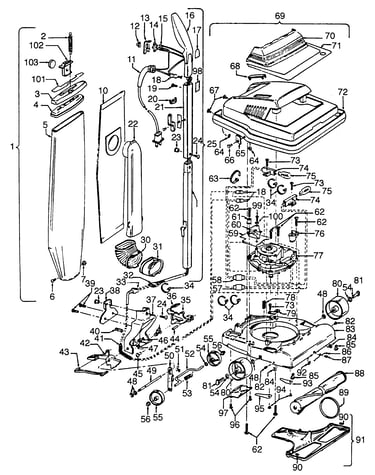

Motor, handle, mainbody, outerbag, hood diagram

Kenmore yoke

Part #34252005

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Retaining Flange 35434040
#97

Motor, handle, mainbody, outerbag, hood diagram

Kenmore retaining flange

Part #35434040

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Hndl Cnt Lvr 38456050
#35

Motor, handle, mainbody, outerbag, hood diagram

Kenmore hndl cnt lvr

Part #38456050

The manufacturer no longer makes this part, and there's no substitute part

Split Ring 33712007
#7A

Cleaningtools diagram

Split ring

Part #33712007

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Conical Washer 21347003
#3

Agitator diagram

Vacuum conical washer

Part #21347003

The manufacturer no longer makes this part, and there's no substitute part

Agitator End 41435070
#4B

Agitator diagram

Agitator end

Part #41435070

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Pvt Pn Rtnr 34665007
#79

Motor, handle, mainbody, outerbag, hood diagram

Kenmore pvt pn rtnr

Part #34665007

The manufacturer no longer makes this part, and there's no substitute part

Handle Nut 32277008
#23

Motor, handle, mainbody, outerbag, hood diagram

Handle nut

Part #32277008

The manufacturer no longer makes this part, and there's no substitute part

Spring 048409FW
#46

Motor, handle, mainbody, outerbag, hood diagram

Spring

Part #048409FW

The manufacturer no longer makes this part, and there's no substitute part

Kenmore Support Washer 21312781
#84

Motor, handle, mainbody, outerbag, hood diagram

Kenmore support washer

Part #21312781

The manufacturer no longer makes this part, and there's no substitute part
