Frigidaire
Room Air Conditioner

Model # FAH126J2T3 Official Frigidaire air conditioner

Here are the diagrams and repair parts for Official Frigidaire FAH126J2T3 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

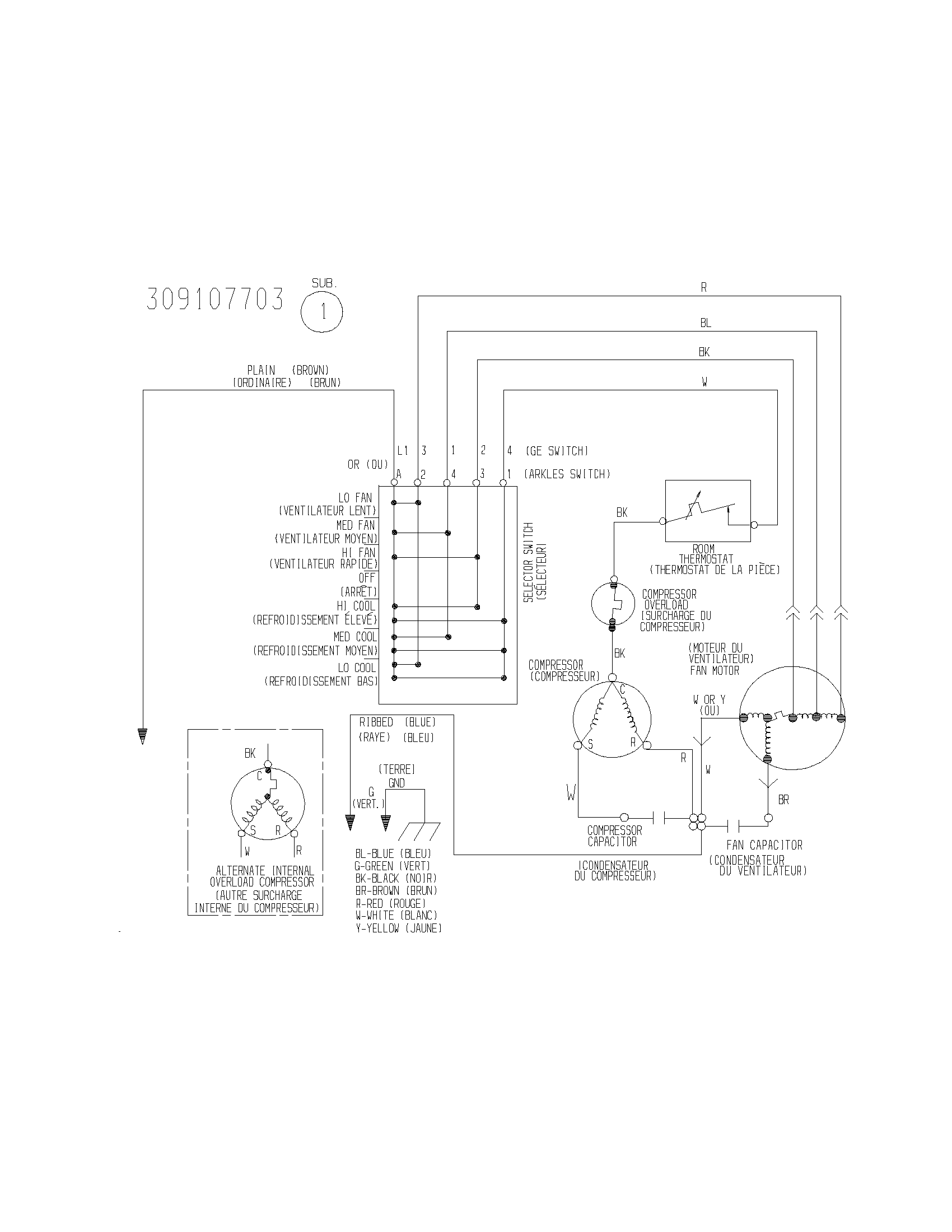

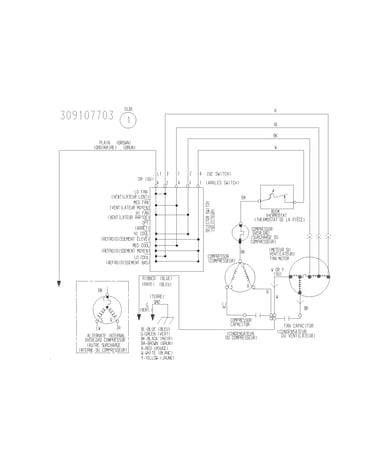

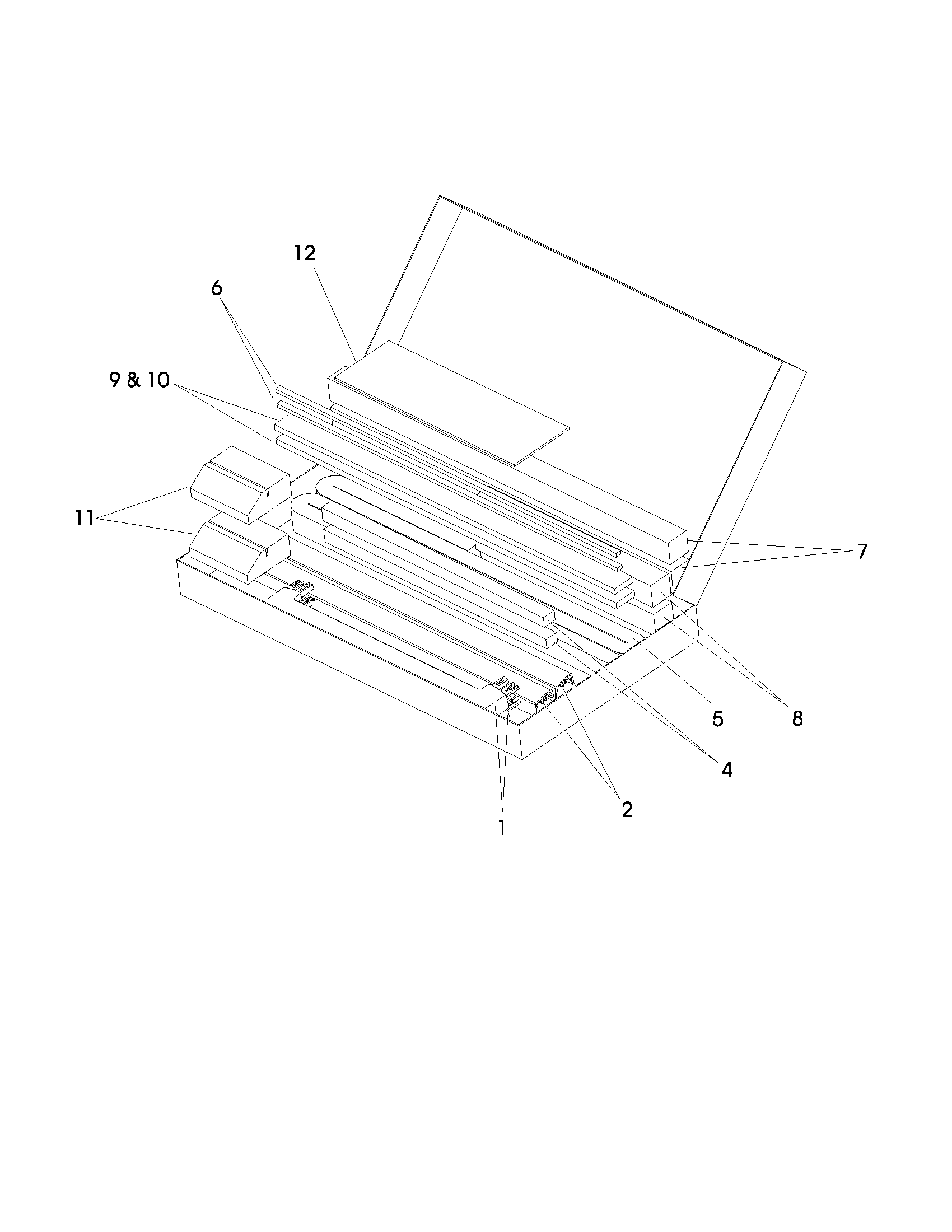

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Bracket Screw 3015312
#29

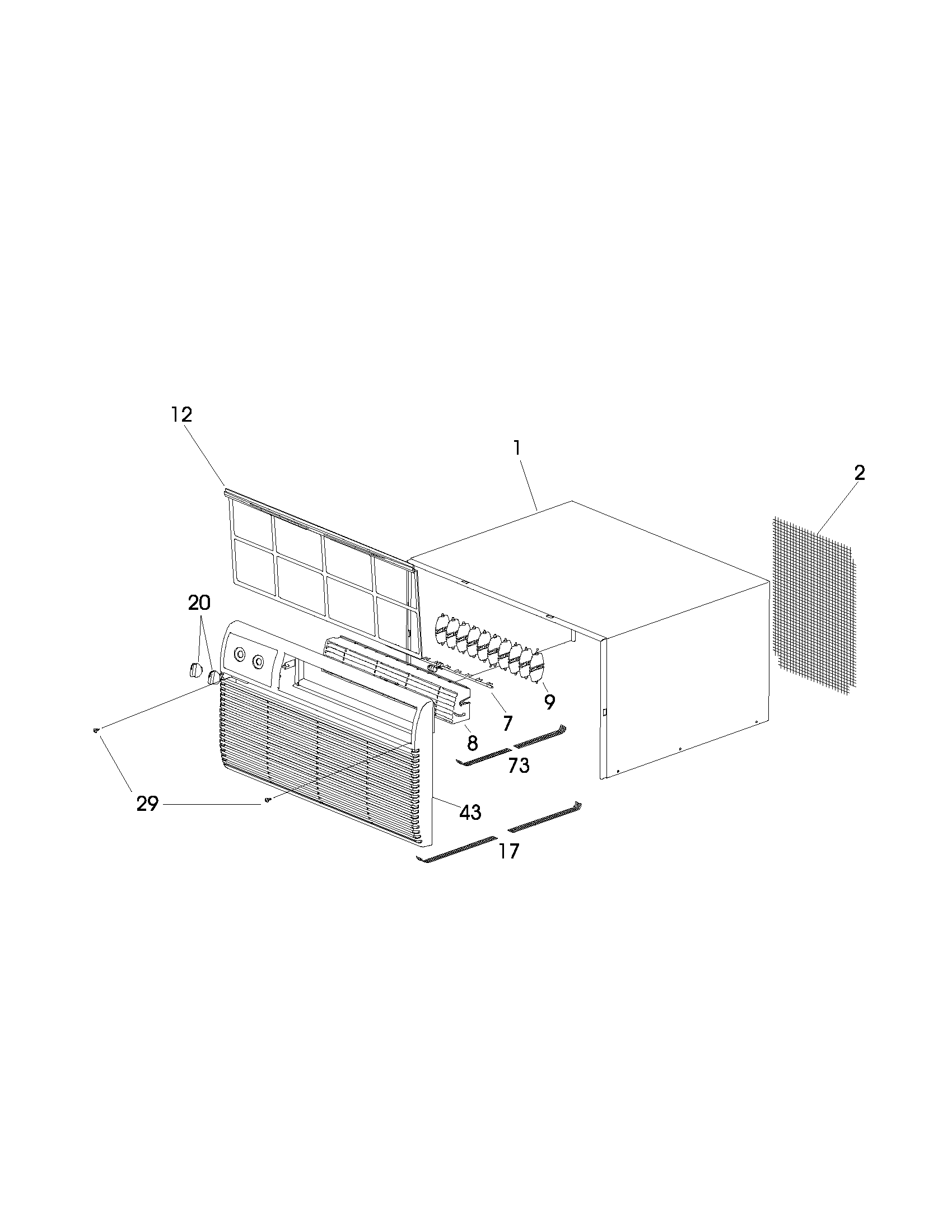

Cabinet front and wrapper diagram

Bracket screw

Part #3015312

Replaced by #5303293767

?
Manufacturer substitution
This part replaces 3015312. Substitute parts can look different from the original.
This item is not returnable
$5.80
In Stock
Room Air Conditioner Screw 5303015427
Room air conditioner screw

Part #5303015427

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303015427. Substitute parts can look different from the original.
$14.69
In Stock
Westinghouse Room Air Conditioner Filter Dryer 5300265301
#17

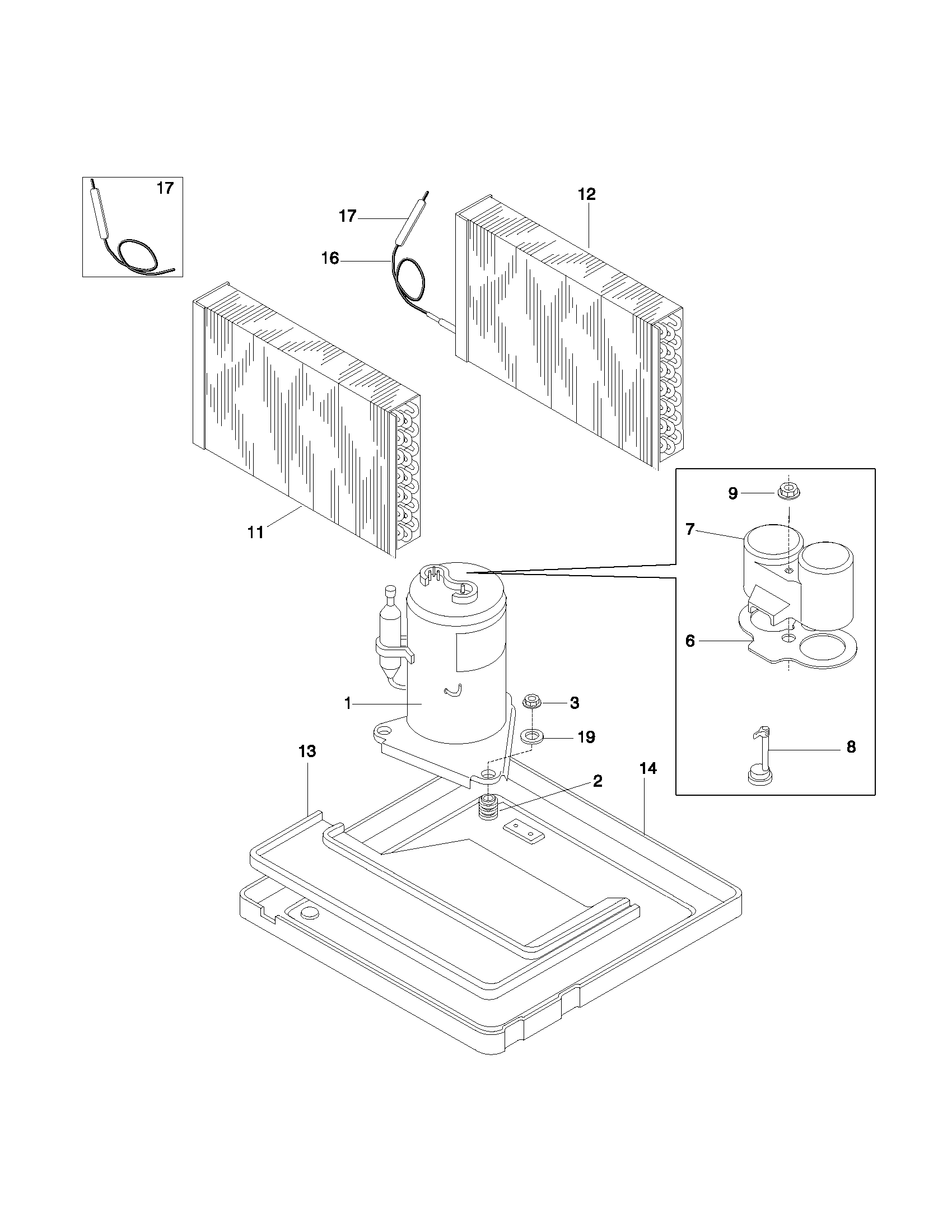

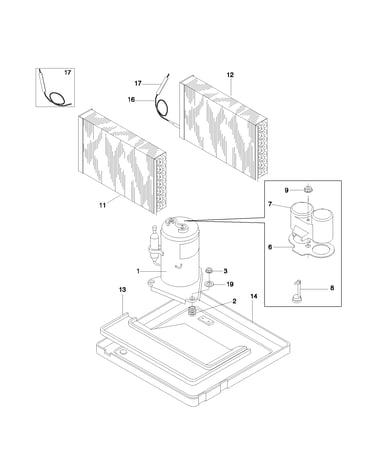

Compressor parts diagram

Westinghouse room air conditioner filter dryer

Part #5300265301

$212.62
In Stock
Screw 3202975
#2

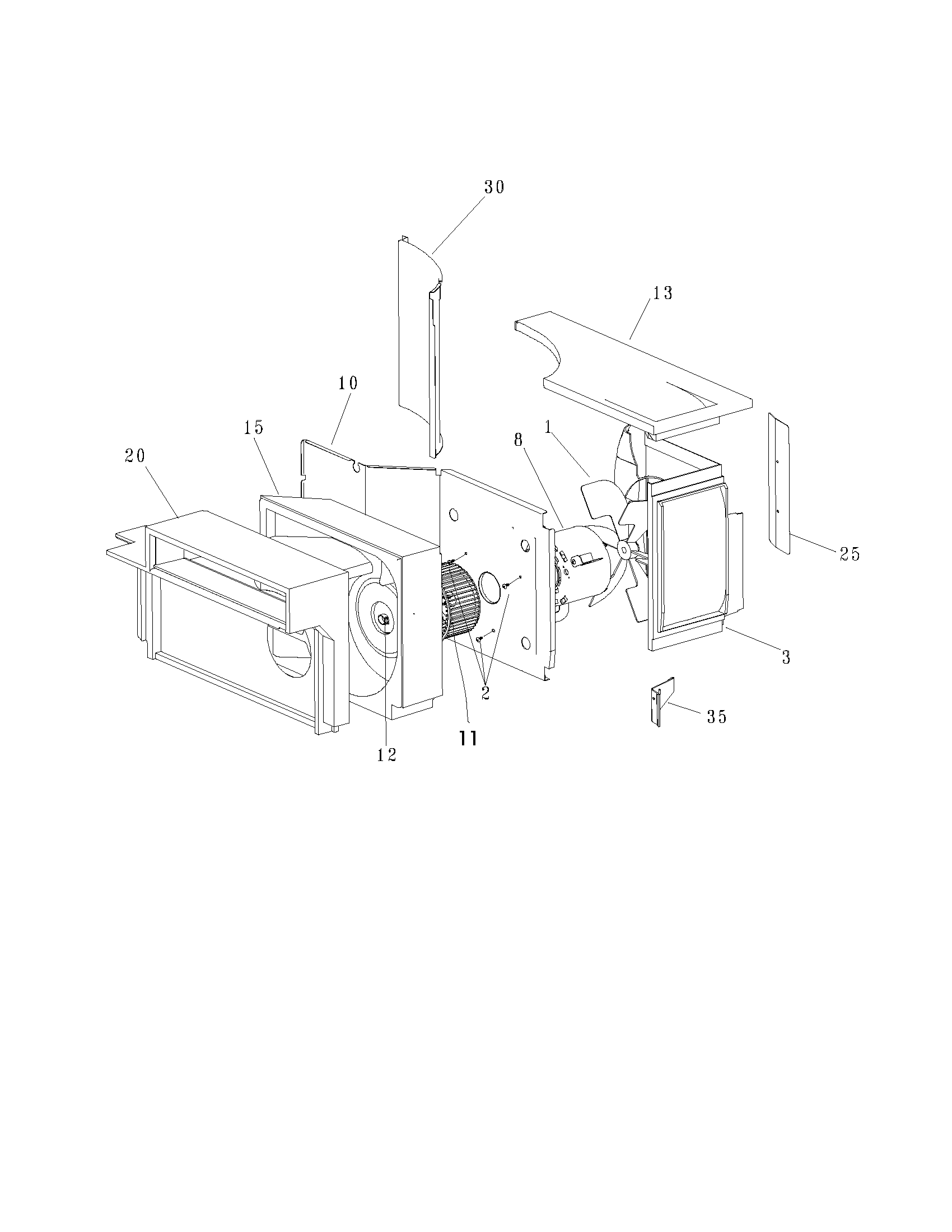

Air handling parts diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
Nut 5303294292
#9

Compressor parts diagram

Nut

Part #5303294292

The manufacturer no longer makes this part, and there's no substitute part

Spacer 3200761
#35

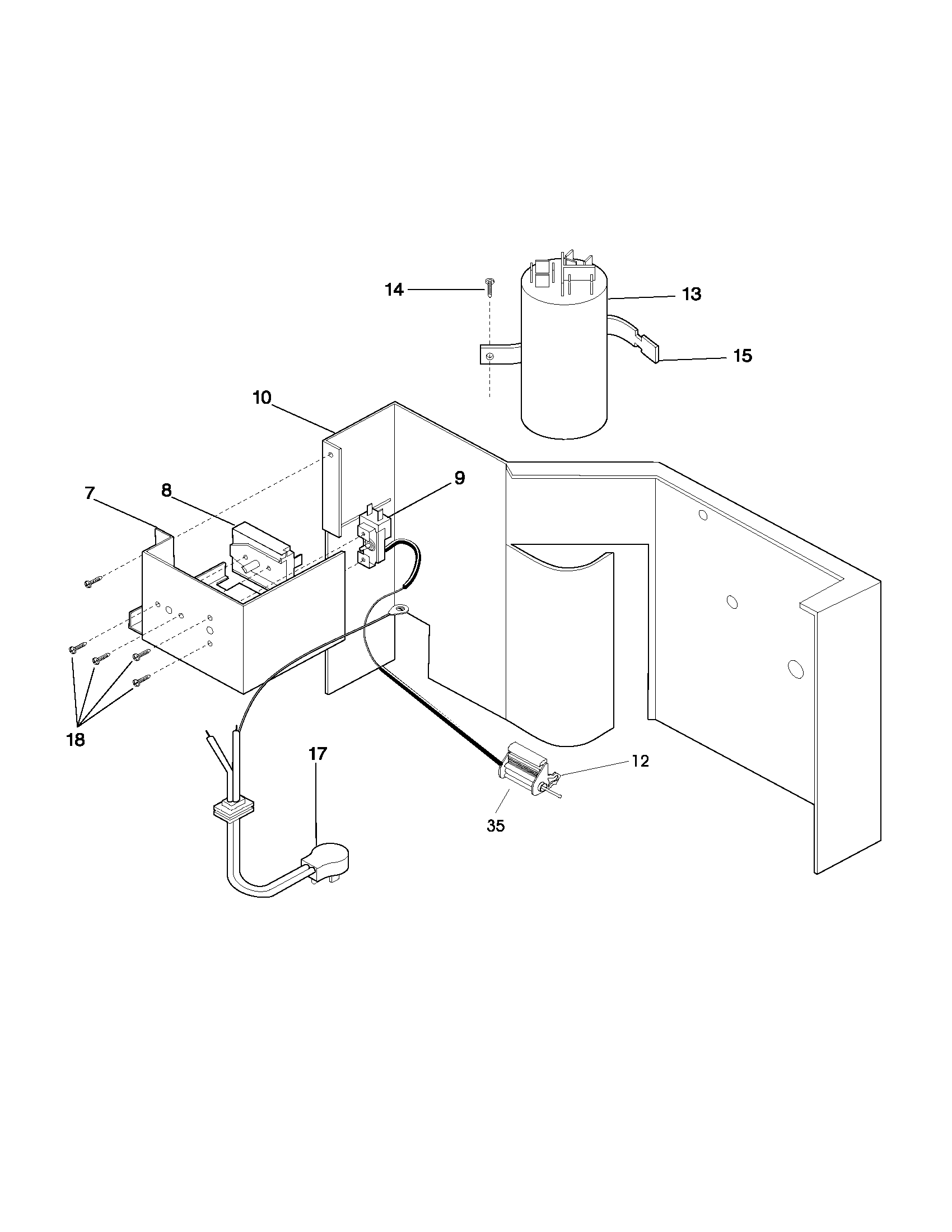

Controls diagram

Spacer

Part #3200761

The manufacturer no longer makes this part, and there's no substitute part

Room Air Conditioner Compressor Grommet 5303283877
#2

Compressor parts diagram

Room air conditioner compressor grommet

Part #5303283877

The manufacturer no longer makes this part, and there's no substitute part

Cover,conden 309628802
#13

Air handling parts diagram

Cover,conden

Part #309628802

The manufacturer no longer makes this part, and there's no substitute part

Fan Motor 309647502
#8

Air handling parts diagram

Fan motor

Part #309647502

The manufacturer no longer makes this part, and there's no substitute part

#bulkhead-18 309627401
#bulkhead-18

Part #309627401

The manufacturer no longer makes this part, and there's no substitute part
