Thermador
Warming Drawer

Model # WD24S Official Thermador warming drawer

Here are the diagrams and repair parts for Official Thermador WD24S warming drawer, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 42 parts  |
Clip 14-19-717
#12

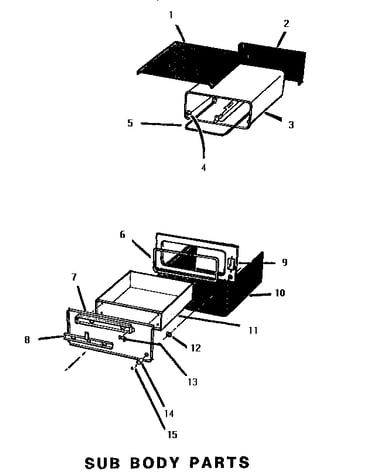

Body parts and heating element diagram

Clip

Part #14-19-717

This item is not returnable
$2.16
In Stock
Sub Body 14-07-106-01
#10

Body parts and heating element diagram

Sub body

Part #14-07-106-01

The manufacturer no longer makes this part, and there's no substitute part

Screw 14-90-022
Screw

Part #14-90-022

The manufacturer no longer makes this part, and there's no substitute part

Mounting Bracket 14-07-127-05
#2

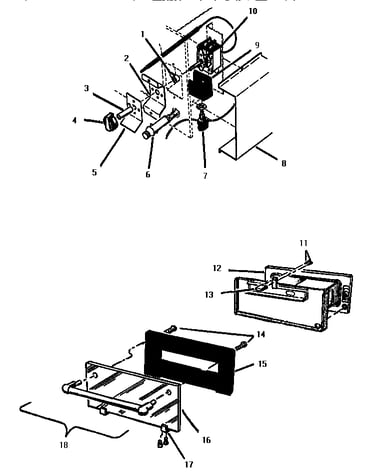

Control parts and door diagram

Mounting bracket

Part #14-07-127-05

The manufacturer no longer makes this part, and there's no substitute part

Light Switch 14-19-151
#7

Control parts and door diagram

Light switch

Part #14-19-151

The manufacturer no longer makes this part, and there's no substitute part

Body Can 14-07-264
#3

Body parts and heating element diagram

Body can

Part #14-07-264

The manufacturer no longer makes this part, and there's no substitute part

Screw, 2-pack 14-90-003
#11

Control parts and door diagram

Screw, 2-pack

Part #14-90-003

The manufacturer no longer makes this part, and there's no substitute part

Nut 14-93-023
#5A

Body parts and heating element diagram

Nut

Part #14-93-023

The manufacturer no longer makes this part, and there's no substitute part

Element, Standard, 450w, 120v 14-29-003
#5

Body parts and heating element diagram

Element, standard, 450w, 120v

Part #14-29-003

The manufacturer no longer makes this part, and there's no substitute part

Screw 14-90-023
#10A

Control parts and door diagram

Screw

Part #14-90-023

The manufacturer no longer makes this part, and there's no substitute part
