Kenmore
Countertop Microwave

Model # 72163102300 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 72163102300 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

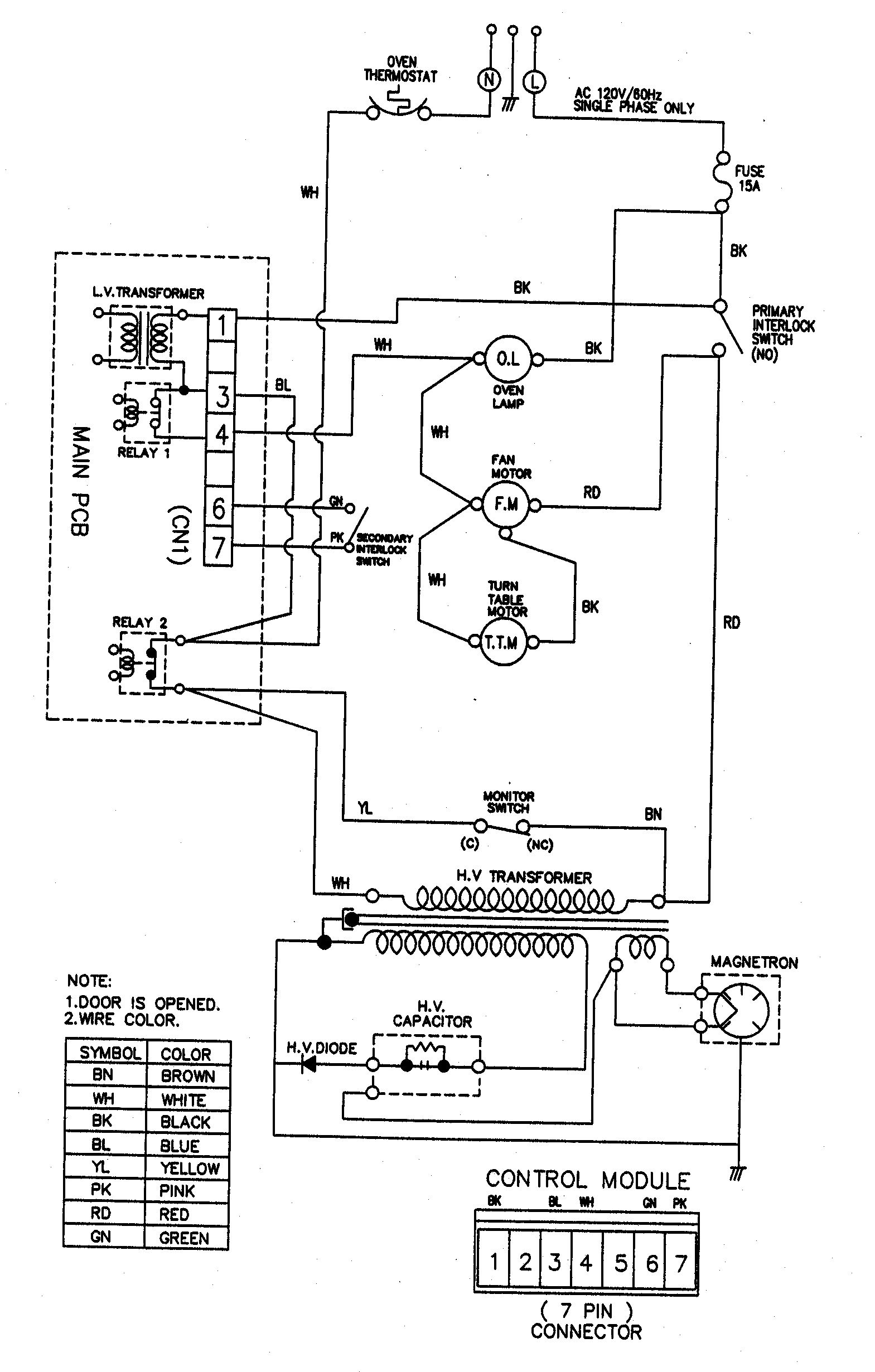

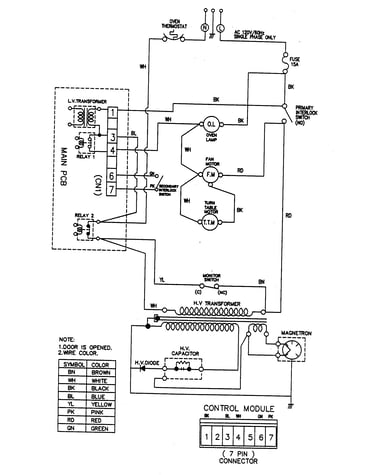

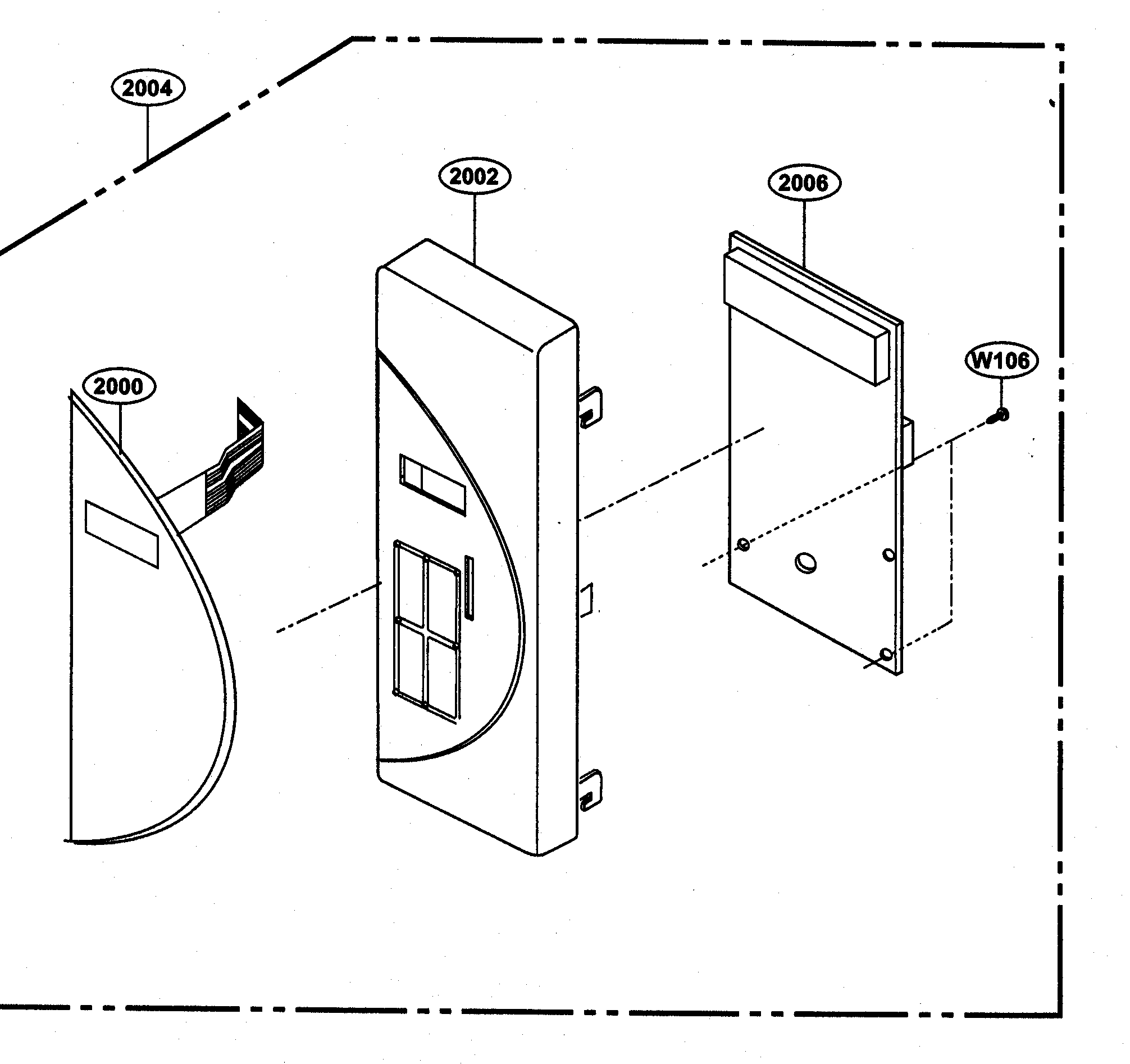

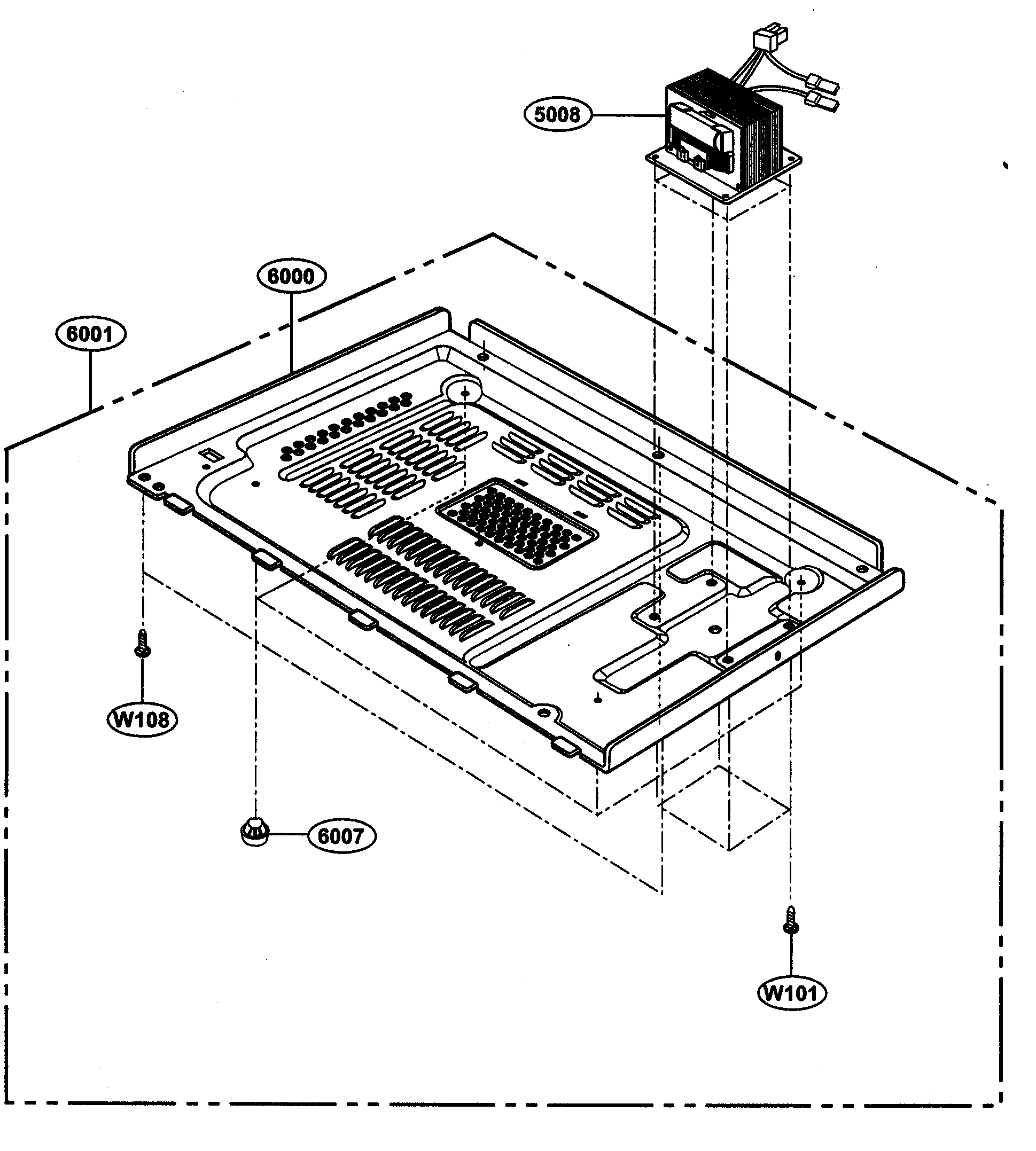

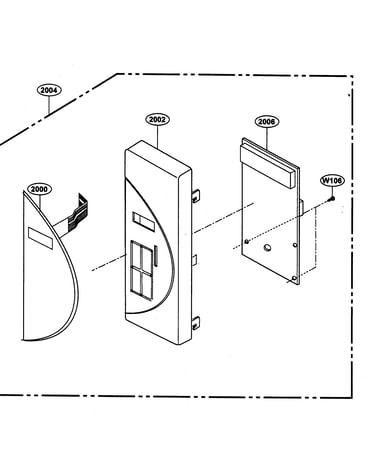

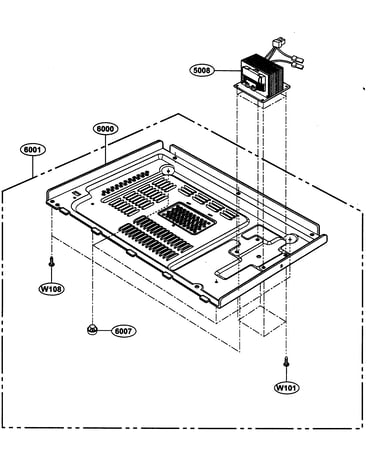

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 53 parts  |
Microwave High-voltage Capacitor (replaces 0czzw1h004l) 0CZZW1H004K
#5000

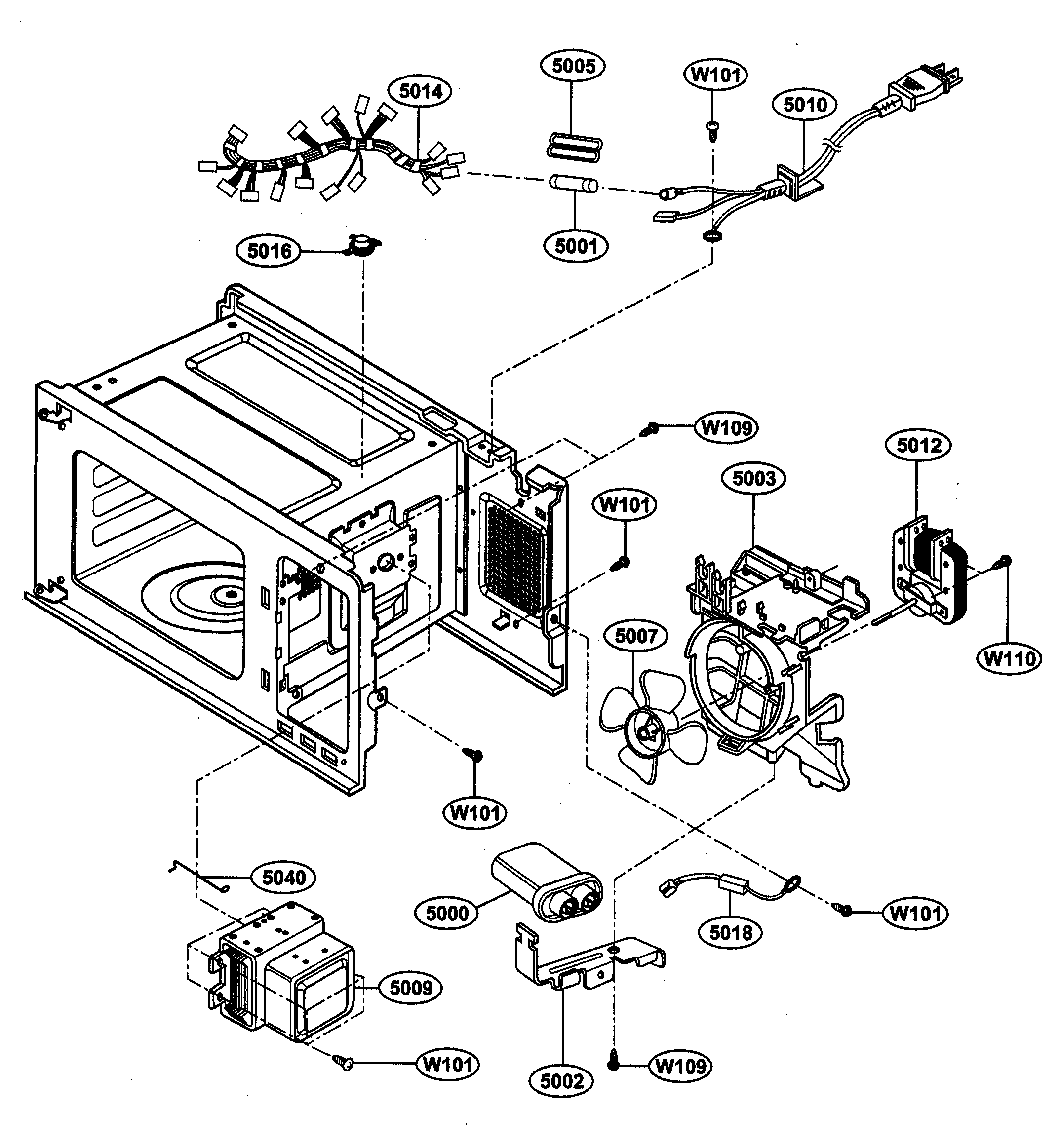

Oven interior parts diagram

Microwave high-voltage capacitor (replaces 0czzw1h004l)

Part #0CZZW1H004K

BEST SELLER
$29.72 |
17% OFF Phone Price : $35.72
In Stock
Microwave Door Interlock Switch 6600W1K003D
#4002

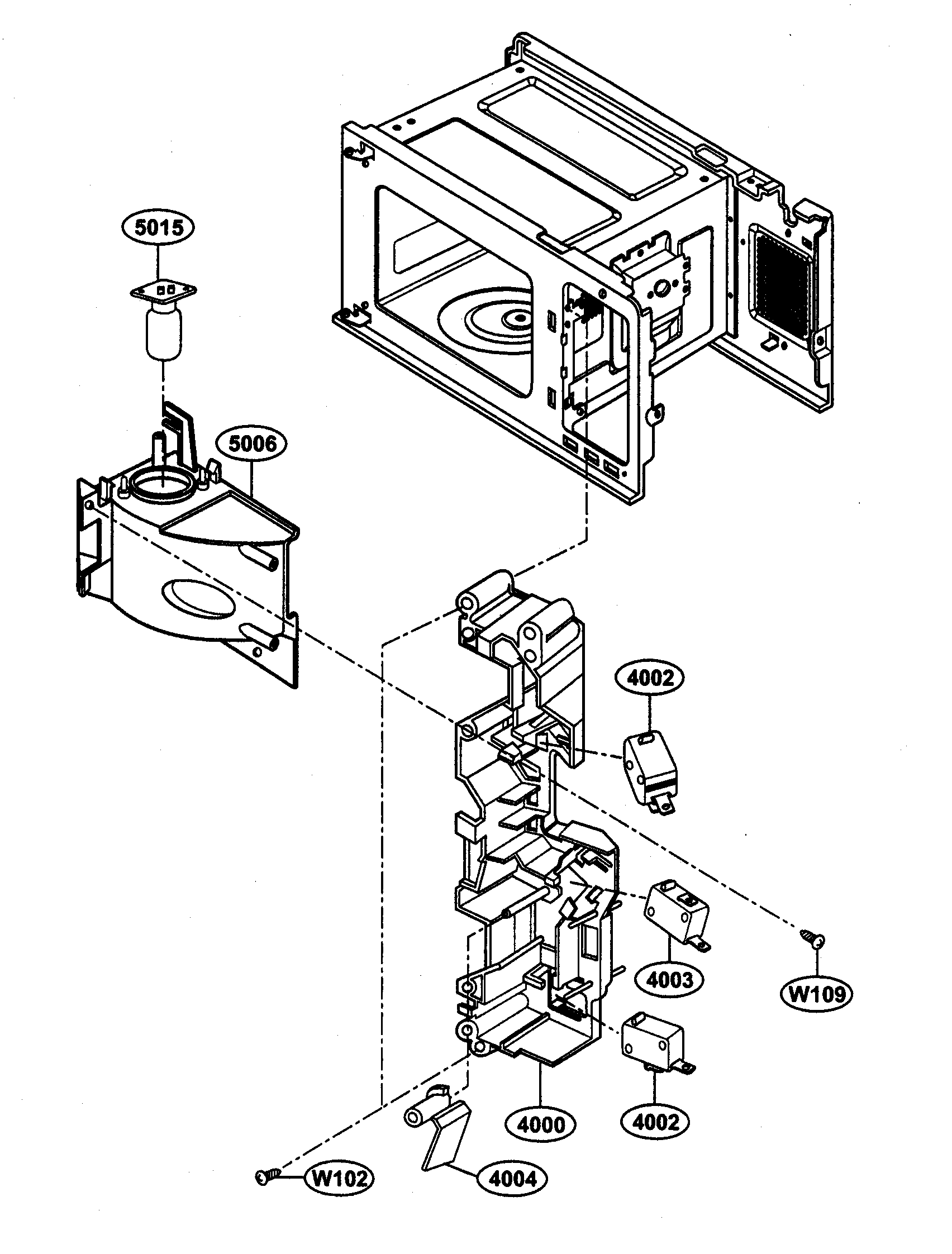

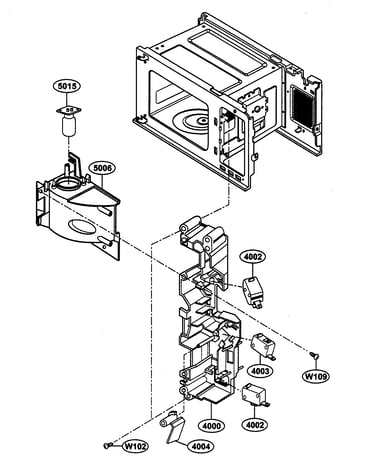

Suction guide parts diagram

Microwave door interlock switch

Part #6600W1K003D

Replaced by #6600W1K001D

?
Manufacturer substitution
This part replaces 6600W1K003D. Substitute parts can look different from the original.
BEST SELLER
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Us Pressed Steel Microwave Screw 1TTL0402818
#W109

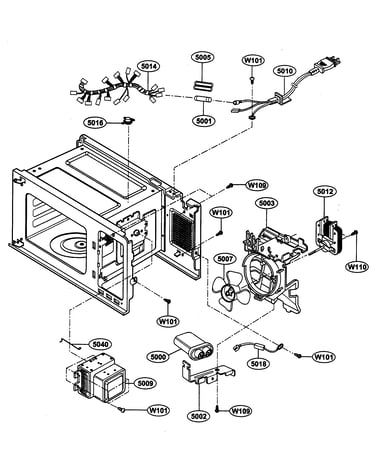

Oven interior parts diagram

Us pressed steel microwave screw

Part #1TTL0402818

This item is not returnable
$6.13 |
14% OFF Phone Price : $7.13
In Stock
Microwave Magnetron 2B71732F
#5009

Oven interior parts diagram

Microwave magnetron

Part #2B71732F

Replaced by #2B71732G

?
Manufacturer substitution
This part replaces 2B71732F. Substitute parts can look different from the original.
$99.80
In Stock
Primary Swtc 6600W1K003C
#4003

Suction guide parts diagram

Primary swtc

Part #6600W1K003C

Replaced by #6600W1K001B

?
Manufacturer substitution
This part replaces 6600W1K003C. Substitute parts can look different from the original.
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Door Frame 3213W1A033N
#1000

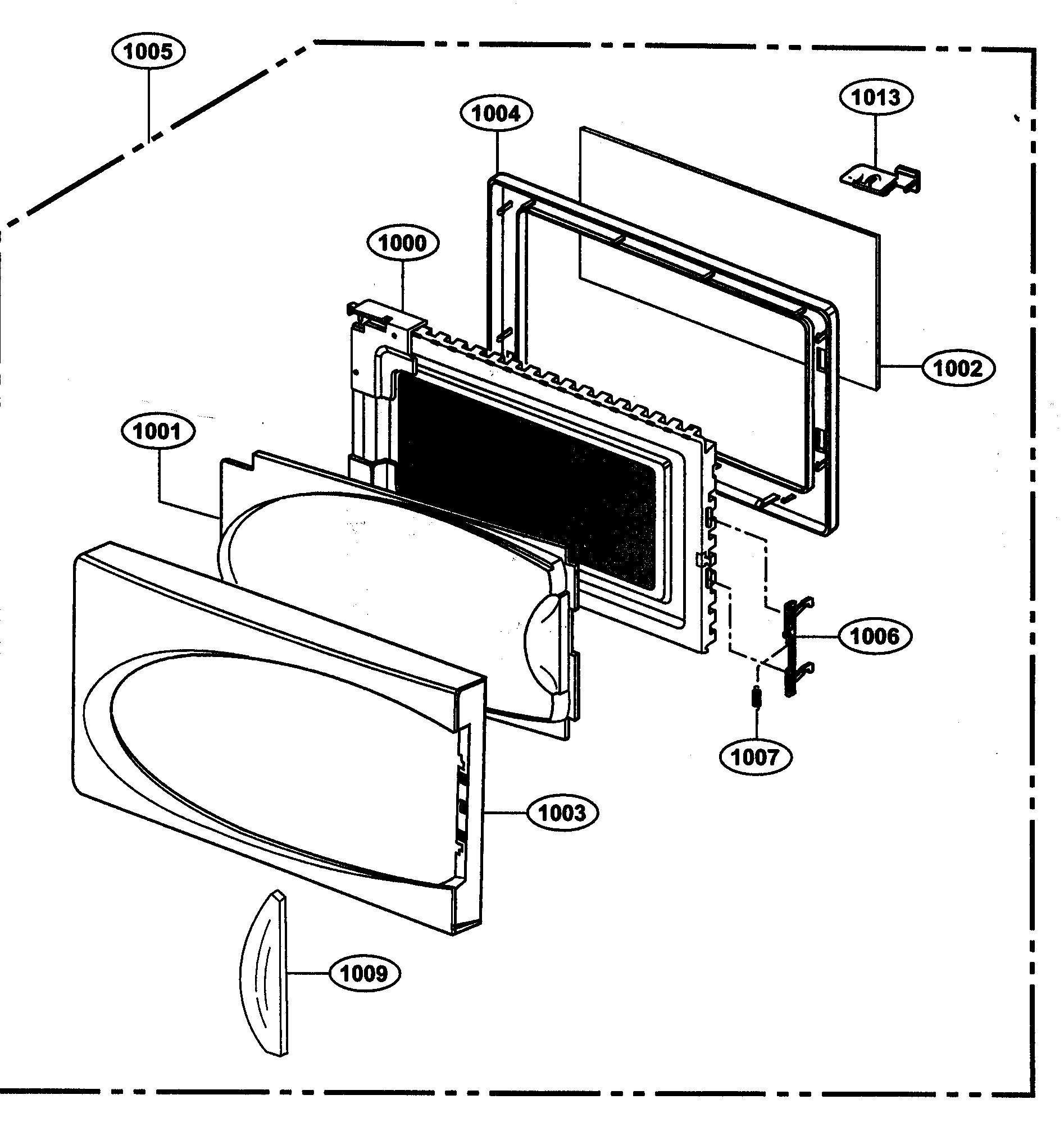

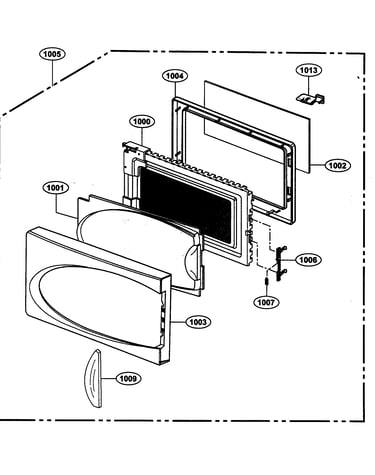

Door parts diagram

Door frame

Part #3213W1A033N

$77.00
In Stock
Kenmore Out Case 3112W1U032A
#3001

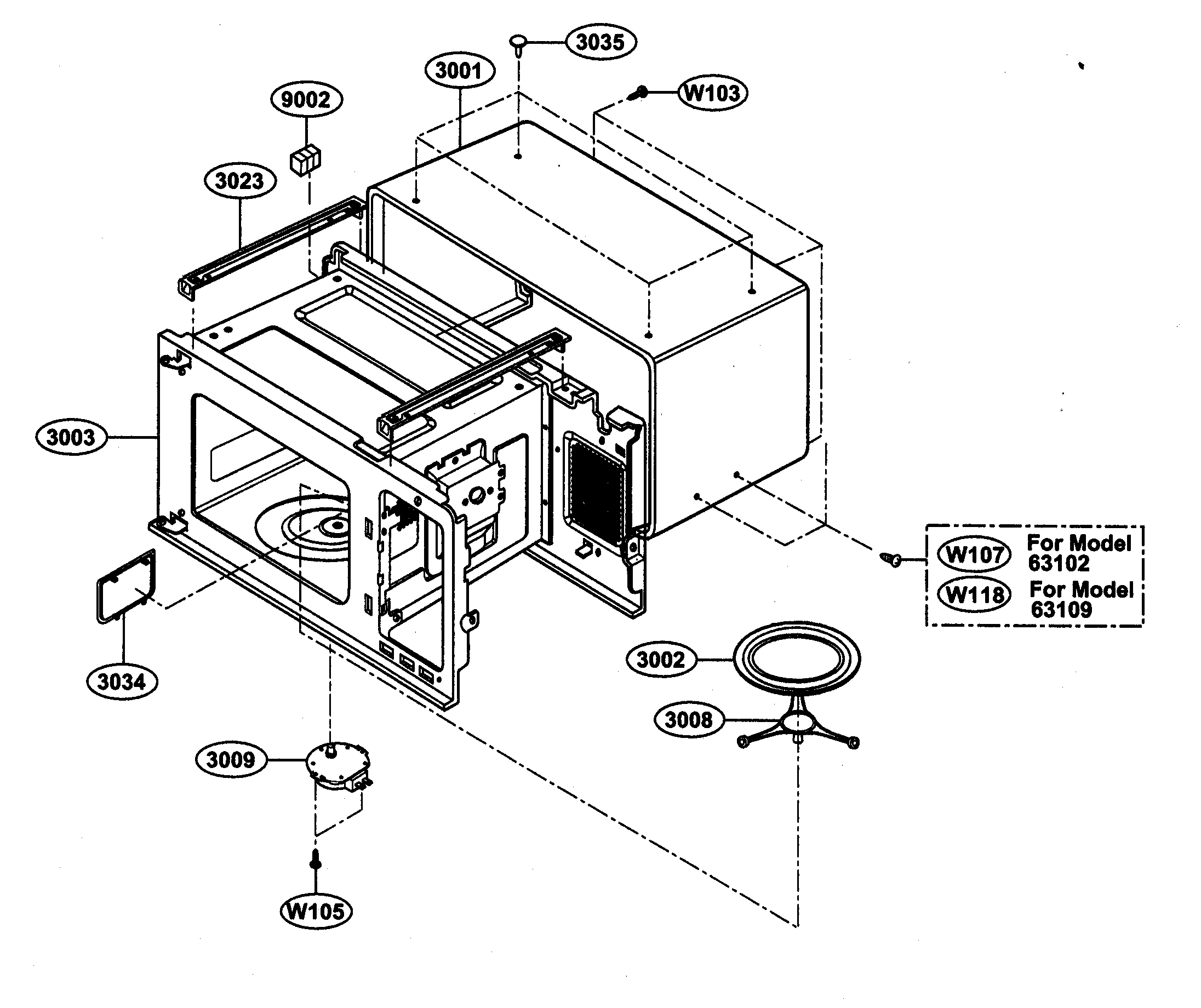

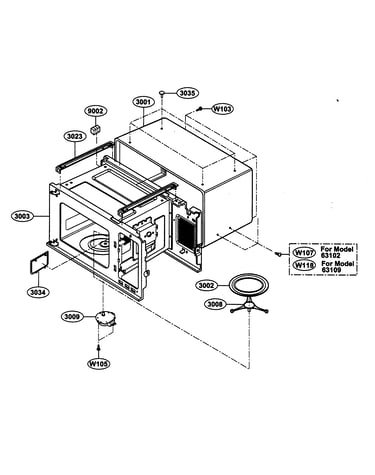

Oven cavity parts diagram

Kenmore out case

Part #3112W1U032A

$67.51
In Stock
Microwave Thermostat (replaces 6930wrt002f) 6930W1A003A
#5016

Oven interior parts diagram

Microwave thermostat (replaces 6930wrt002f)

Part #6930W1A003A

This item is not returnable
$10.27 |
16% OFF Phone Price : $12.27
In Stock
Supporter 4980W3A038A
#5040

Oven interior parts diagram

Supporter

Part #4980W3A038A

$8.29
In Stock
Template 4922W5A016A
#NI

Door parts diagram

Template

Part #4922W5A016A

$8.29
In Stock
