Room Air Conditioner

Model # AC066N7A1 Official White-Westinghouse room air conditioner - lw34090390

Here are the diagrams and repair parts for Official White-Westinghouse AC066N7A1 room air conditioner - lw34090390, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 75 parts  |
Filter A000265301
#1

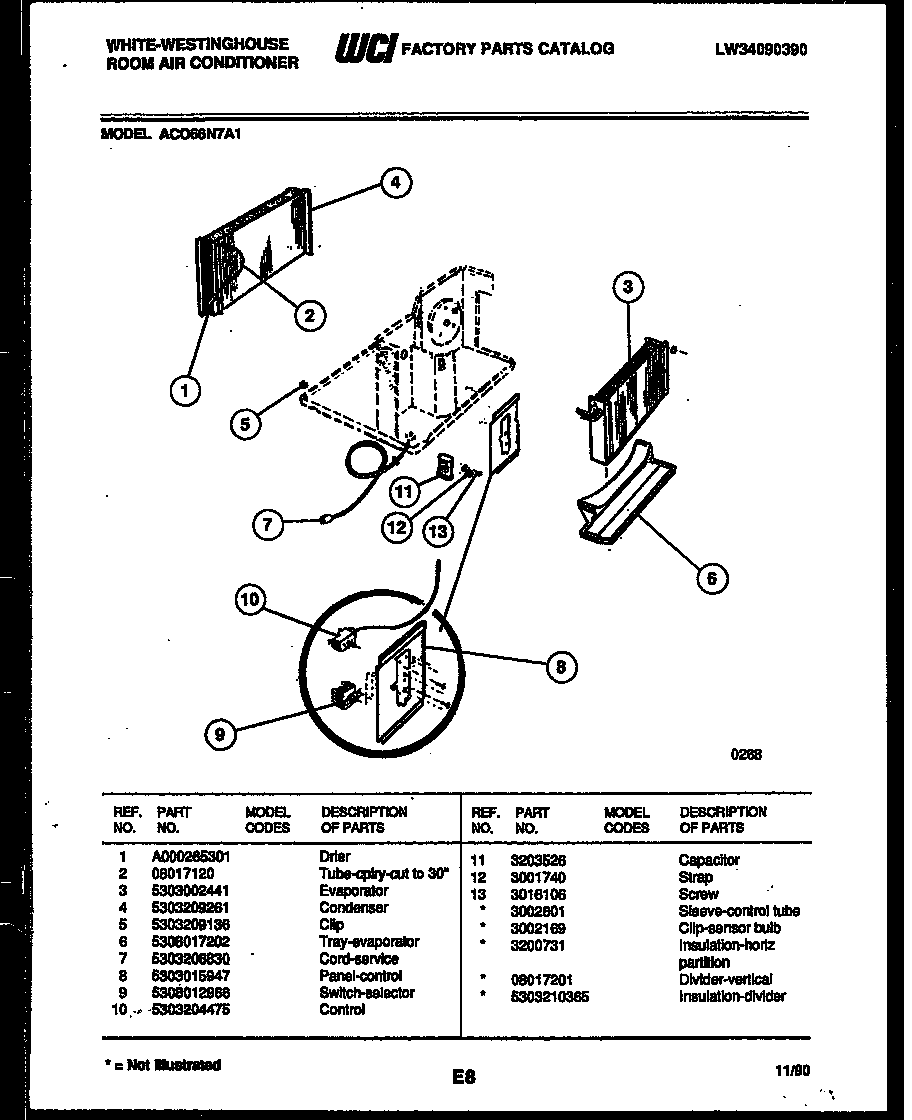

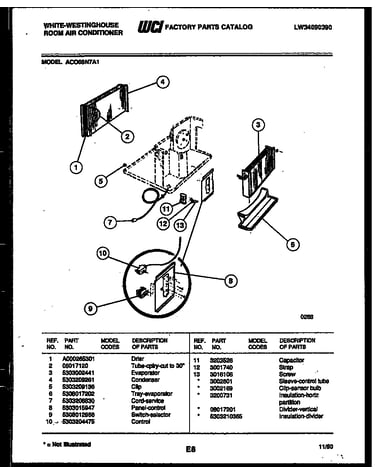

Electrical parts diagram

Filter

Part #A000265301

Replaced by #5300265301

?
Manufacturer substitution
This part replaces A000265301. Substitute parts can look different from the original.
$212.62
In Stock

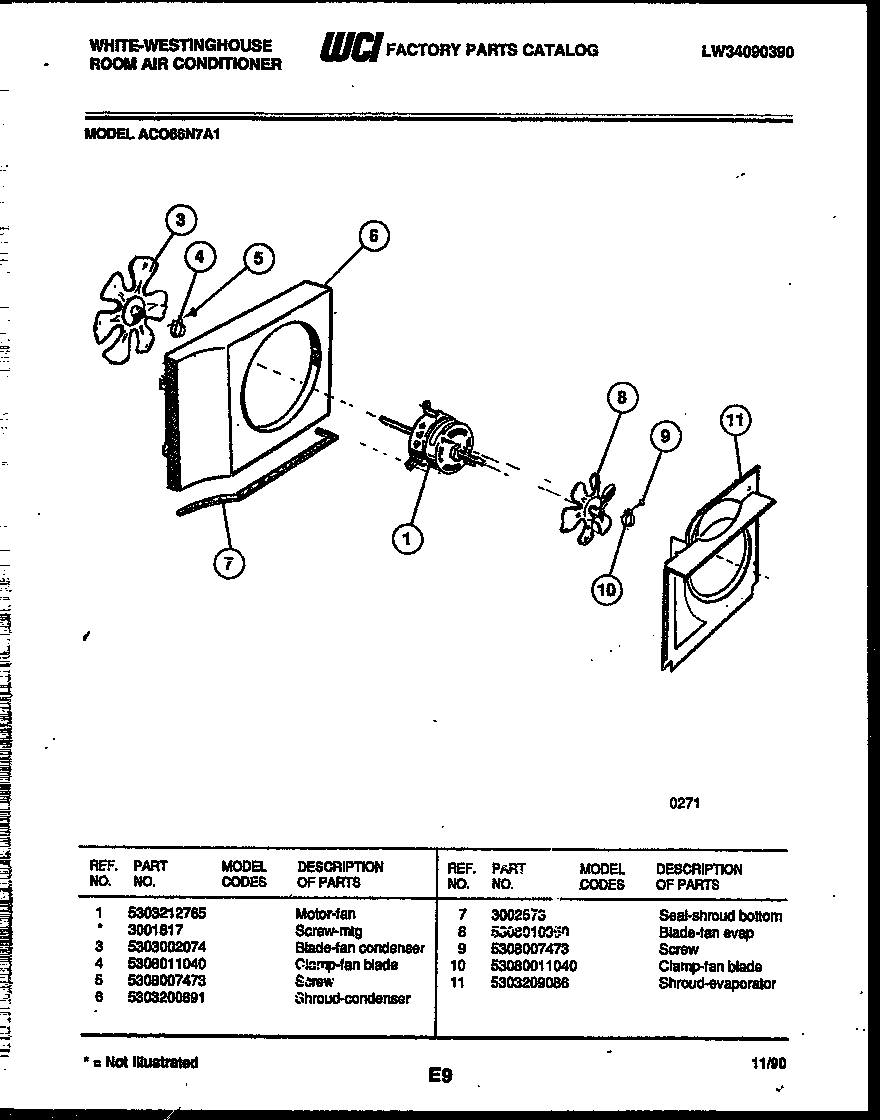

Screw 5308007473
Screw

Part #5308007473

Replaced by #5304455651

?
Manufacturer substitution
This part replaces 5308007473. Substitute parts can look different from the original.
$13.26
In Stock
Washer 3007766
#13

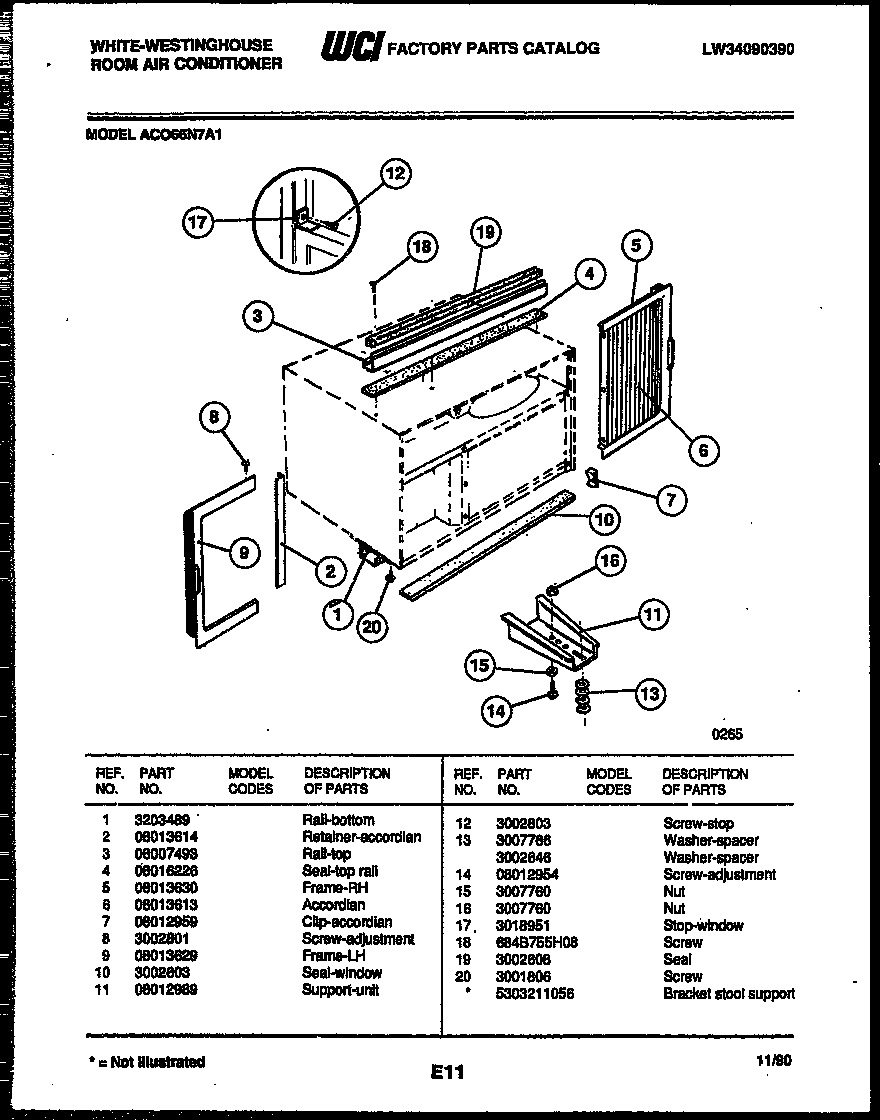

Cabinet and installation parts diagram

Washer

Part #3007766

This item is not returnable
$2.29
In Stock
Screw 08012954
#14

Cabinet and installation parts diagram

Screw

Part #08012954

This item is not returnable
$2.16
In Stock
Kenmore Support (replaces 000253701, 000253701, 253701, 253701, A000253701, Wa253701) 08007493
#3

Cabinet and installation parts diagram

Kenmore support (replaces 000253701, 000253701, 253701, 253701, a000253701, wa253701)

Part #08007493

$12.99
In Stock
Gasket 3002603
#10

Cabinet and installation parts diagram

Gasket

Part #3002603

Replaced by #5304407729

?
Manufacturer substitution
This part replaces 3002603. Substitute parts can look different from the original.
$25.17
In Stock
T Stat 5303204475
#10

Electrical parts diagram

T stat

Part #5303204475

The manufacturer no longer makes this part, and there's no substitute part

Panel 3016096
#8

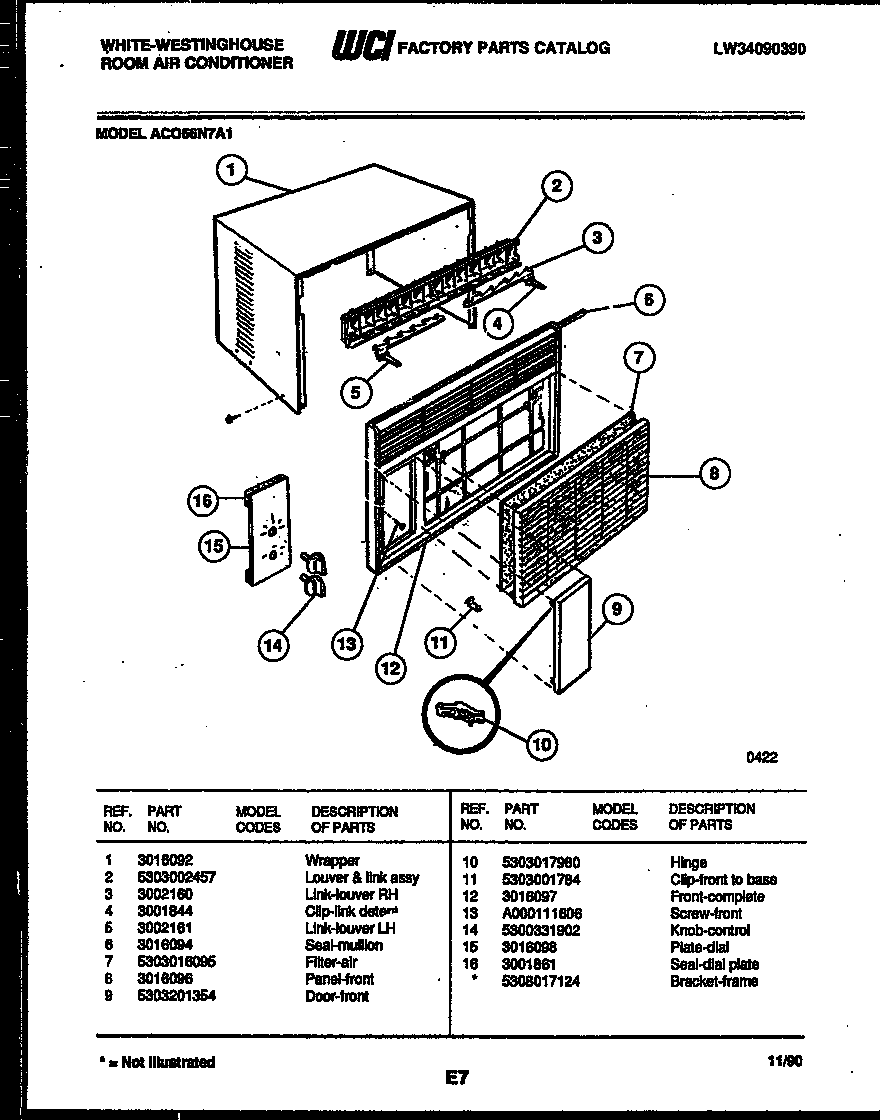

Cabinet parts diagram

Panel

Part #3016096

The manufacturer no longer makes this part, and there's no substitute part

Nut 5303015946
#7

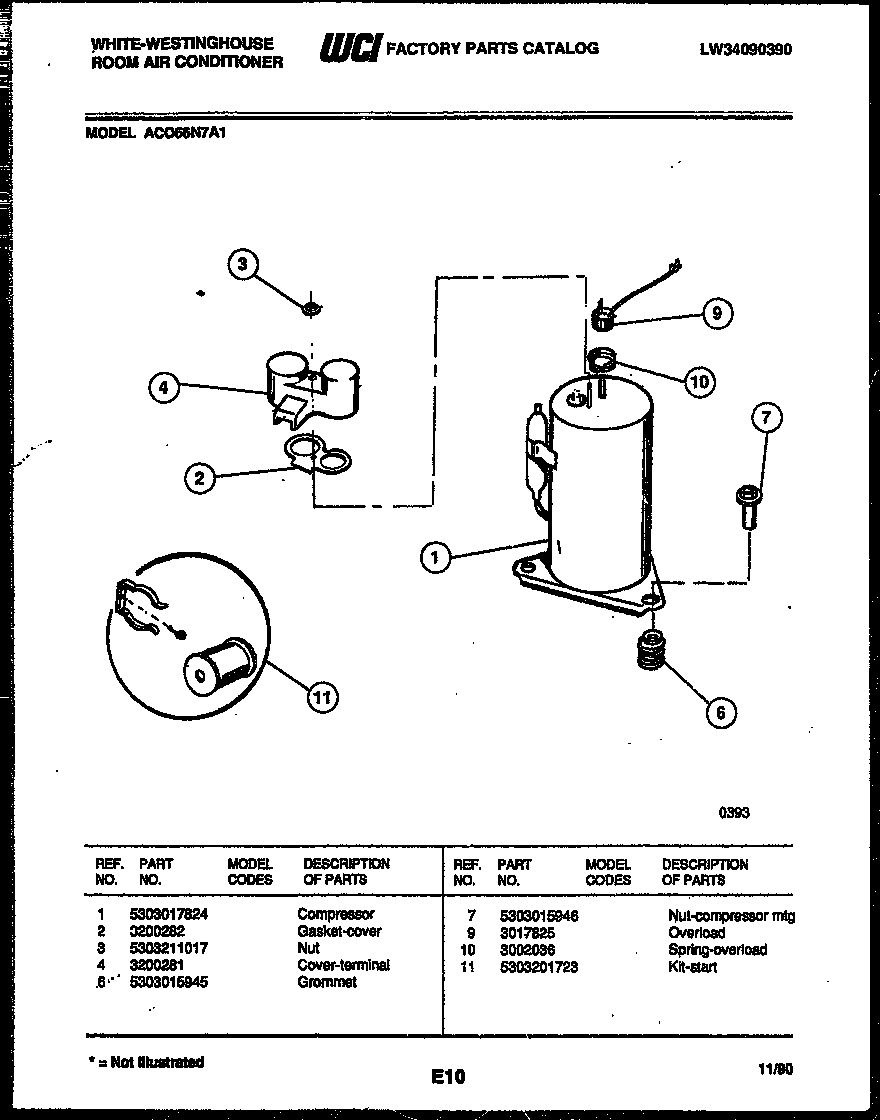

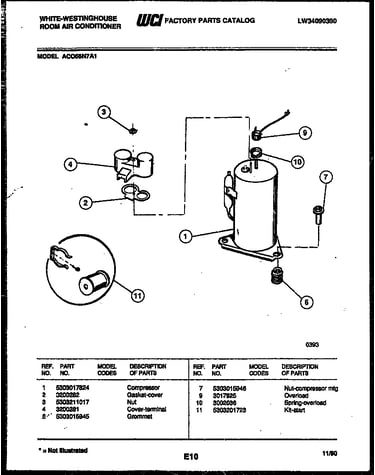

Compressor parts diagram

Nut

Part #5303015946

The manufacturer no longer makes this part, and there's no substitute part

Servce Cord 5303206830
#7

Electrical parts diagram

Servce cord

Part #5303206830

The manufacturer no longer makes this part, and there's no substitute part
