Dynasty
Gas Grill

Model # DOBQ3000B Official Dynasty gas grill

Here are the diagrams and repair parts for Official Dynasty DOBQ3000B gas grill, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 77 parts  |
Broiler Pan 70001090
#19

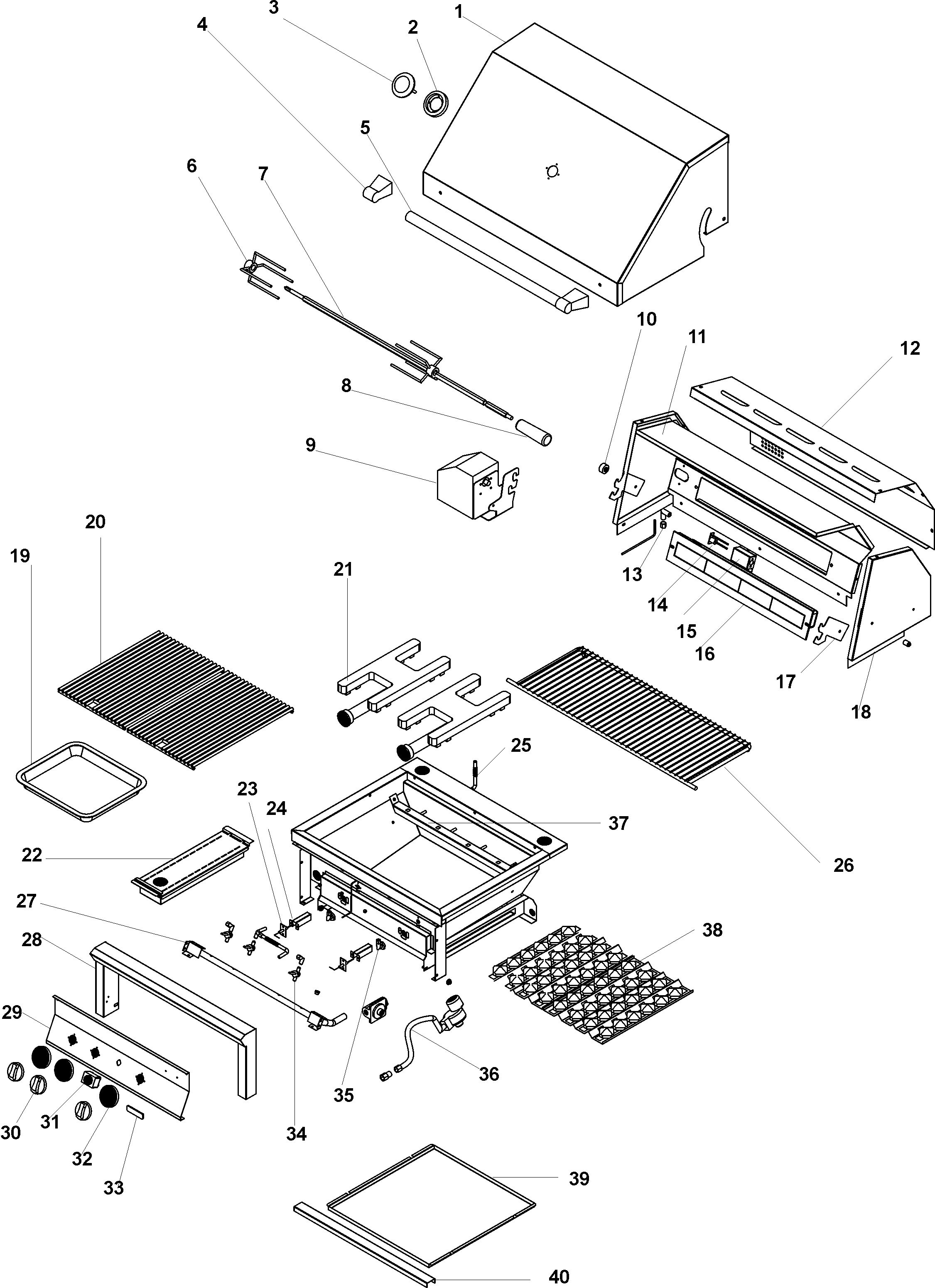

Dynasty bbq diagram

Broiler pan

Part #70001090

Replaced by #4396923

?
Manufacturer substitution
This part replaces 70001090. Substitute parts can look different from the original.
$29.55 |
17% OFF Phone Price : $35.55
In Stock
Screw,6-32 X 70002627
Screw,6-32 x

Part #70002627

This item is not returnable
$3.40
In Stock
Nut W/ Lock 70002638
Nut w/ lock

Part #70002638

This item is not returnable
$4.22
In Stock
Igniter Hood 70002445
#15

Dynasty bbq diagram

Igniter hood

Part #70002445

The manufacturer no longer makes this part, and there's no substitute part

Infra Panel 70002626
#11

Dynasty bbq diagram

Infra panel

Part #70002626

The manufacturer no longer makes this part, and there's no substitute part

Electronic Igniter 70001726
#23

Dynasty bbq diagram

Electronic igniter

Part #70001726

The manufacturer no longer makes this part, and there's no substitute part

Motor Bracket 70002664
#9

Dynasty bbq diagram

Motor bracket

Part #70002664

The manufacturer no longer makes this part, and there's no substitute part

Lp Regulator 70002473
#36A

Dynasty bbq diagram

Lp regulator

Part #70002473

The manufacturer no longer makes this part, and there's no substitute part

Rotisserie,s 70002635
#7

Dynasty bbq diagram

Rotisserie,s

Part #70002635

The manufacturer no longer makes this part, and there's no substitute part

Sleeve (3/8' 70001755
#25B

Dynasty bbq diagram

Sleeve (3/8'

Part #70001755

The manufacturer no longer makes this part, and there's no substitute part
