Hotpoint
Room Air Conditioner

Model # KD923DTX1 Official Hotpoint room air conditioner

Here are the diagrams and repair parts for Official Hotpoint KD923DTX1 room air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 257 parts  |
Screw WZ4X386

#NI

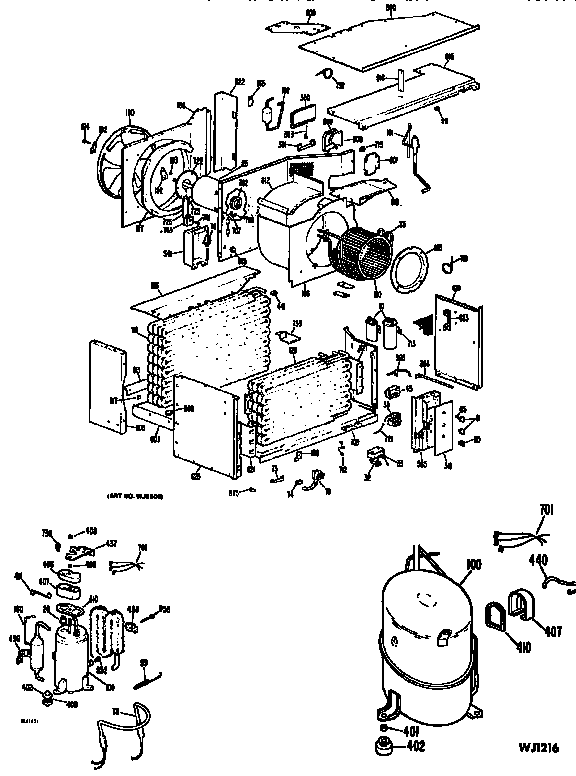

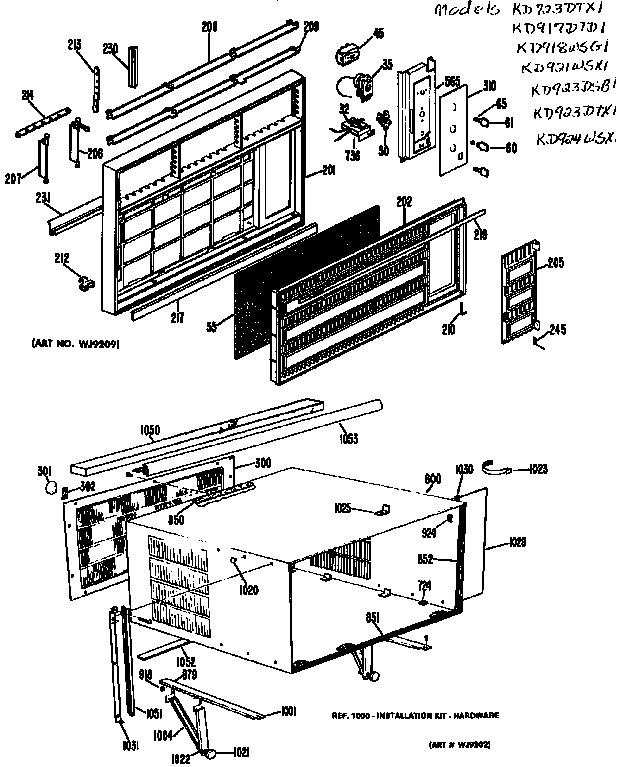

All parts diagram

Screw

Part #WZ4X386

This item is not returnable
$3.49
In Stock
Screw WZ4X288

#724

All parts diagram

Screw

Part #WZ4X288

This item is not returnable
$3.49
In Stock
Spring Gr WJ2X258

#400

All parts diagram

Spring gr

Part #WJ2X258

$17.49
In Stock
Screw WZ4X32

#977

All parts diagram

Screw

Part #WZ4X32

This item is not returnable
$6.49
In Stock
Nut WZ8X11

#NI

All parts diagram

Nut

Part #WZ8X11

This item is not returnable
$4.49
In Stock
Screw WZ4X362

#NI

All parts diagram

Screw

Part #WZ4X362

This item is not returnable
$4.99
In Stock
Clamp Tube Seal WJ79X340

#809

All parts diagram

Clamp tube seal

Part #WJ79X340

The manufacturer no longer makes this part, and there's no substitute part

Link WJ71X515

#213

All parts diagram

Link

Part #WJ71X515

The manufacturer no longer makes this part, and there's no substitute part

Accumulator Tube WJ62X293

#NI

All parts diagram

Accumulator tube

Part #WJ62X293

The manufacturer no longer makes this part, and there's no substitute part

Tube Plug 5/16" I.d. WJ1X737

#875

All parts diagram

Tube plug 5/16" i.d.

Part #WJ1X737

The manufacturer no longer makes this part, and there's no substitute part
