Frigidaire
Countertop Microwave

Model # FMV145KS2 Official Frigidaire microwave

Here are the diagrams and repair parts for Official Frigidaire FMV145KS2 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

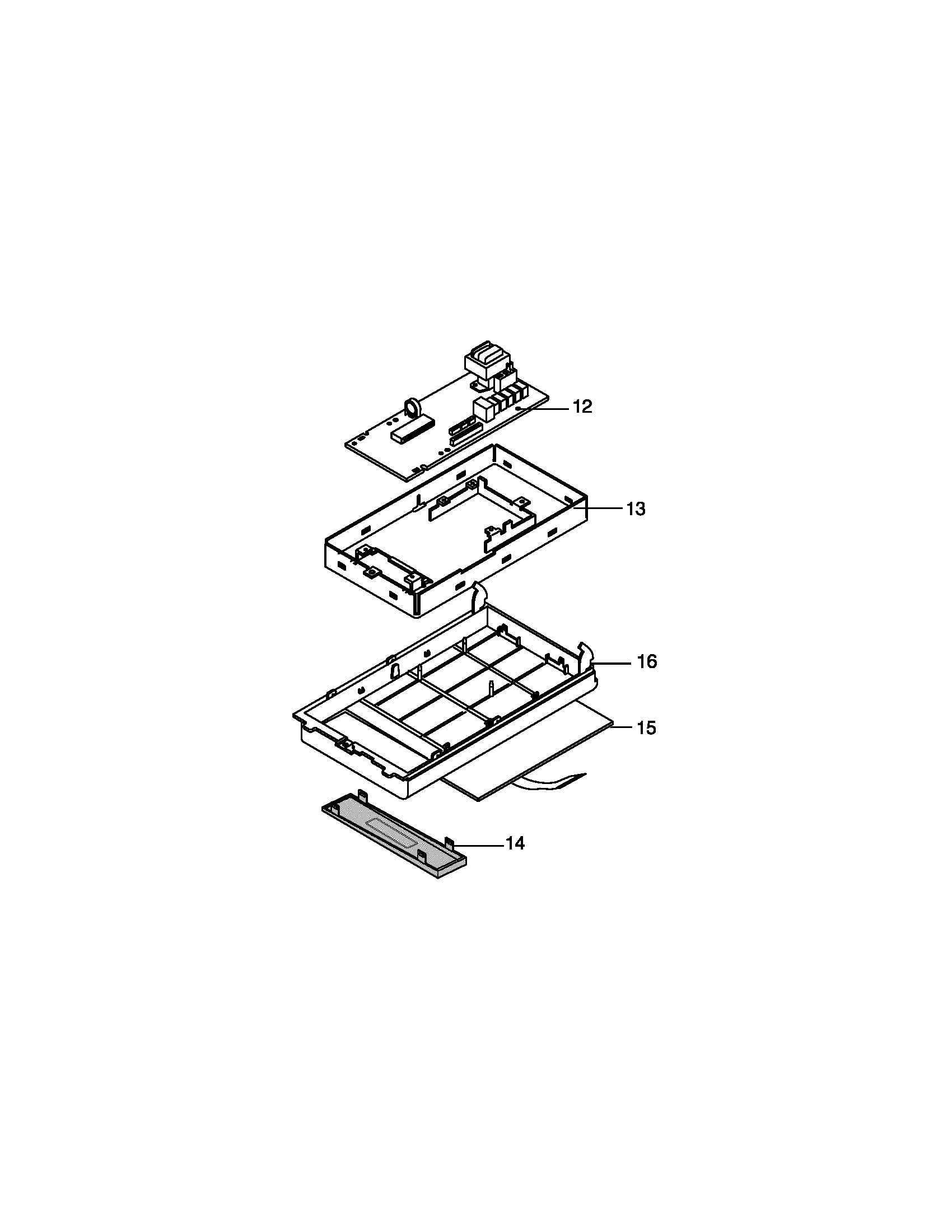

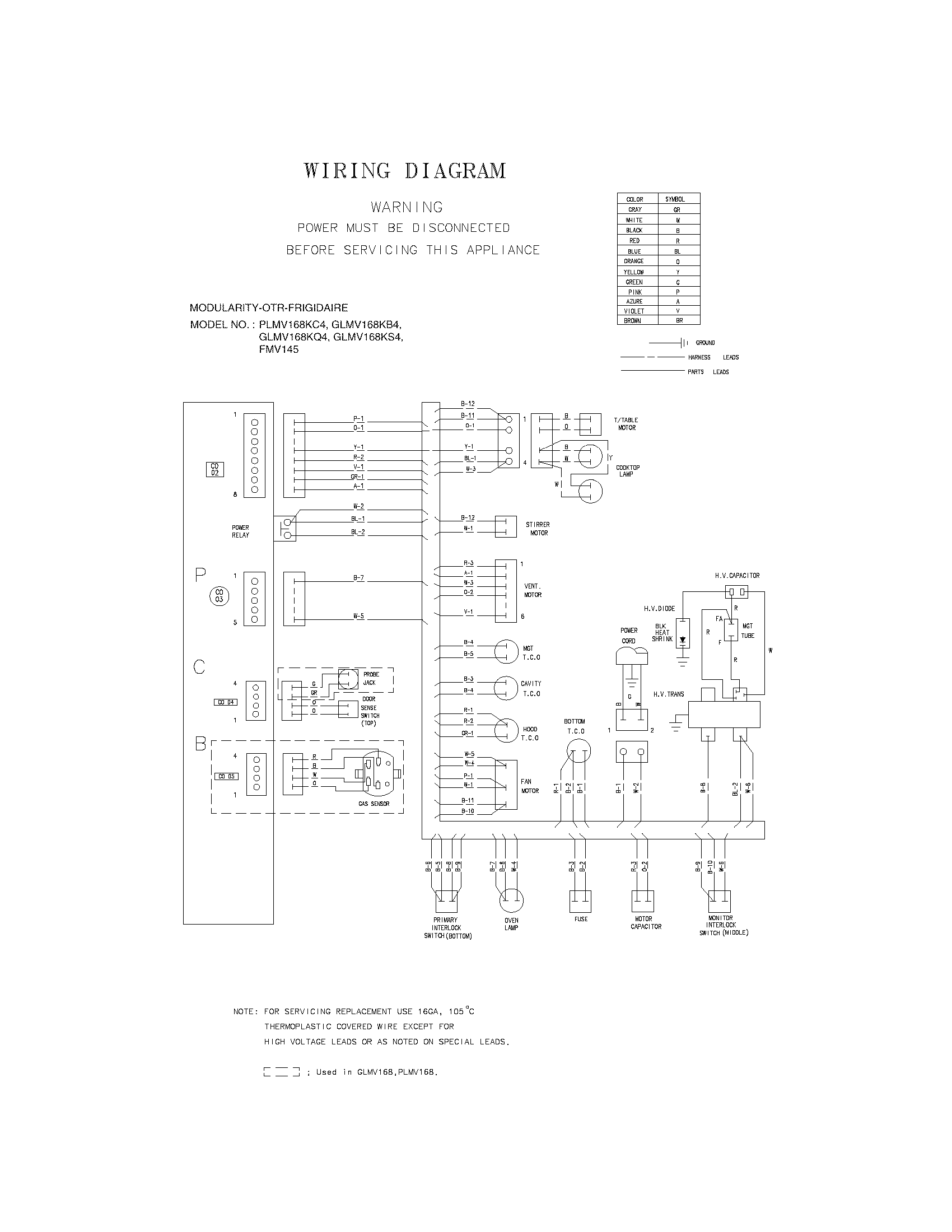

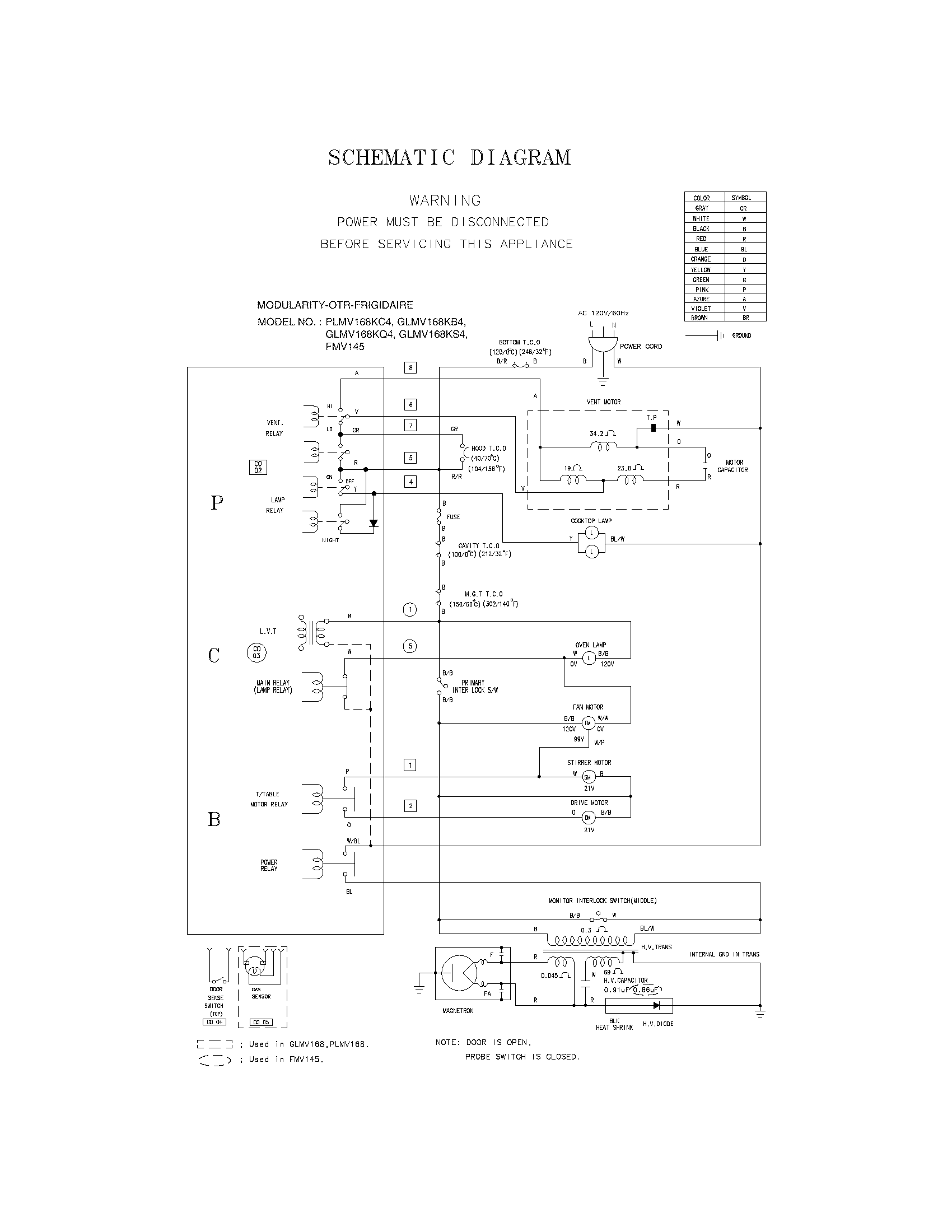

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 99 parts  |

Bracket-cook 5304408973
#23

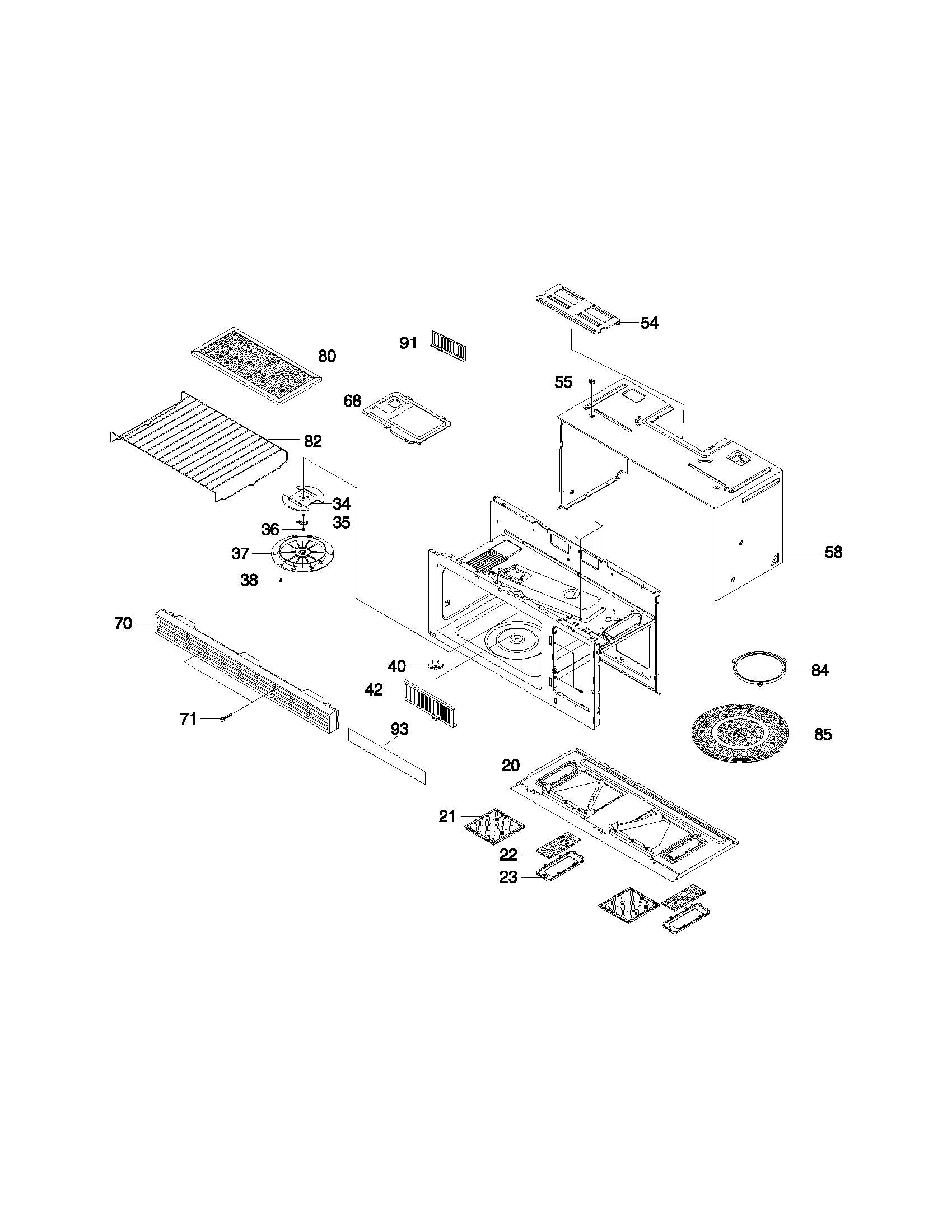

Body diagram

Bracket-cook

Part #5304408973

In Stock
Holder-tip 5304408992
#36

Body diagram

Holder-tip

Part #5304408992

In Stock
Damper 5304408998
#52

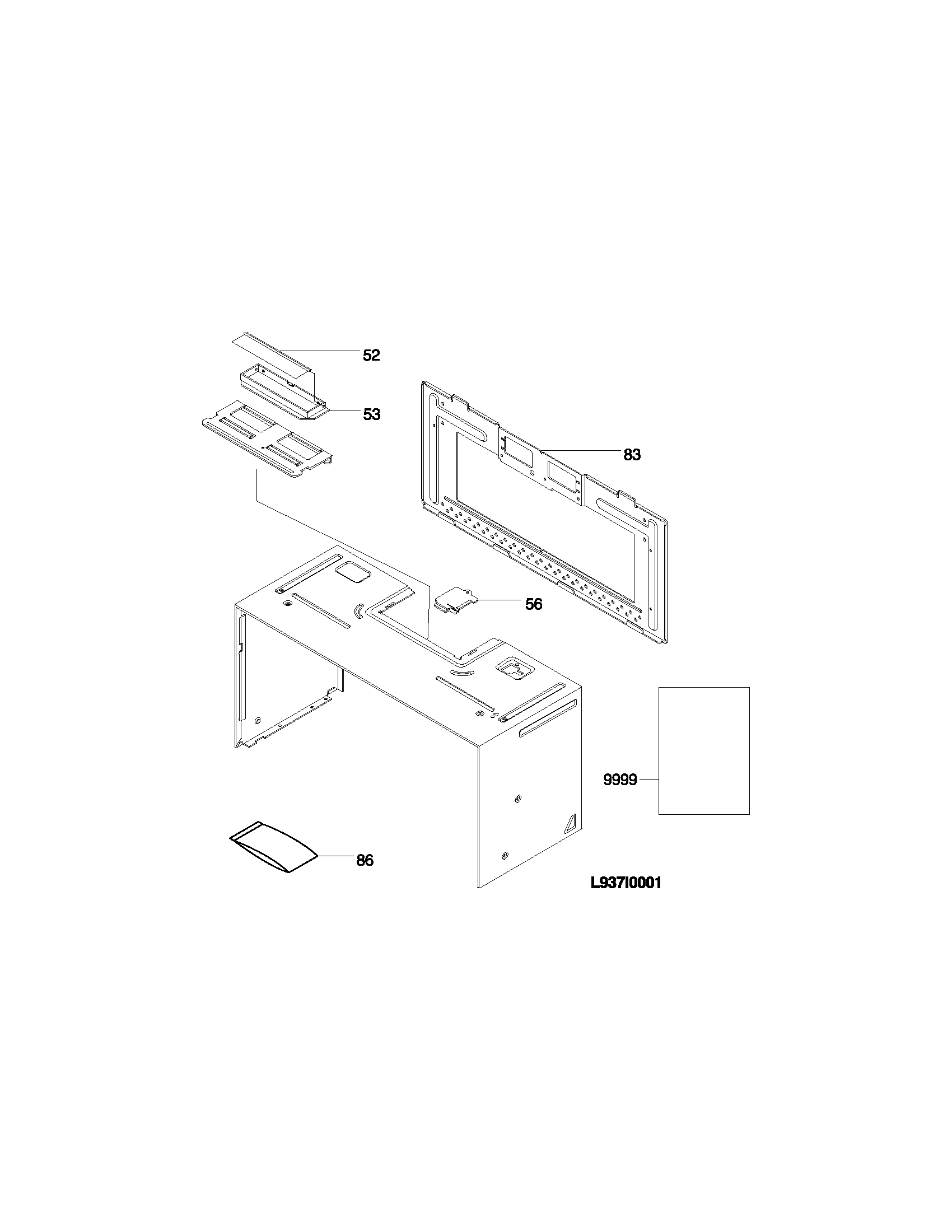

Installation diagram

Damper

Part #5304408998

In Stock
Power Bracket 5304408997
#56

Installation diagram

Power bracket

Part #5304408997

In Stock
Holder 5304423382
#46A

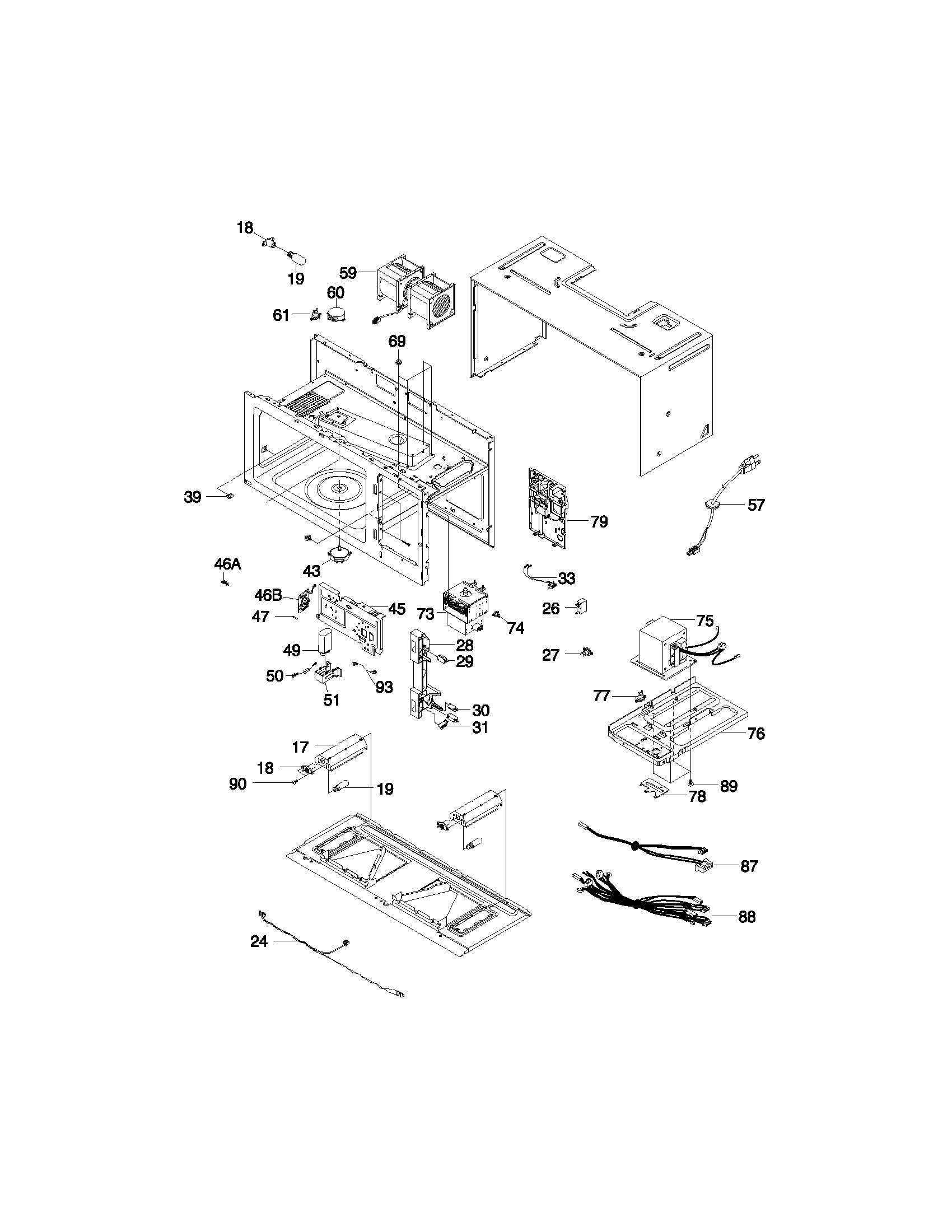

Functional parts diagram

Holder

Part #5304423382

In Stock
Out Wrapper 5304423528
#58

Body diagram

Out wrapper

Part #5304423528

In Stock
Out Wrapper 5304408975
#58

Body diagram

Out wrapper

Part #5304408975

In Stock
Door 5304423511
#9

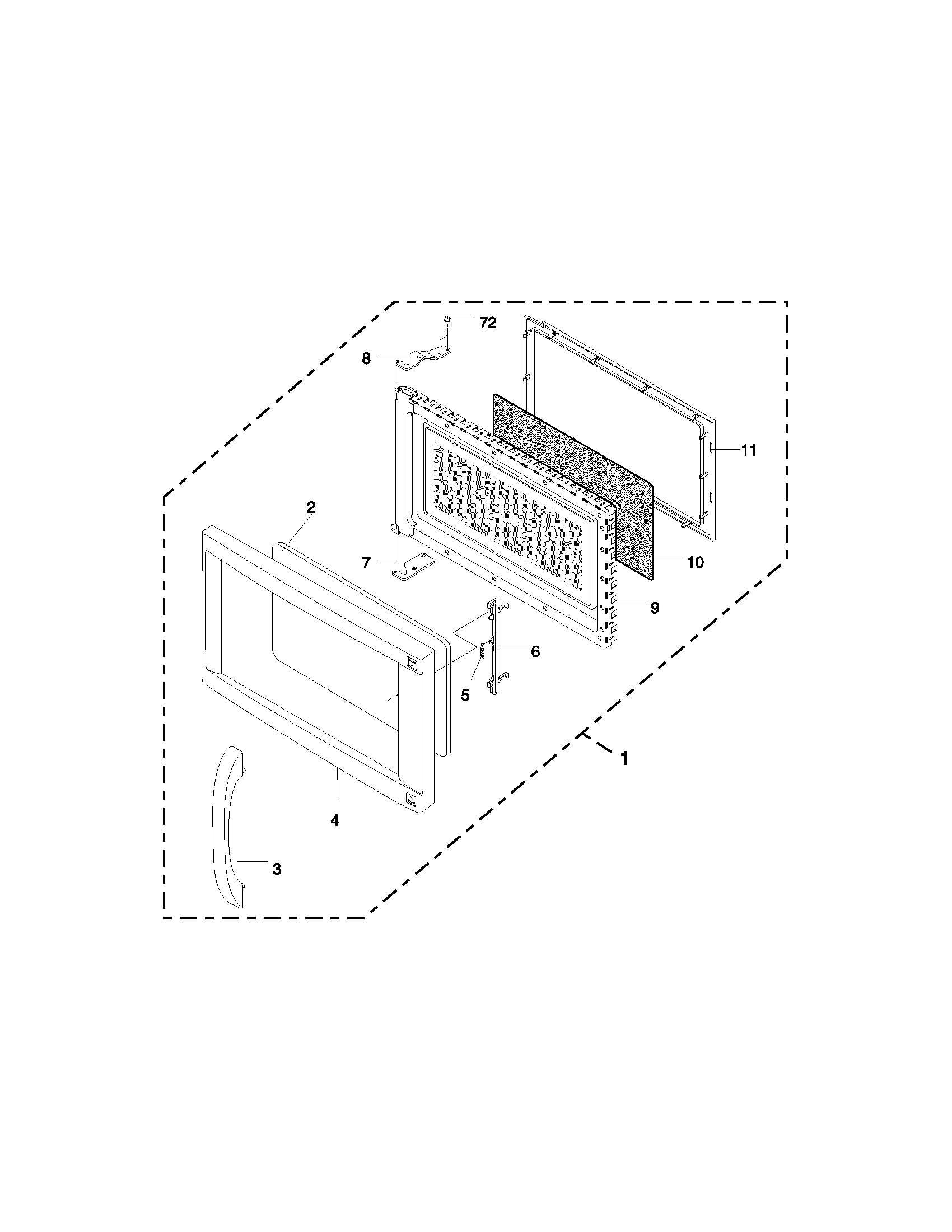

Door diagram

Door

Part #5304423511

In Stock
Magnet Screw 5304408962
#69

Functional parts diagram

Magnet screw

Part #5304408962

In Stock
Microwave Base Plate (black) 5304408972
#20

Body diagram

Microwave base plate (black)

Part #5304408972

In Stock
