White-Westinghouse
Room Air Conditioner

Model # WAS186P2K2 Official White-Westinghouse room air conditioner - 5995247433

Here are the diagrams and repair parts for Official White-Westinghouse WAS186P2K2 room air conditioner - 5995247433, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Bracket Screw 3015312

#NI

All parts diagram

Bracket screw

Part #3015312

Replaced by #5303293767

?
Manufacturer substitution
This part replaces 3015312. Substitute parts can look different from the original.
This item is not returnable
$5.80
In Stock
Room Air Conditioner Screw 5303015427
Room air conditioner screw

Part #5303015427

Replaced by #134178901

?
Manufacturer substitution
This part replaces 5303015427. Substitute parts can look different from the original.
$14.69
In Stock
Divider 3015321
#11

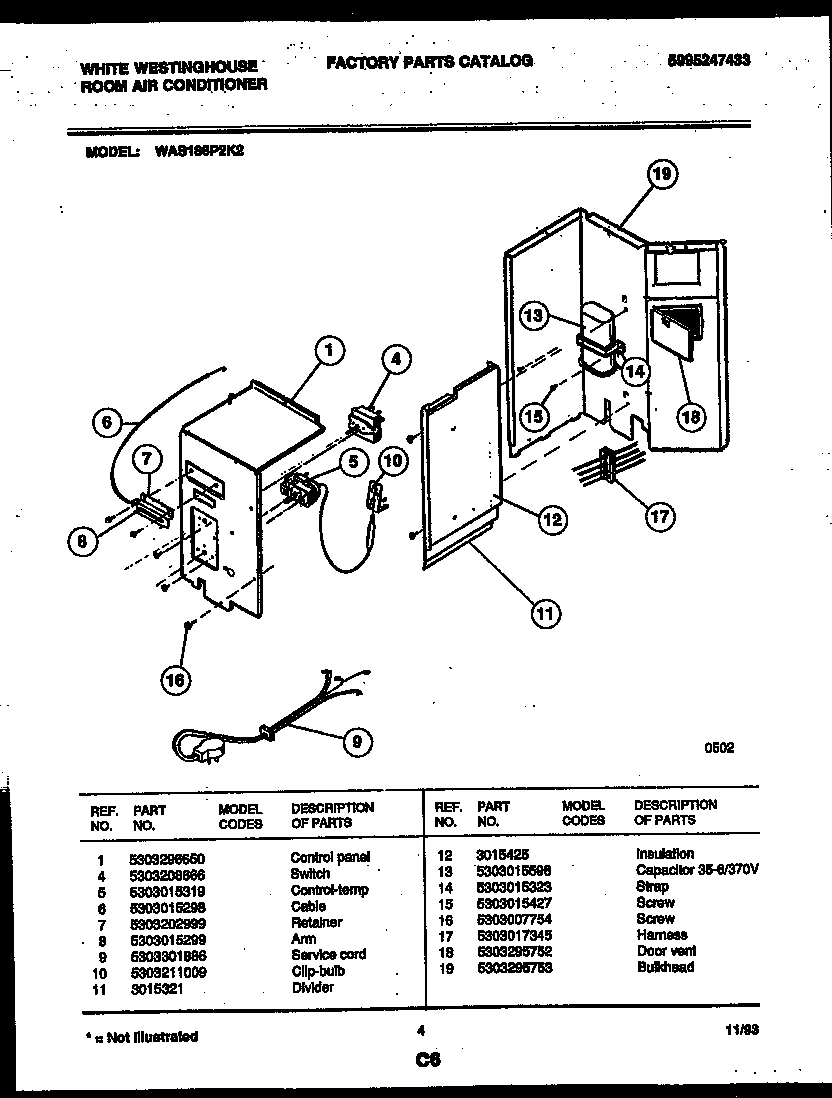

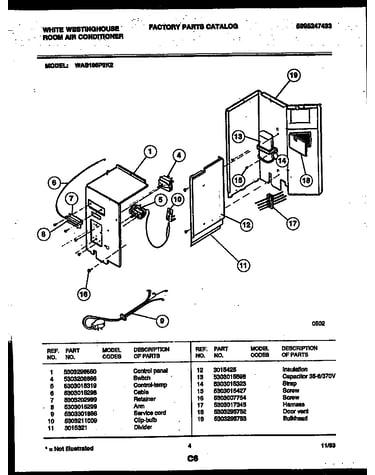

Electrical parts diagram

Divider

Part #3015321

This item is not returnable
$4.79
In Stock
Universal/multiflex (frigidaire) Partition 5303295753
#19

Electrical parts diagram

Universal/multiflex (frigidaire) partition

Part #5303295753

$32.49
In Stock
Westinghouse Room Air Conditioner Filter Dryer 5300265301
#12

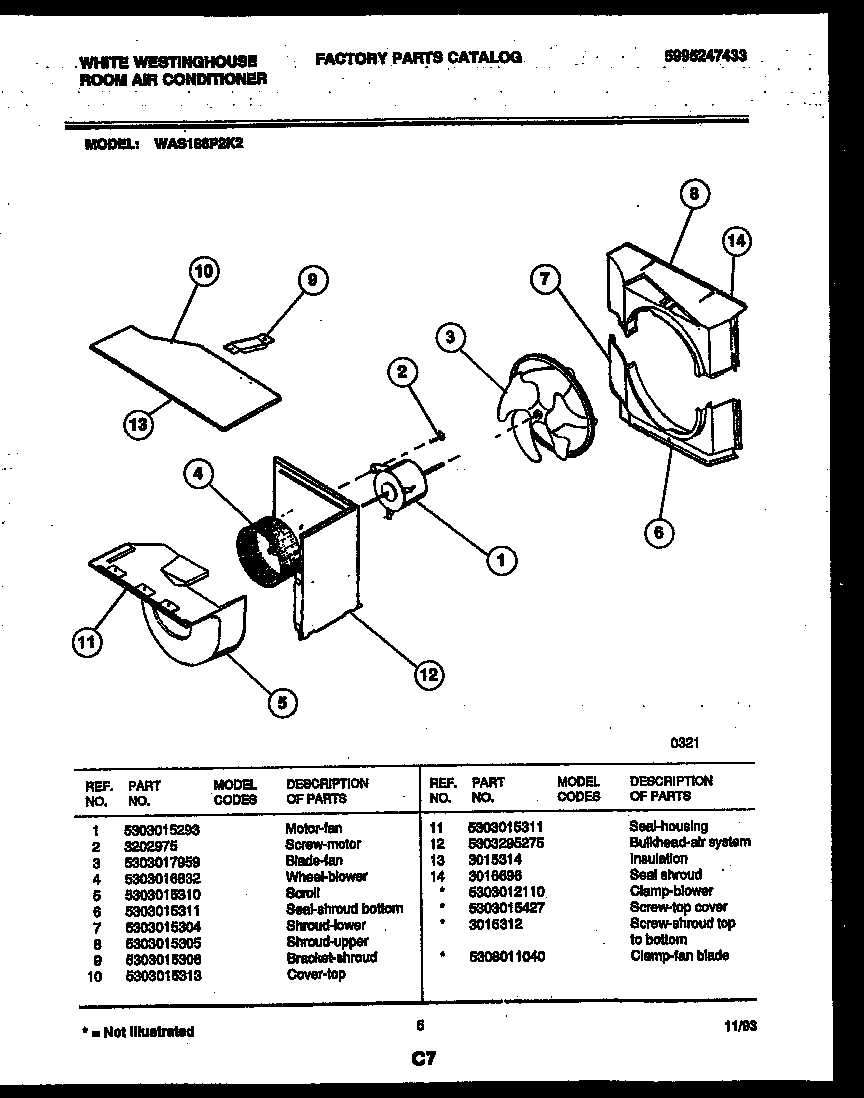

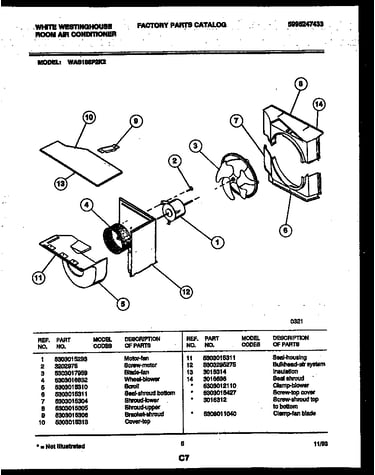

Air handling parts diagram

Westinghouse room air conditioner filter dryer

Part #5300265301

$212.62
In Stock
Spacer 5303211009
#10

Electrical parts diagram

Spacer

Part #5303211009

This item is not returnable
$3.24
In Stock
Kelvinator Screw 3001802
#12A

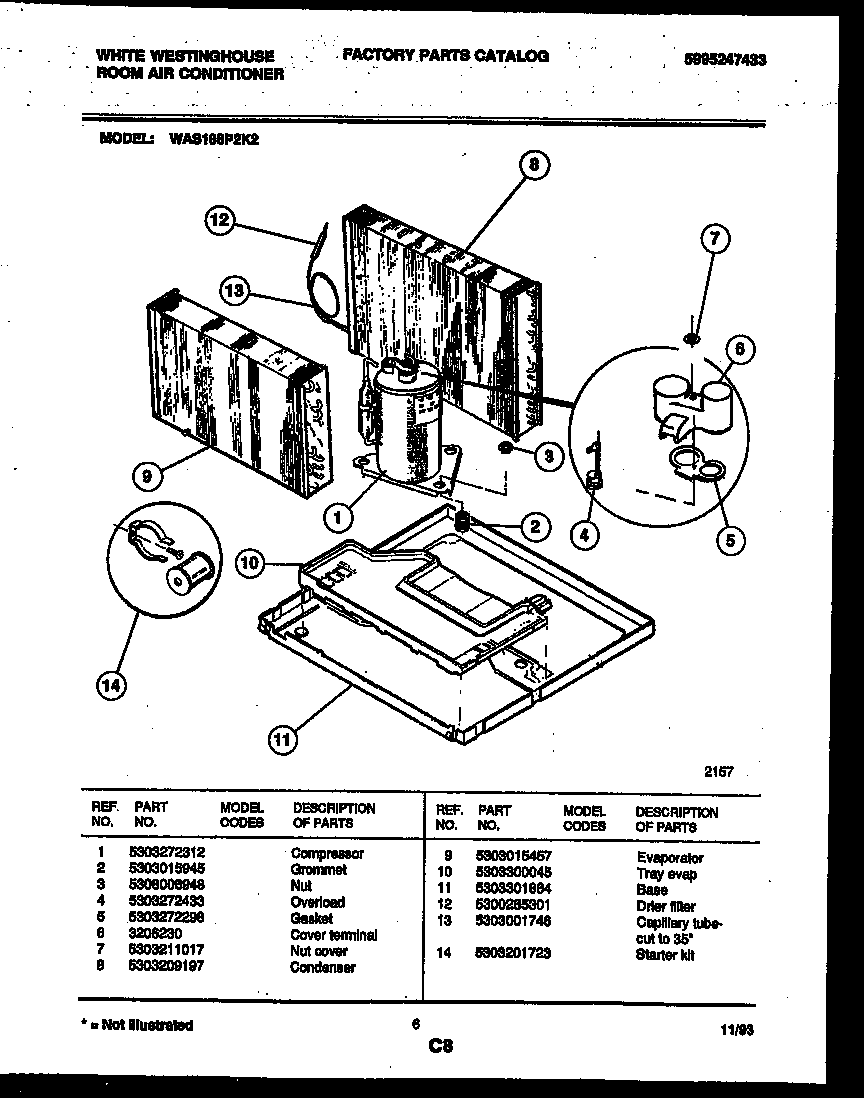

System parts diagram

Kelvinator screw

Part #3001802

This item is not returnable
$2.16
In Stock
Gasket Panel 5303302765
#14

System parts diagram

Gasket panel

Part #5303302765

This item is not returnable
$3.49
In Stock
Seal-top Rai 5303302764
#4

System parts diagram

Seal-top rai

Part #5303302764

$9.99
In Stock
Screw 3202975
#2

Electrical parts diagram

Screw

Part #3202975

Replaced by #5304410881

?
Manufacturer substitution
This part replaces 3202975. Substitute parts can look different from the original.
This item is not returnable
$4.77
In Stock
