Horizon
Exercise Cycle

Model # 910B Official Horizon cycle

Here are the diagrams and repair parts for Official Horizon 910B cycle, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 86 parts  |
Nut MZE0204005
#Z14

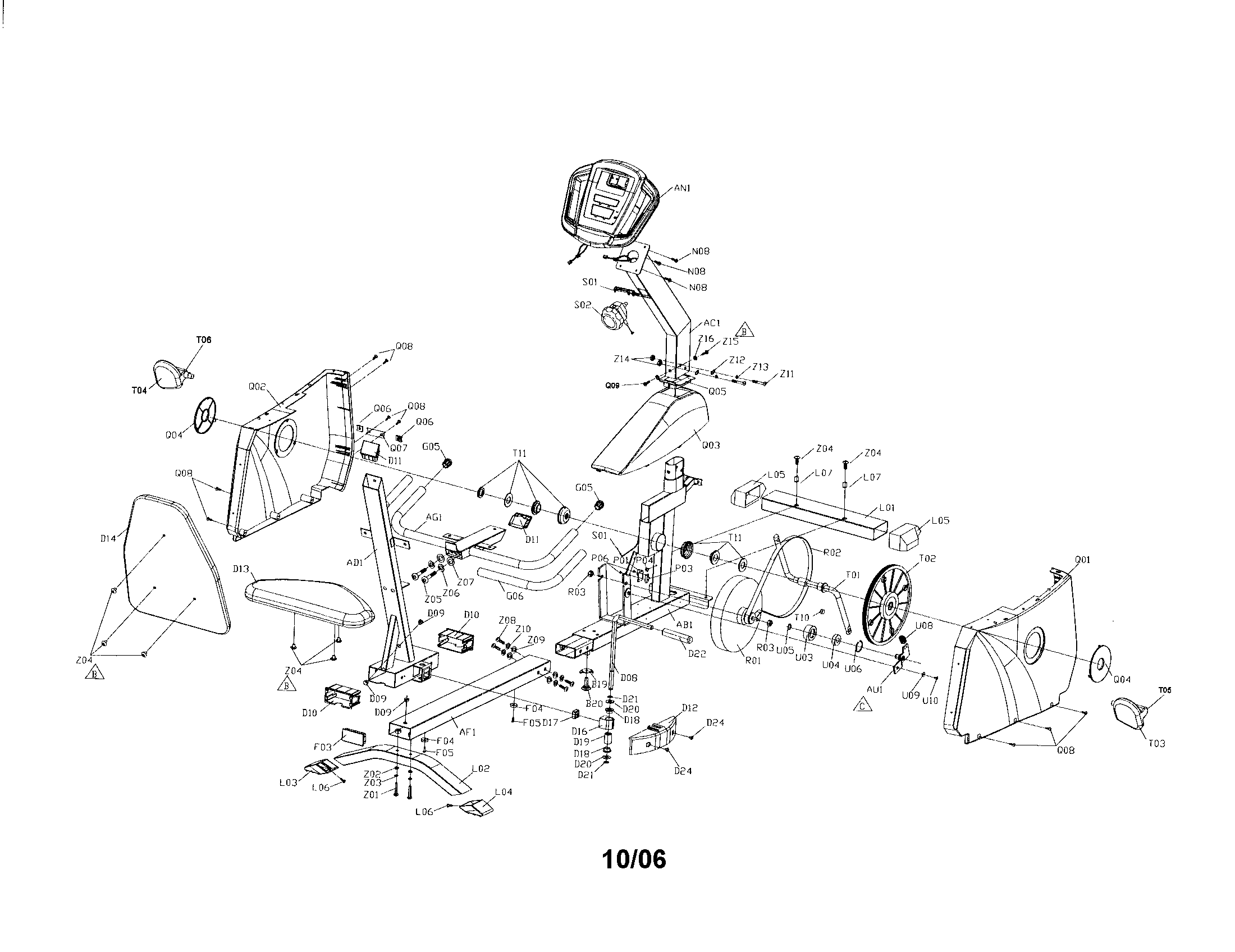

Elliptical diagram

Nut

Part #MZE0204005

Replaced by #004926-00

?
Manufacturer substitution
This part replaces MZE0204005. Substitute parts can look different from the original.
This item is not returnable
$2.16
Back Order
End Cap MB0609001
#G05

Elliptical diagram

End cap

Part #MB0609001

Replaced by #000893-B

?
Manufacturer substitution
This part replaces MB0609001. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Washer MZE0502134
Washer

Part #MZE0502134

Replaced by #005109-00

?
Manufacturer substitution
This part replaces MZE0502134. Substitute parts can look different from the original.
This item is not returnable
$2.55
In Stock
Cam ML0110001
#D19

Elliptical diagram

Cam

Part #ML0110001

Replaced by #009491-E

?
Manufacturer substitution
This part replaces ML0110001. Substitute parts can look different from the original.
This item is not returnable
$6.11
In Stock
C-clip MZE0902006
#U05

Elliptical diagram

C-clip

Part #MZE0902006

Replaced by #005361-00

?
Manufacturer substitution
This part replaces MZE0902006. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Screw ME0107036
Screw

Part #ME0107036

Replaced by #004627-00

?
Manufacturer substitution
This part replaces ME0107036. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Washer MZE0502049
#D20

Elliptical diagram

Washer

Part #MZE0502049

Replaced by #005058-00

?
Manufacturer substitution
This part replaces MZE0502049. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Level Dev MB0301002
#B20

Elliptical diagram

Level dev

Part #MB0301002

Replaced by #000485-00

?
Manufacturer substitution
This part replaces MB0301002. Substitute parts can look different from the original.
This item is not returnable
$3.49
In Stock
Pad MB0510001B
#F04

Elliptical diagram

Pad

Part #MB0510001B

Replaced by #000782-B

?
Manufacturer substitution
This part replaces MB0510001B. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
Insert ME0301014
#L07

Elliptical diagram

Insert

Part #ME0301014

Replaced by #004975-00

?
Manufacturer substitution
This part replaces ME0301014. Substitute parts can look different from the original.
This item is not returnable
$2.16
In Stock
