Craftsman
Wet/Dry Vacuum

Model # 113179951 Official Craftsman 16-gallon wet/dry vacuum

Here are the diagrams and repair parts for Official Craftsman 113179951 16-gallon wet/dry vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 85 parts  |
Extn Hndle 9-16964
#2

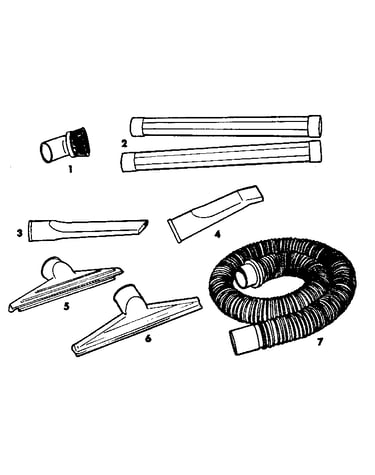

2-1/2" diameter plastic accessories diagram

Extn hndle

Part #9-16964

The manufacturer no longer makes this part, and there's no substitute part

Brush 9-16901
#1

2-1/2" diameter plastic accessories diagram

Brush

Part #9-16901

The manufacturer no longer makes this part, and there's no substitute part

Cervce Tool 9-16902
#3

2-1/2" diameter plastic accessories diagram

Cervce tool

Part #9-16902

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Ferrule 73242
#25

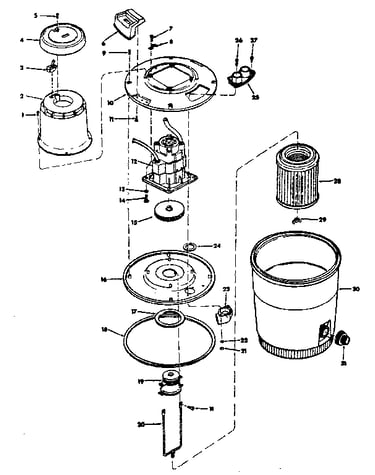

Unit diagram

Shop vacuum ferrule

Part #73242

The manufacturer no longer makes this part, and there's no substitute part

Gasket (black) 20866
#24

Unit diagram

Gasket (black)

Part #20866

The manufacturer no longer makes this part, and there's no substitute part

Nozzle (black) 28229-01
#23

Unit diagram

Nozzle (black)

Part #28229-01

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum On/off Switch (replaces 73370, 813213) 73180
#3

Unit diagram

Shop vacuum on/off switch (replaces 73370, 813213)

Part #73180

The manufacturer no longer makes this part, and there's no substitute part

Hdlr Assry 73248
#1

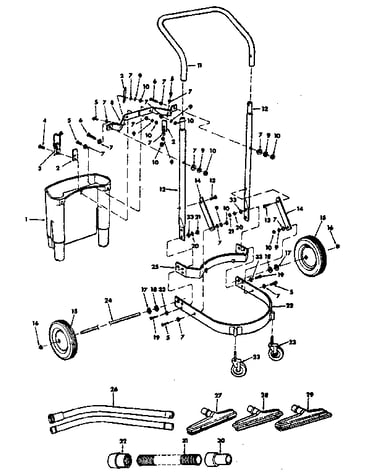

Cart assembly and accessories diagram

Hdlr assry

Part #73248

The manufacturer no longer makes this part, and there's no substitute part

Field Assembly 813189
#8

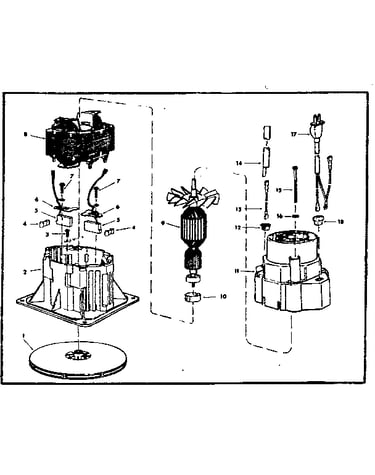

Motor 73296 diagram

Field assembly

Part #813189

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Drain Cap (replaces 73107, 817465, 825881) 73185
#31

Unit diagram

Shop vacuum drain cap (replaces 73107, 817465, 825881)

Part #73185

The manufacturer no longer makes this part, and there's no substitute part
