Reliance
Gas Water Heater

Model # 650CODS Official Reliance water heater

Here are the diagrams and repair parts for Official Reliance 650CODS water heater, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Error Codes

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 54 parts  |
Burner 9002411
#9

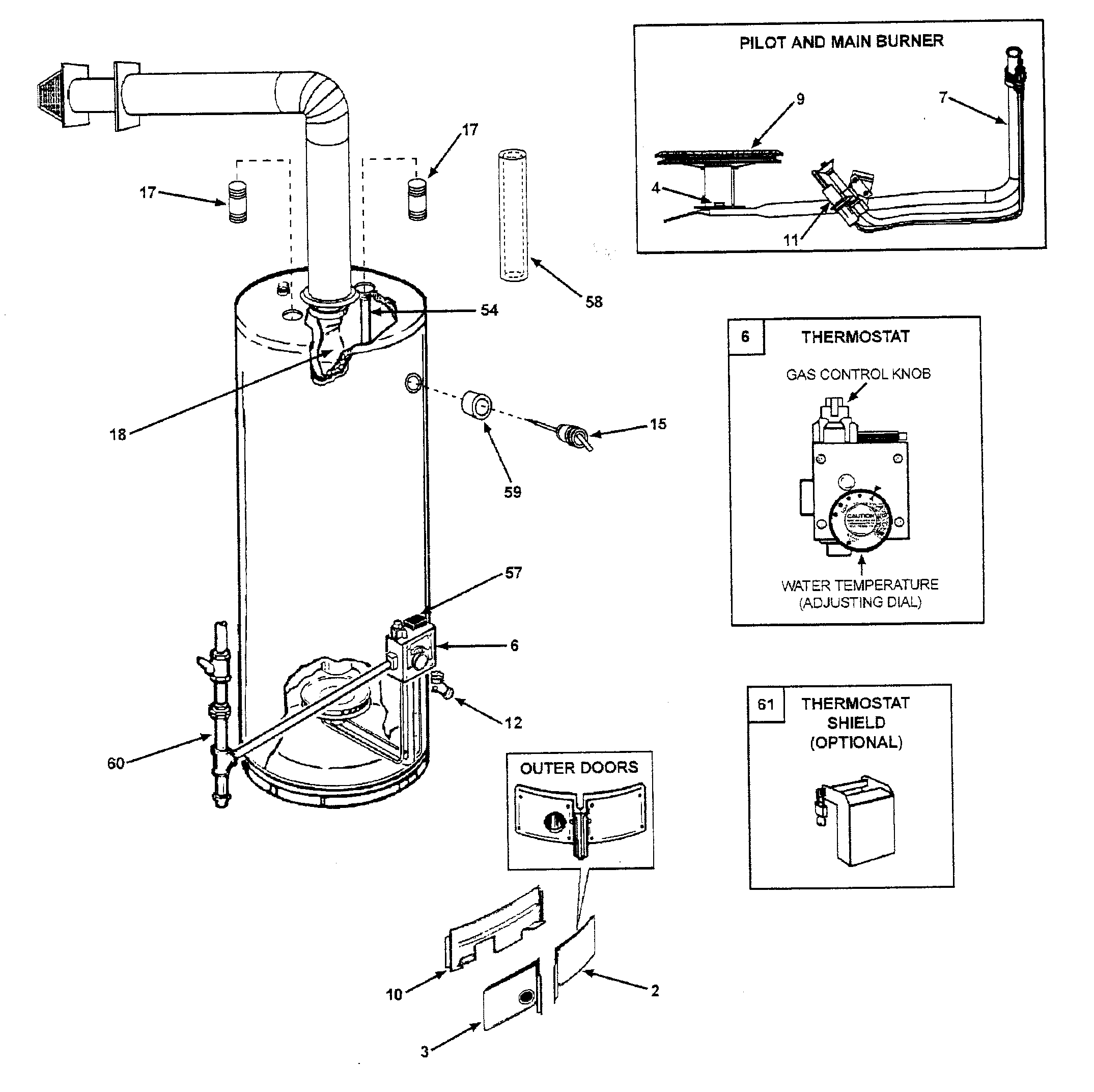

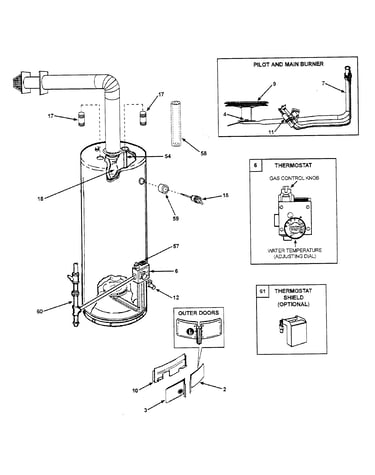

Water heater diagram

Burner

Part #9002411

Replaced by #9003631005

?
Manufacturer substitution
This part replaces 9002411. Substitute parts can look different from the original.
$46.79 |
11% OFF Phone Price : $52.79
In Stock
Anode Rod 9000705
#14

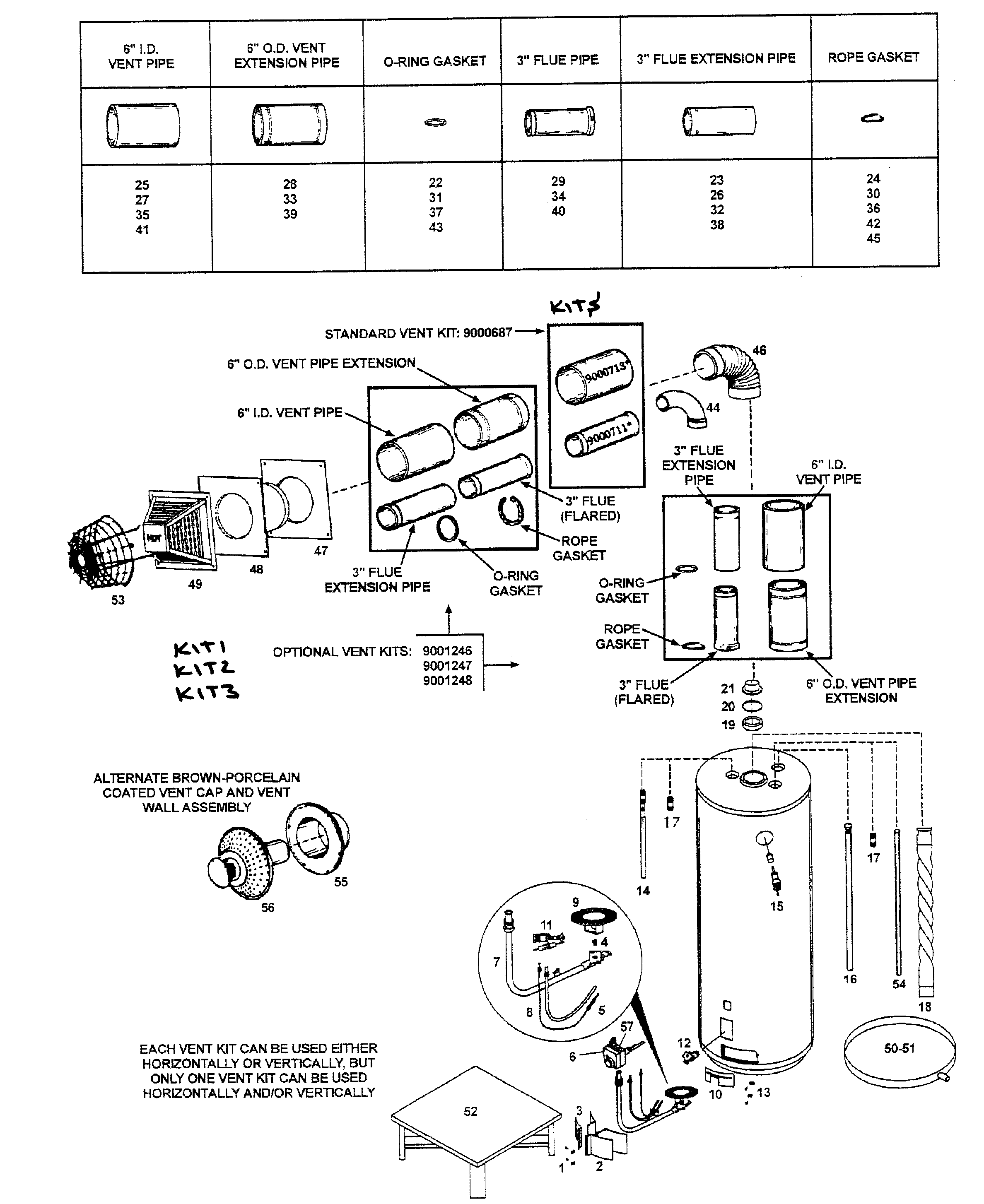

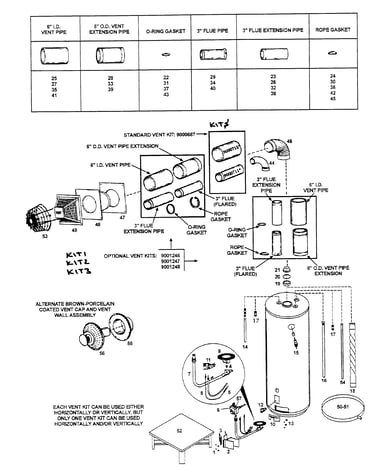

Venting diagram

Anode rod

Part #9000705

Replaced by #100300397

?
Manufacturer substitution
This part replaces 9000705. Substitute parts can look different from the original.
$55.38 |
10% OFF Phone Price : $61.38
In Stock
Collar Assembly 9000724
#55

Venting diagram

Collar assembly

Part #9000724

$9.49
In Stock
Door 9000696
#3

Water heater diagram

Door

Part #9000696

$57.99
In Stock
Vent Pipe 9001279
#41

Venting diagram

Vent pipe

Part #9001279

$11.99
In Stock
Vent Pipe 9001275
#33

Venting diagram

Vent pipe

Part #9001275

This item is not returnable
$5.99
In Stock
Gasket 9000710
Gasket

Part #9000710

$15.49
In Stock
Vent Pipe 9001278
#35

Venting diagram

Vent pipe

Part #9001278

This item is not returnable
$7.49
In Stock
Vent Pipe 9001277
#27

Venting diagram

Vent pipe

Part #9001277

This item is not returnable
$4.99
In Stock
Flue Pipe 9001281
#32

Venting diagram

Flue pipe

Part #9001281

$24.99
In Stock
