Model # JSO-45 Official Ryobi jig saw

Here are the diagrams and repair parts for Official Ryobi JSO-45 jig saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 46 parts  |
Strip Nut 999263002
#19

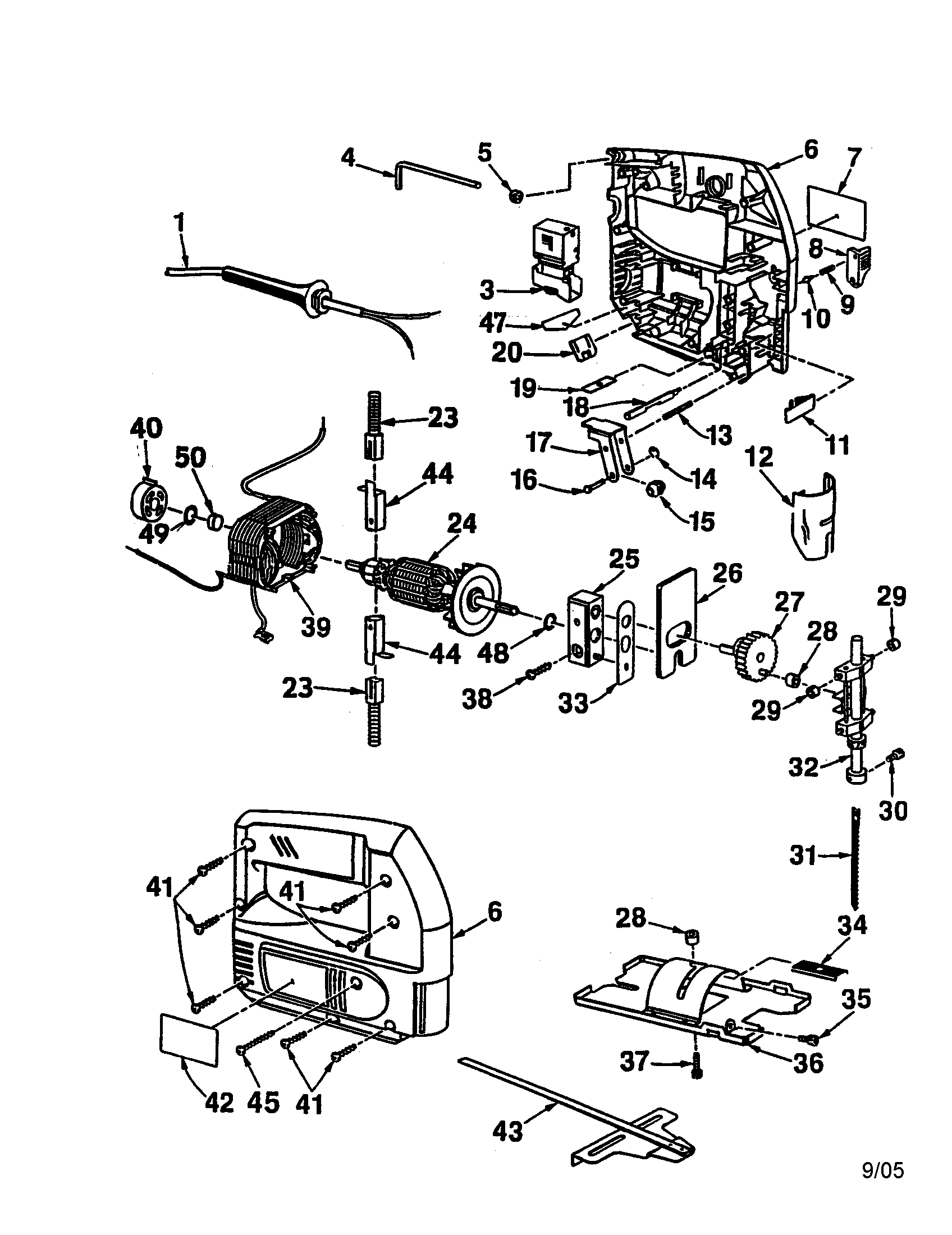

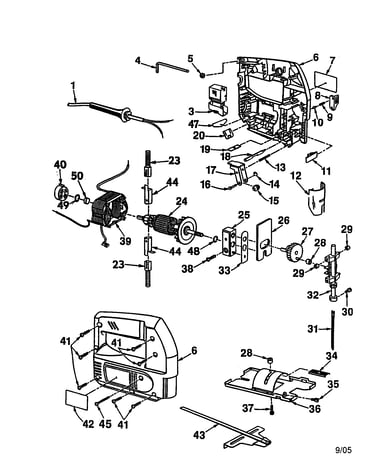

Jigsaw diagram

Strip nut

Part #999263002

The manufacturer no longer makes this part, and there's no substitute part

Ac Cord 969274013
#1

Jigsaw diagram

Ac cord

Part #969274013

The manufacturer no longer makes this part, and there's no substitute part

Data Plate 969487001
#42

Jigsaw diagram

Data plate

Part #969487001

The manufacturer no longer makes this part, and there's no substitute part

Brush Tube 969424001
#44

Jigsaw diagram

Brush tube

Part #969424001

The manufacturer no longer makes this part, and there's no substitute part

Edge Guide 606551003
#43

Jigsaw diagram

Edge guide

Part #606551003

The manufacturer no longer makes this part, and there's no substitute part

Guard Assembly (see Page 6)) N/P
#31

Jigsaw diagram

Guard assembly (see page 6))

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Bushing 615130001
#29

Jigsaw diagram

Bushing

Part #615130001

The manufacturer no longer makes this part, and there's no substitute part

Counterweight 968510004
#26

Jigsaw diagram

Counterweight

Part #968510004

The manufacturer no longer makes this part, and there's no substitute part

Spring 968507001
#11

Jigsaw diagram

Spring

Part #968507001

The manufacturer no longer makes this part, and there's no substitute part

Needle Roller 623924010
#13

Jigsaw diagram

Needle roller

Part #623924010

The manufacturer no longer makes this part, and there's no substitute part
