Kenmore
Room Air Conditioner

Model # 58072077200 Official Kenmore air conditioner

Here are the diagrams and repair parts for Official Kenmore 58072077200 air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

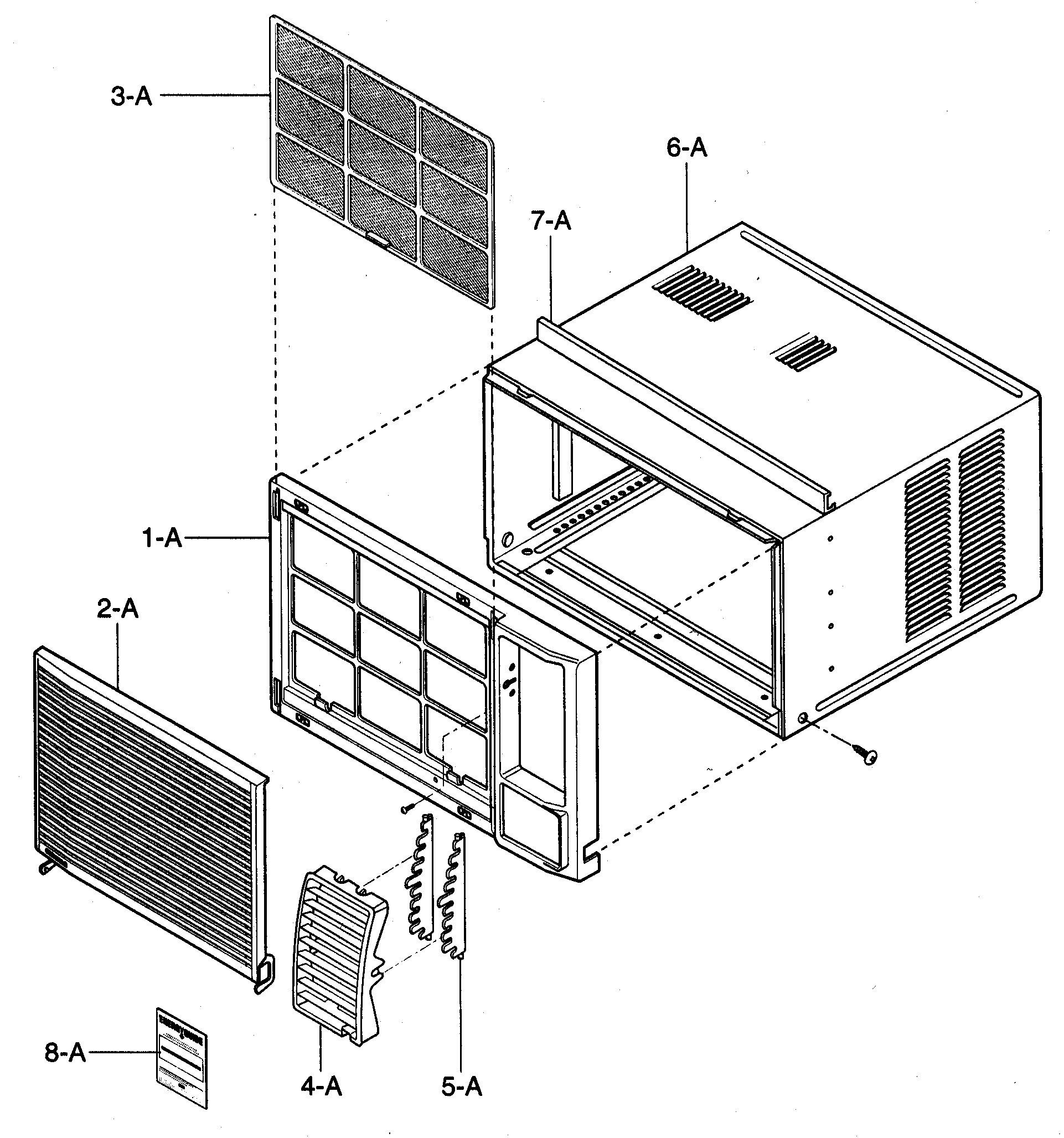

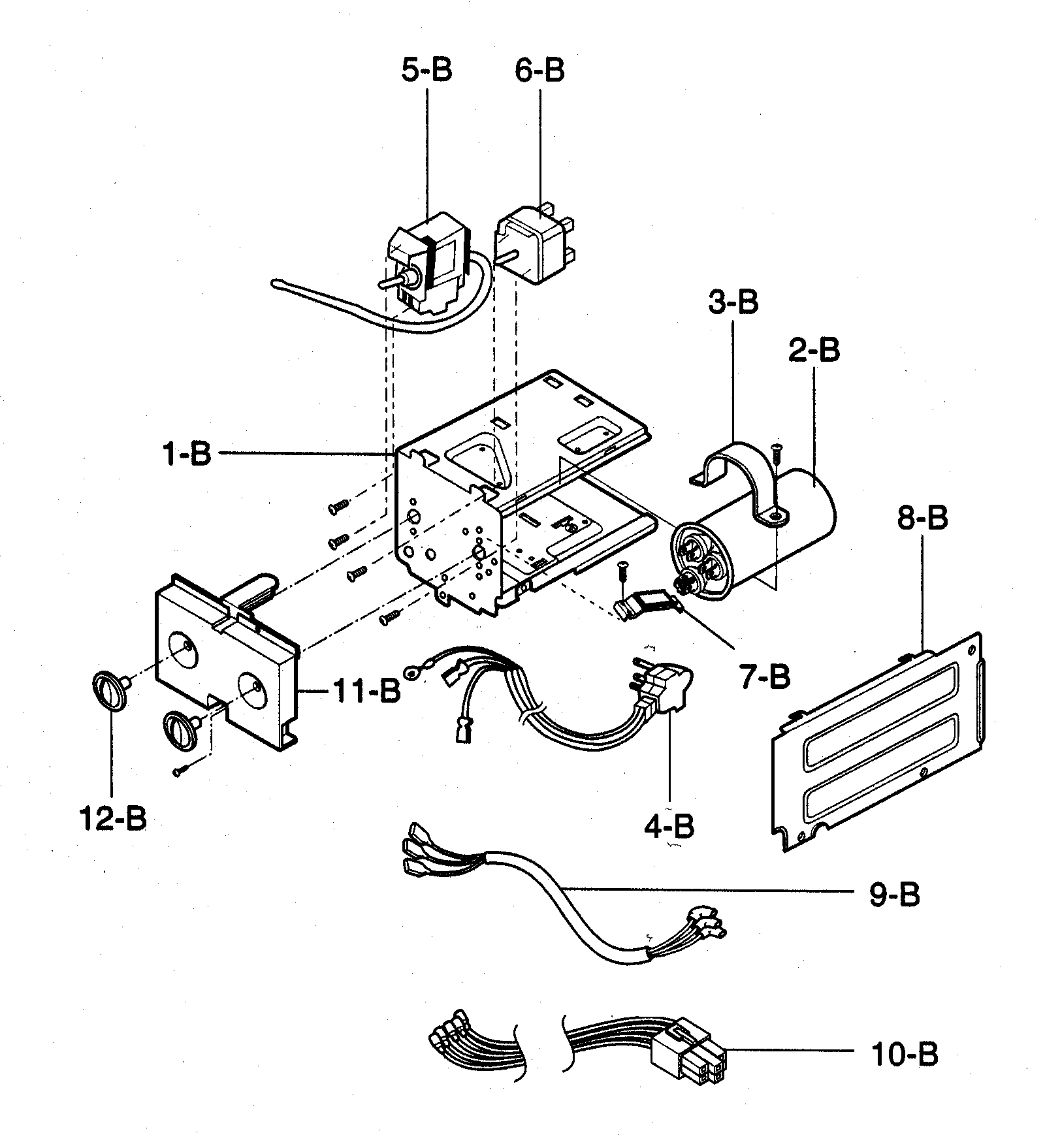

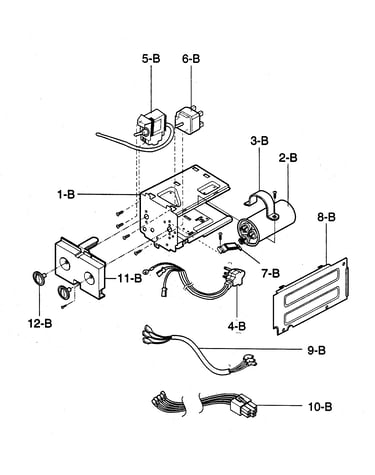

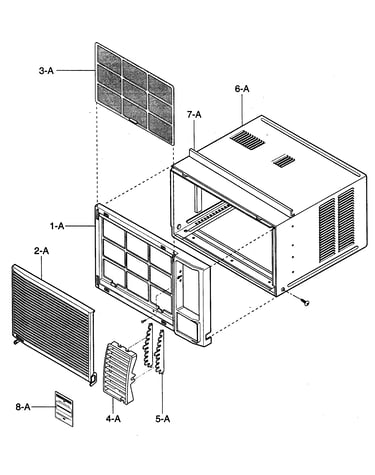

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 61 parts  |
Room Air Conditioner Accordion Filler, Left 4959AR3402A
#1-E

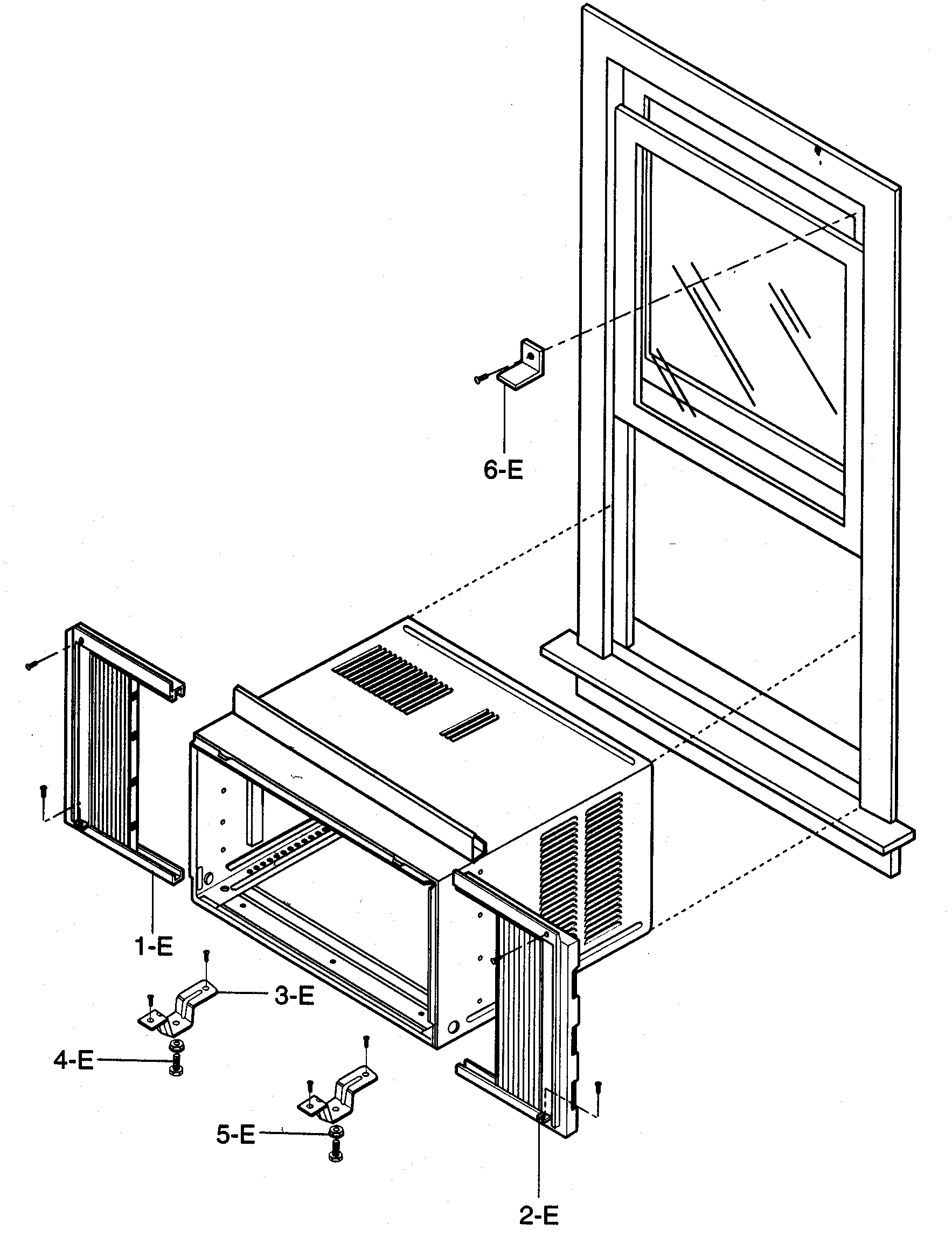

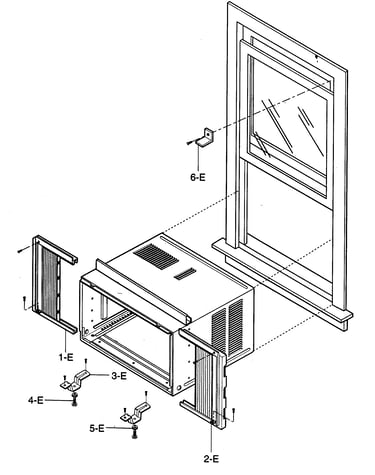

Installation kit assy diagram

Room air conditioner accordion filler, left

Part #4959AR3402A

Replaced by #3127A20074X

?
Manufacturer substitution
This part replaces 4959AR3402A. Substitute parts can look different from the original.
$38.30 |
14% OFF Phone Price : $44.30
In Stock
Room Air Conditioner Accordion Filler Assembly, Right 4959AR3402B
#2-E

Installation kit assy diagram

Room air conditioner accordion filler assembly, right

Part #4959AR3402B

Replaced by #3127A20074X

?
Manufacturer substitution
This part replaces 4959AR3402B. Substitute parts can look different from the original.
$38.30 |
14% OFF Phone Price : $44.30
In Stock
Room Air Conditioner Fan Blade Clamp 3H02932B
#10-C

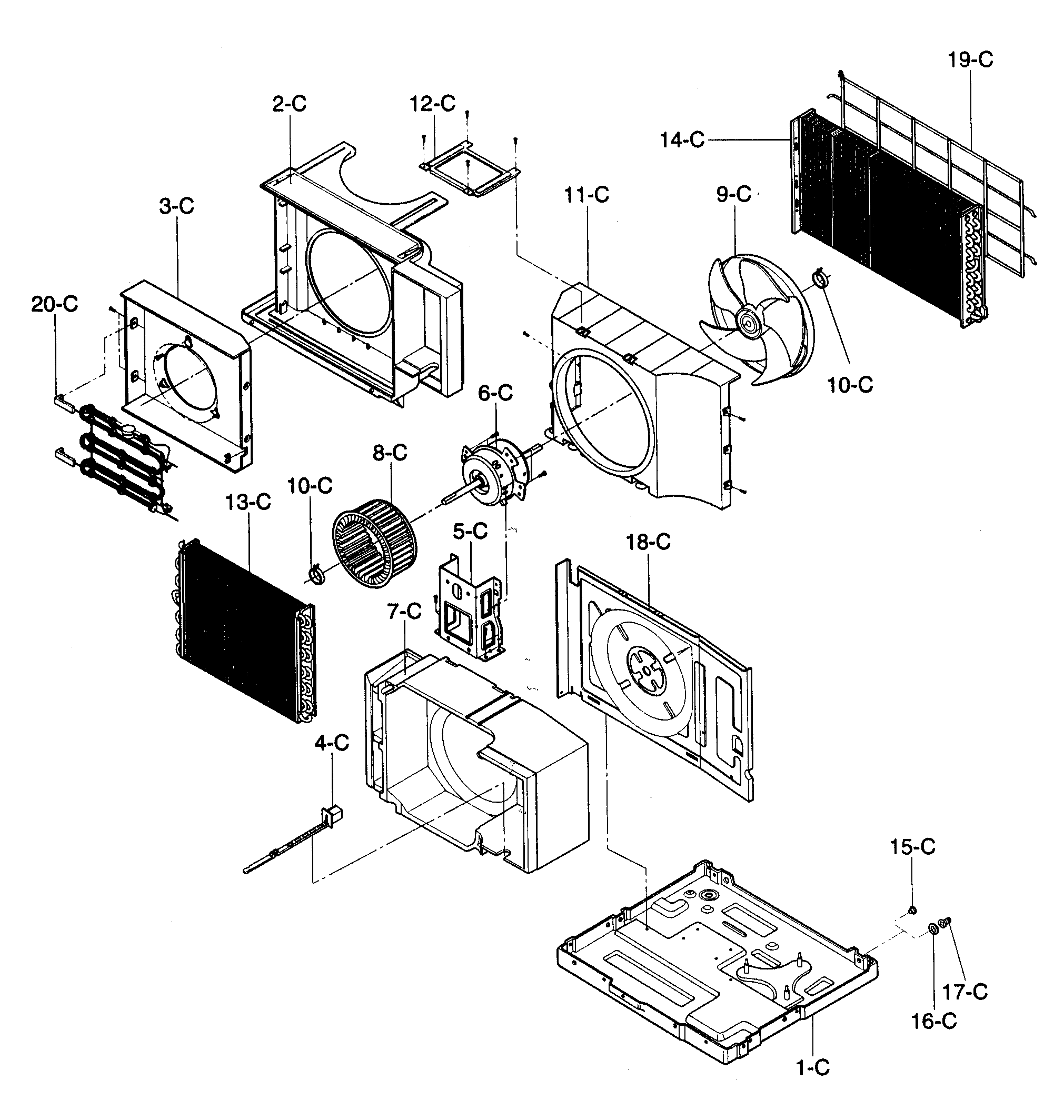

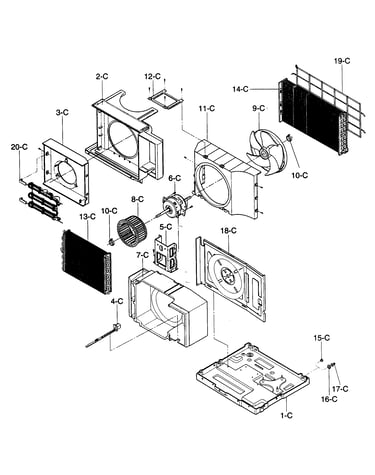

Air handling/cycle parts diagram

Room air conditioner fan blade clamp

Part #3H02932B

This item is not returnable
$3.82 |
21% OFF Phone Price : $4.82
In Stock
Room Air Conditioner Drain Pipe 3H02773A
#17-C

Air handling/cycle parts diagram

Room air conditioner drain pipe

Part #3H02773A

This item is not returnable
$3.82 |
21% OFF Phone Price : $4.82
In Stock
Room Air Conditioner Compressor Overload Protector 6750U-L005A
#6-D

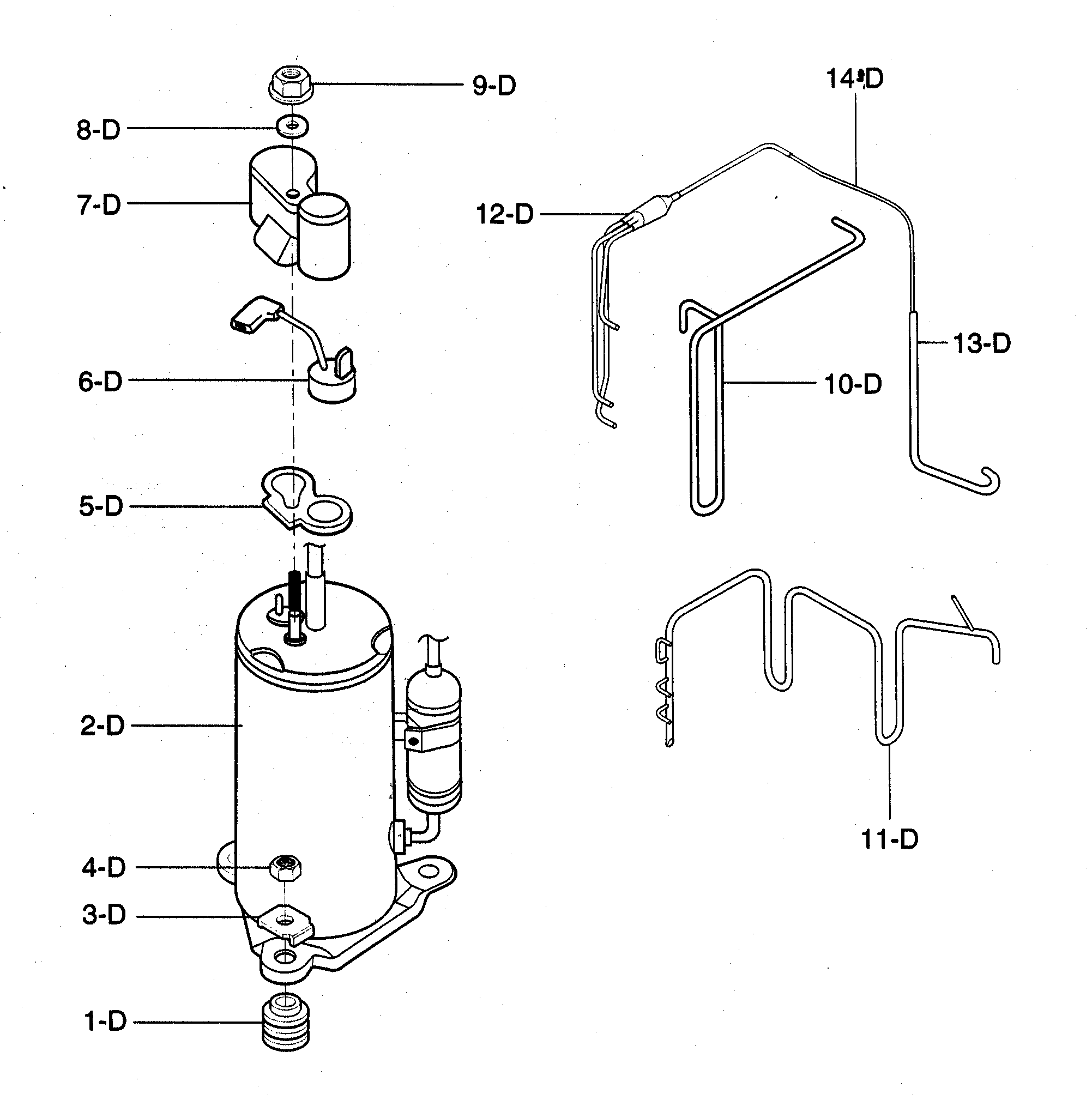

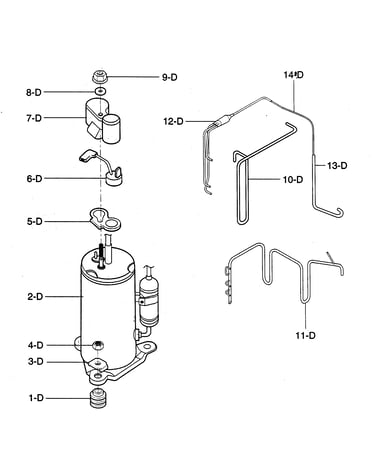

Compressor parts diagram

Room air conditioner compressor overload protector

Part #6750U-L005A

This item is not returnable
$14.64 |
12% OFF Phone Price : $16.64
In Stock
Friedrich Room Air Conditioner Compressor Grommet 5040AR4195A
#1-D

Compressor parts diagram

Friedrich room air conditioner compressor grommet

Part #5040AR4195A

This item is not returnable
$4.51
In Stock
Room Air Conditioner Heater Assembly 5300A20003B
#20-C

Air handling/cycle parts diagram

Room air conditioner heater assembly

Part #5300A20003B

Replaced by #5300A20003U

?
Manufacturer substitution
This part replaces 5300A20003B. Substitute parts can look different from the original.
$103.00
In Stock
Friedrich Brace 4800A30001A
#12-C

Air handling/cycle parts diagram

Friedrich brace

Part #4800A30001A

This item is not returnable
$7.00
In Stock
Kenmore Air Guide 5238A10001C
#2-C

Air handling/cycle parts diagram

Kenmore air guide

Part #5238A10001C

$84.98
In Stock
Tube 5211AR3399A
#13-D

Compressor parts diagram

Tube

Part #5211AR3399A

$10.60
In Stock
