Countertop Microwave

Model # 5629967310 Official Kenmore microwave

Here are the diagrams and repair parts for Official Kenmore 5629967310 microwave, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 156 parts  |
Light 976173
Light

Part #976173

Replaced by #W10873798

?
Manufacturer substitution
This part replaces 976173. Substitute parts can look different from the original.
$8.66
In Stock
Door Catch 976347
Door catch

Part #976347

This item is not returnable
$2.29
In Stock
Knob 976204
#54

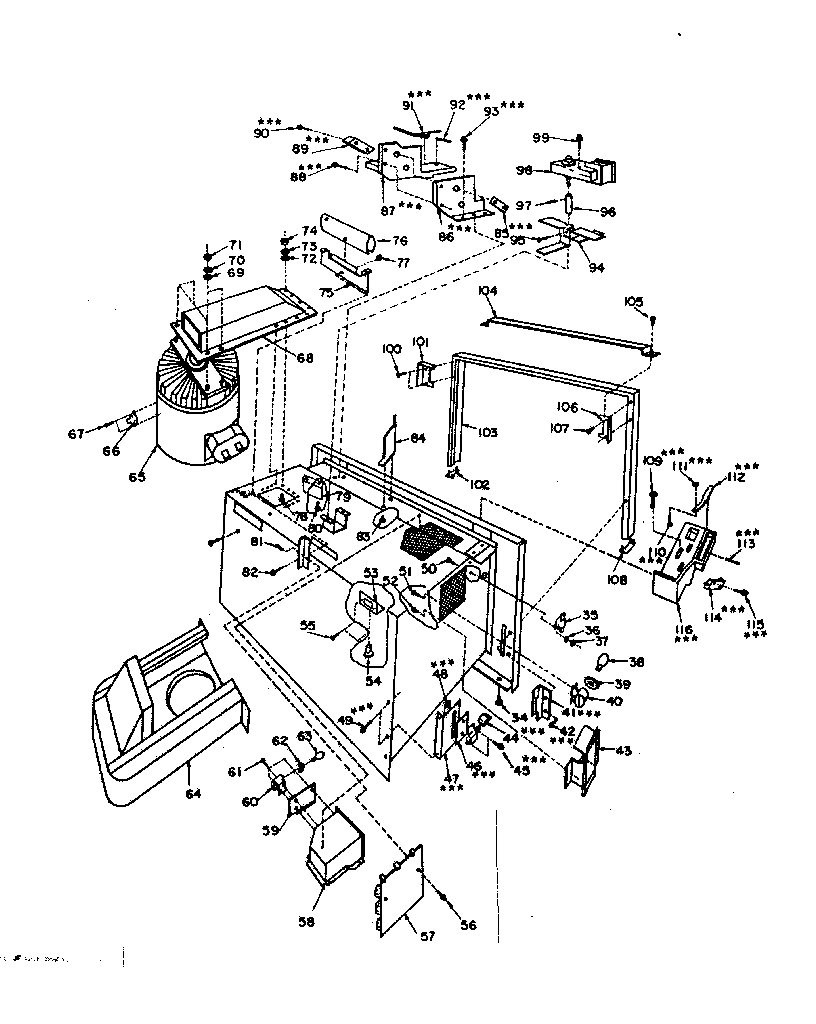

Oven assembly diagram

Knob

Part #976204

The manufacturer no longer makes this part, and there's no substitute part

Retainer 976203
#53

Oven assembly diagram

Retainer

Part #976203

The manufacturer no longer makes this part, and there's no substitute part

Resistor 976175
#12

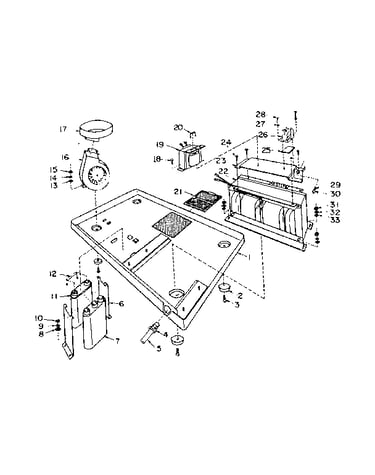

Oven base assembly diagram

Resistor

Part #976175

The manufacturer no longer makes this part, and there's no substitute part

Capacitor 976281
#11

Oven base assembly diagram

Capacitor

Part #976281

The manufacturer no longer makes this part, and there's no substitute part

Screw 976394
#223

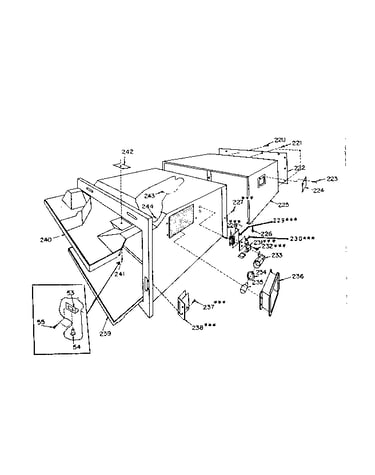

Oven right side diagram

Screw

Part #976394

The manufacturer no longer makes this part, and there's no substitute part

Door Frame 976329
#122

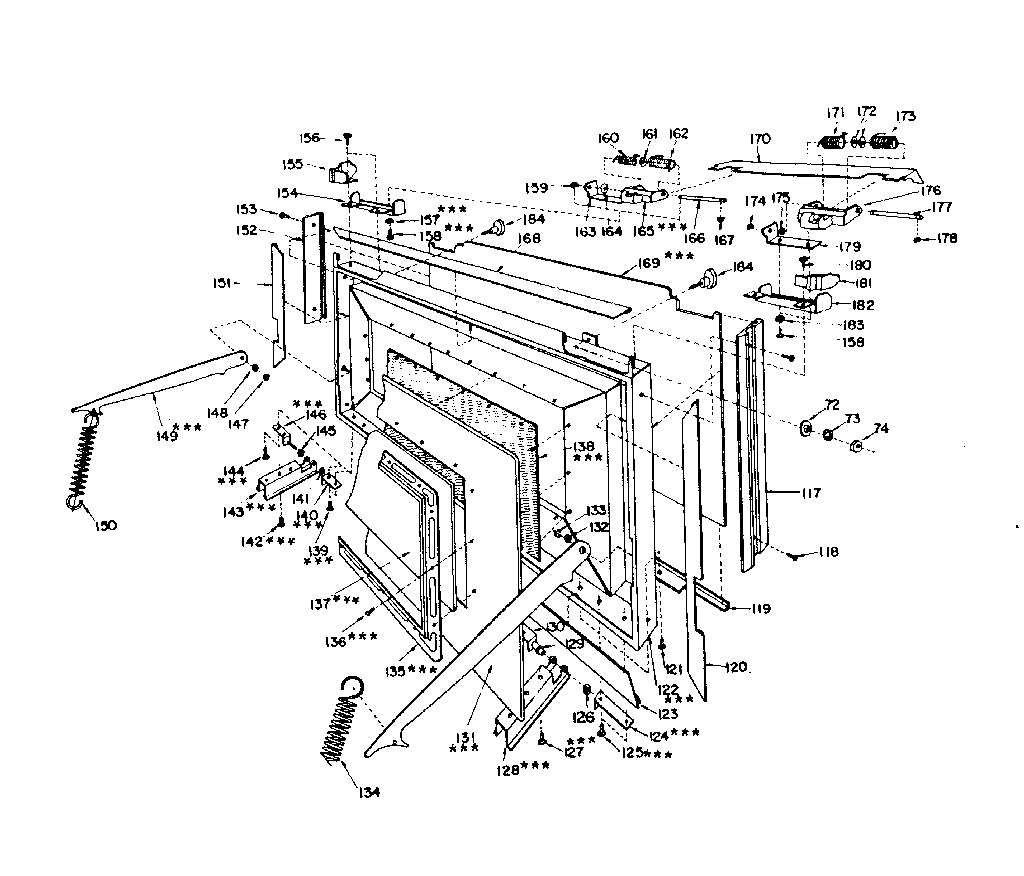

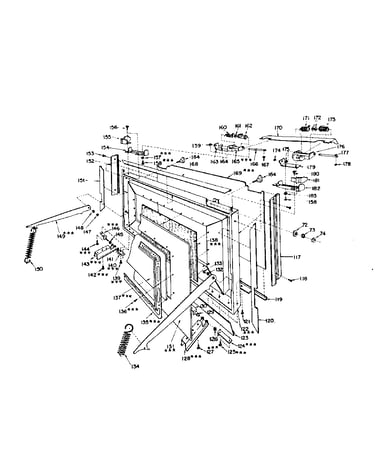

Door assembly diagram

Door frame

Part #976329

The manufacturer no longer makes this part, and there's no substitute part

Washer 976279
Washer

Part #976279

The manufacturer no longer makes this part, and there's no substitute part

Timer 976194
#192

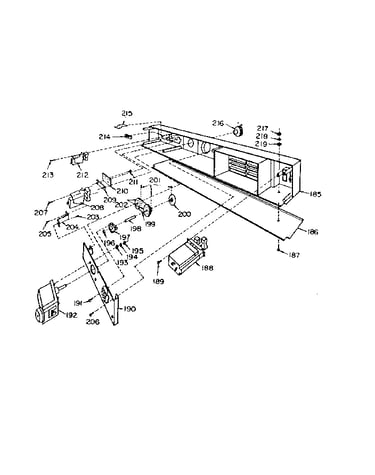

Control assembly diagram

Timer

Part #976194

The manufacturer no longer makes this part, and there's no substitute part
