Craftsman
Wet/Dry Vacuum

Model # 113177410 Official Craftsman wet/dry vacuum

Here are the diagrams and repair parts for Official Craftsman 113177410 wet/dry vacuum, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

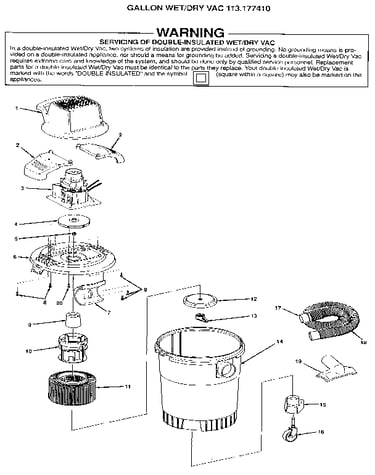

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 21 parts  |

Wet/dry Vacuum Filter 9-17810
#11

Unit diagram

Wet/dry vacuum filter

Part #9-17810

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Screw 323723
#20

Unit diagram

Shop vacuum screw

Part #323723

The manufacturer no longer makes this part, and there's no substitute part

Shop Vacuum Filter Nut 73316
#13

Unit diagram

Shop vacuum filter nut

Part #73316

The manufacturer no longer makes this part, and there's no substitute part

Hex Nut 73352
#5

Unit diagram

Hex nut

Part #73352

The manufacturer no longer makes this part, and there's no substitute part

Adapter (black) 73324
#17

Unit diagram

Adapter (black)

Part #73324

The manufacturer no longer makes this part, and there's no substitute part

Float 73349
#9

Unit diagram

Float

Part #73349

The manufacturer no longer makes this part, and there's no substitute part

Vacuum Caster 73137
#16

Unit diagram

Vacuum caster

Part #73137

The manufacturer no longer makes this part, and there's no substitute part

Storag Castr 9-16931
#15

Unit diagram

Storag castr

Part #9-16931

The manufacturer no longer makes this part, and there's no substitute part

Nozzle 9-16922
#19

Unit diagram

Nozzle

Part #9-16922

The manufacturer no longer makes this part, and there's no substitute part

Owner's Manual SP5470

#NI

All parts diagram

Owner's manual

Part #SP5470

The manufacturer no longer makes this part, and there's no substitute part
