Model # 143531132 Official Craftsman 4-cycle engine

Here are the diagrams and repair parts for Official Craftsman 143531132 4-cycle engine, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 171 parts  |

Gasket 27110
#20

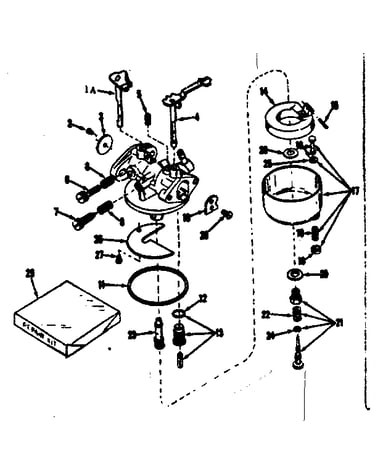

Carburetor diagram

Gasket

Part #27110

The manufacturer no longer makes this part, and there's no substitute part

Plug 27625
#25

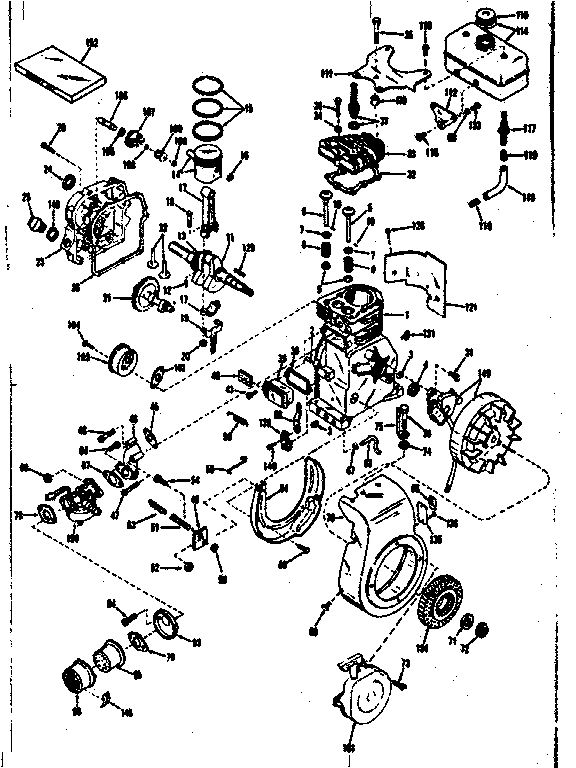

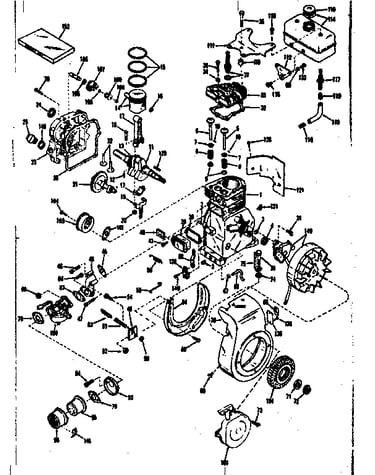

Basic engine diagram

Plug

Part #27625

The manufacturer no longer makes this part, and there's no substitute part

/gvnr Clamp 31335
#139

Basic engine diagram

/gvnr clamp

Part #31335

The manufacturer no longer makes this part, and there's no substitute part

Screw 30564
#28

Basic engine diagram

Screw

Part #30564

The manufacturer no longer makes this part, and there's no substitute part

Screw 28820
#94

Basic engine diagram

Screw

Part #28820

The manufacturer no longer makes this part, and there's no substitute part

Ring 20381
#16

Basic engine diagram

Ring

Part #20381

The manufacturer no longer makes this part, and there's no substitute part

Lever 31510
#60

Basic engine diagram

Lever

Part #31510

The manufacturer no longer makes this part, and there's no substitute part

Flat Washer 30590
#105

Basic engine diagram

Flat washer

Part #30590

The manufacturer no longer makes this part, and there's no substitute part

Bolt 30845
#51

Basic engine diagram

Bolt

Part #30845

The manufacturer no longer makes this part, and there's no substitute part

Spacer 28277
#67

Basic engine diagram

Spacer

Part #28277

The manufacturer no longer makes this part, and there's no substitute part
