Model # 2545E10V Official Ingersoll Rand air compressor

Here are the diagrams and repair parts for Official Ingersoll Rand 2545E10V air compressor, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

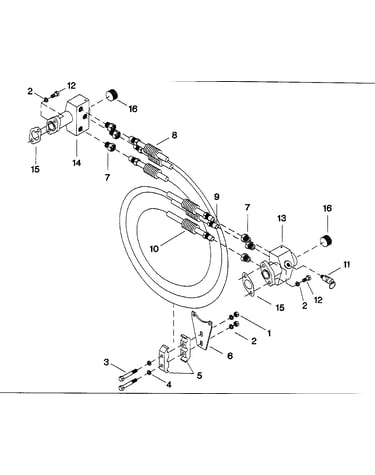

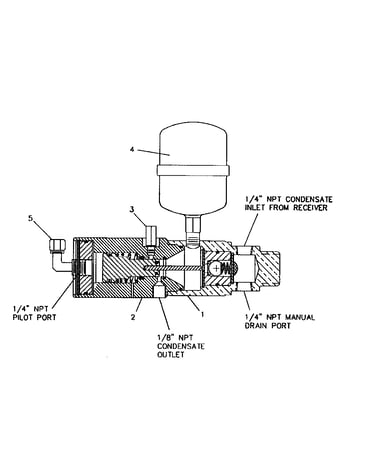

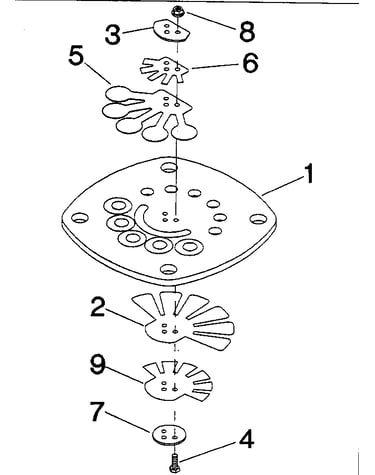

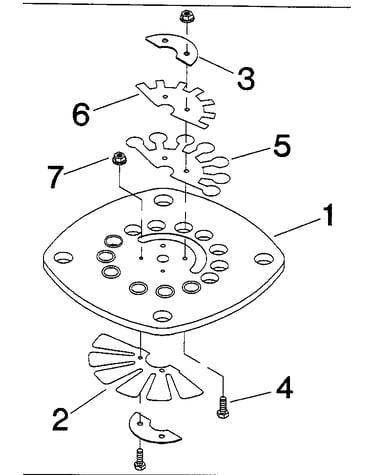

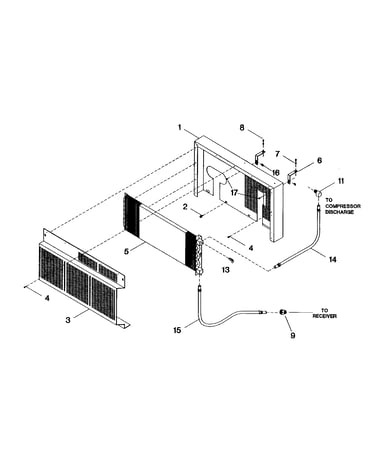

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 168 parts  |
Gauge 32013872
#7

Tank assy diagram

Gauge

Part #32013872

The manufacturer no longer makes this part, and there's no substitute part

Ingersoll Rand Gasket 32294043
#14

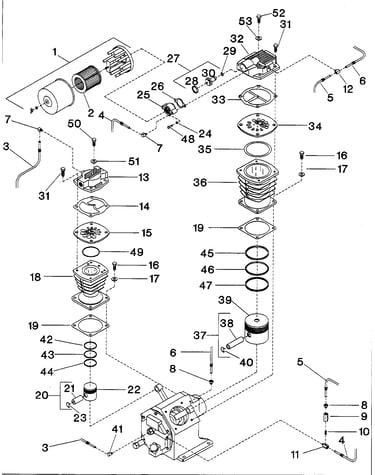

Pump assy 2 diagram

Ingersoll rand gasket

Part #32294043

The manufacturer no longer makes this part, and there's no substitute part

Air Compressor Belt Guard Clip 32496093
#3

Wire beltguard diagram

Air compressor belt guard clip

Part #32496093

The manufacturer no longer makes this part, and there's no substitute part

Grd Brace 32188518
Grd brace

Part #32188518

The manufacturer no longer makes this part, and there's no substitute part

Ingersoll Rand Gasket 32294050
#33

Pump assy 2 diagram

Ingersoll rand gasket

Part #32294050

The manufacturer no longer makes this part, and there's no substitute part

Ingersoll Rand Filtr Elemnt 32012957
#2

Pump assy 2 diagram

Ingersoll rand filtr elemnt

Part #32012957

The manufacturer no longer makes this part, and there's no substitute part

Ingersoll Rand Lockwire 32006587
#19

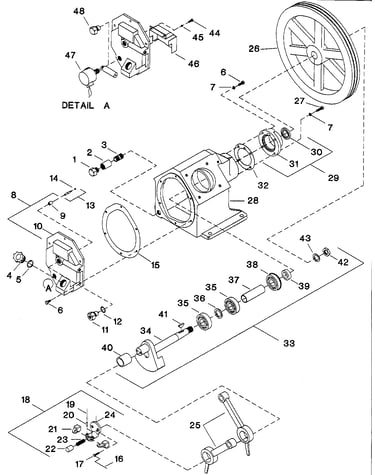

Pump assy 1 diagram

Ingersoll rand lockwire

Part #32006587

The manufacturer no longer makes this part, and there's no substitute part

Valve 32174286
Valve

Part #32174286

The manufacturer no longer makes this part, and there's no substitute part

Ingersoll Rand O-ring 32294076
#35

Pump assy 2 diagram

Ingersoll rand o-ring

Part #32294076

The manufacturer no longer makes this part, and there's no substitute part

Tube Elbow 95031860
#7

Pump assy 2 diagram

Tube elbow

Part #95031860

The manufacturer no longer makes this part, and there's no substitute part
