Soleus Air
Room Air Conditioner

Model # KY-32H Official Soleus Air portable air conditioner

Here are the diagrams and repair parts for Official Soleus Air KY-32H portable air conditioner, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Owner’s manual

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 70 parts  |
Kenmore Capacitor 33010027
#23

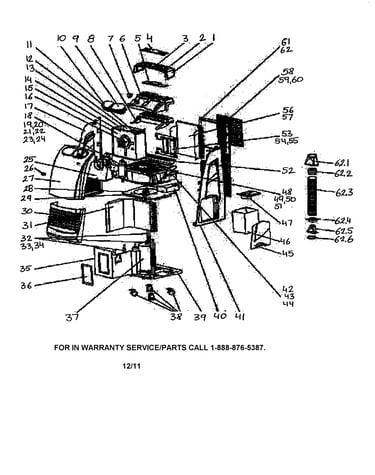

Cabinet parts diagram

Kenmore capacitor

Part #33010027

The manufacturer no longer makes this part, and there's no substitute part

Limiter 46010525
#55

Cabinet parts diagram

Limiter

Part #46010525

The manufacturer no longer makes this part, and there's no substitute part

Adapter Ring 26116010
#62.4

Cabinet parts diagram

Adapter ring

Part #26116010

The manufacturer no longer makes this part, and there's no substitute part

Motor 15212103
#7

Cabinet parts diagram

Motor

Part #15212103

The manufacturer no longer makes this part, and there's no substitute part

Evaporator 1006020
#56

Cabinet parts diagram

Evaporator

Part #1006020

The manufacturer no longer makes this part, and there's no substitute part

Cndns Tray 6126021
#40

Cabinet parts diagram

Cndns tray

Part #6126021

The manufacturer no longer makes this part, and there's no substitute part

Cover 24256001
#2

Cabinet parts diagram

Cover

Part #24256001

The manufacturer no longer makes this part, and there's no substitute part

Terminal Board 42011103
#21

Cabinet parts diagram

Terminal board

Part #42011103

The manufacturer no longer makes this part, and there's no substitute part

Inwarranty Parts/service Call 1-888-876-5387 N/P
#NI

Cabinet parts diagram

Inwarranty parts/service call 1-888-876-5387

Part #N/P

The manufacturer no longer makes this part, and there's no substitute part

Adapter 6646003
#62-5

Cabinet parts diagram

Adapter

Part #6646003

The manufacturer no longer makes this part, and there's no substitute part
