Model # ARCF60U03CC/P9917944F Official Amana condensing unit - arcf series

Here are the diagrams and repair parts for Official Amana ARCF60U03CC-P9917944F condensing unit - arcf series, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 84 parts  |
Tie M0321202
#16

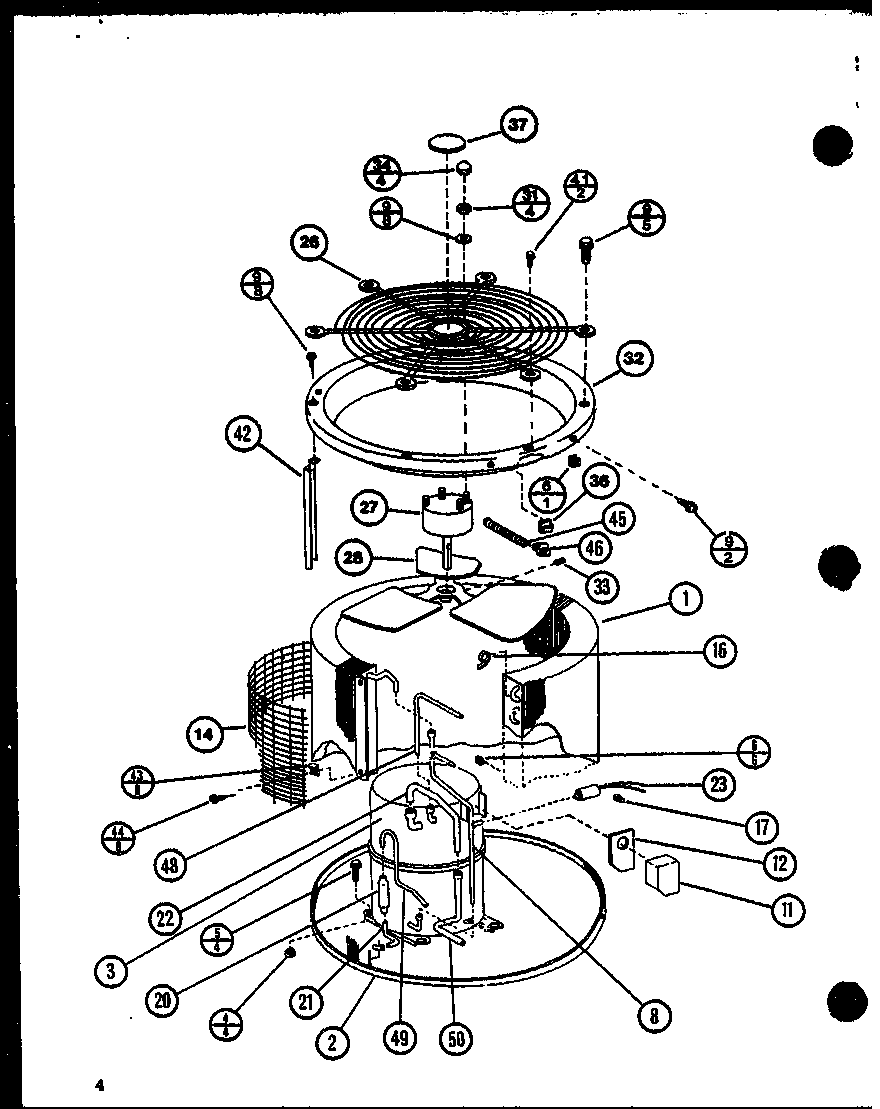

Preform coil assembly diagram

Tie

Part #M0321202

Replaced by #WPW10339879

?
Manufacturer substitution
This part replaces M0321202. Substitute parts can look different from the original.
This item is not returnable
$4.37 |
19% OFF Phone Price : $5.37
In Stock
Cord Clip M0104101
#34

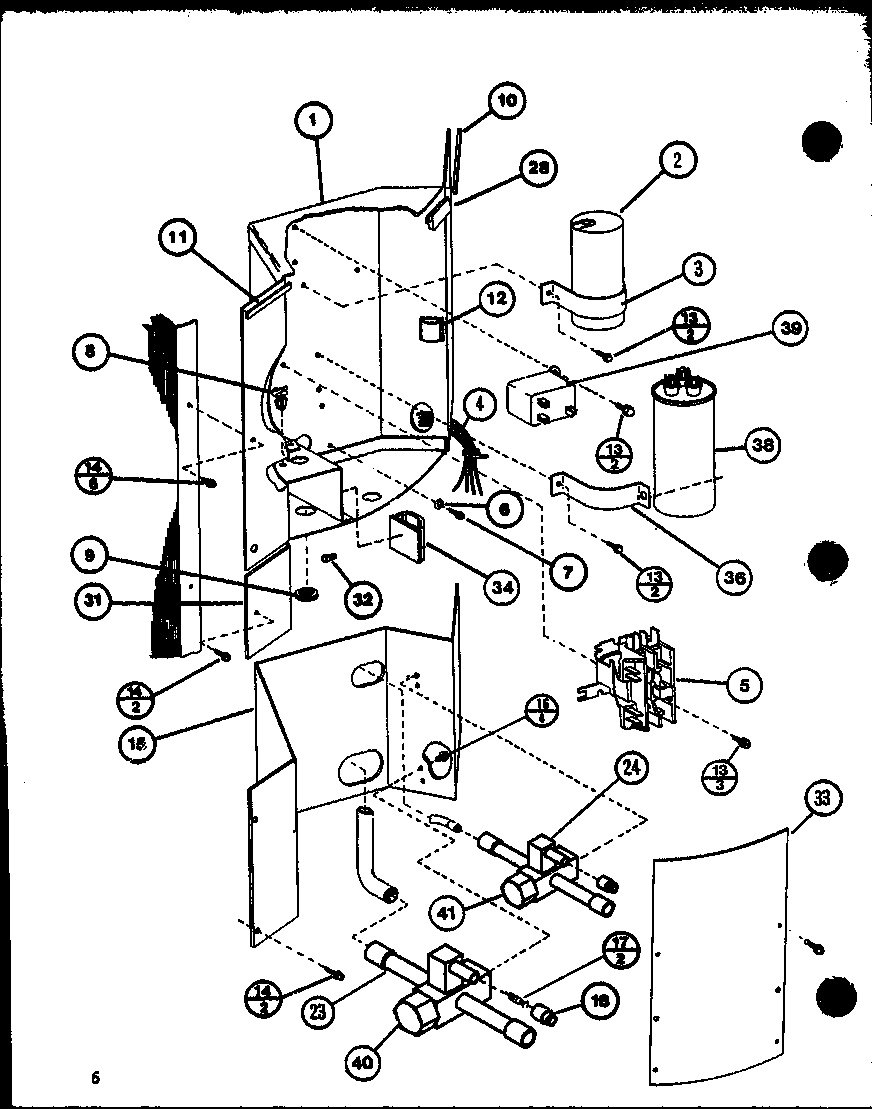

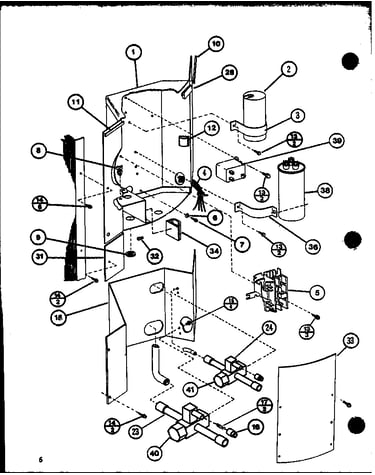

Control assembly diagram

Cord clip

Part #M0104101

Replaced by #WPM0104106

?
Manufacturer substitution
This part replaces M0104101. Substitute parts can look different from the original.
This item is not returnable
$4.39 |
19% OFF Phone Price : $5.39
In Stock
Wire Joint A0317601
Wire joint

Part #A0317601

Replaced by #WPA0317601

?
Manufacturer substitution
This part replaces A0317601. Substitute parts can look different from the original.
This item is not returnable
$6.29
In Stock
Harness-compressor C6452501
#4A

Control assembly diagram

Harness-compressor

Part #C6452501

The manufacturer no longer makes this part, and there's no substitute part

Clamp M0107201
#43

Preform coil assembly diagram

Clamp

Part #M0107201

The manufacturer no longer makes this part, and there's no substitute part

Contactor, 25 Amp, 24 V. Coil C6333501
#5A

Control assembly diagram

Contactor, 25 amp, 24 v. coil

Part #C6333501

The manufacturer no longer makes this part, and there's no substitute part

Condenser Grille D9925103
#14

Preform coil assembly diagram

Condenser grille

Part #D9925103

The manufacturer no longer makes this part, and there's no substitute part

Bracket, Q.l. Valve D9964301
#15

Control assembly diagram

Bracket, q.l. valve

Part #D9964301

The manufacturer no longer makes this part, and there's no substitute part

Compressor, 208/230 V., 60 Hz D6902707
#3C

Preform coil assembly diagram

Compressor, 208/230 v., 60 hz

Part #D6902707

The manufacturer no longer makes this part, and there's no substitute part

Liquid Tube B1414501
#21

Preform coil assembly diagram

Liquid tube

Part #B1414501

The manufacturer no longer makes this part, and there's no substitute part
