Model # 7724 Official Porter Cable band saw

Here are the diagrams and repair parts for Official Porter Cable 7724 band saw, as well as links to manuals and error code tables, if available.

There are a couple of ways to find the part or diagram you need:

  • Click a diagram to see the parts shown on that diagram.
  • In the search box below, enter all or part of the part number or the part’s name.

Not all parts are shown on the diagrams—those parts are labeled NI, for “not illustrated”.

We encourage you to save the model to your profile, so it’s easy to access parts and manuals for your appliance whenever you log in.

For DIY troubleshooting advice and repair guides, visit our repair help section.

Model diagram and schematic

SEARCH WITHIN THIS MODEL

?

This is the number corresponding to the part on the diagram / schematic

Search
ALL PARTS
Showing 10 of 91 parts  |
Screw, T3 885951
#77

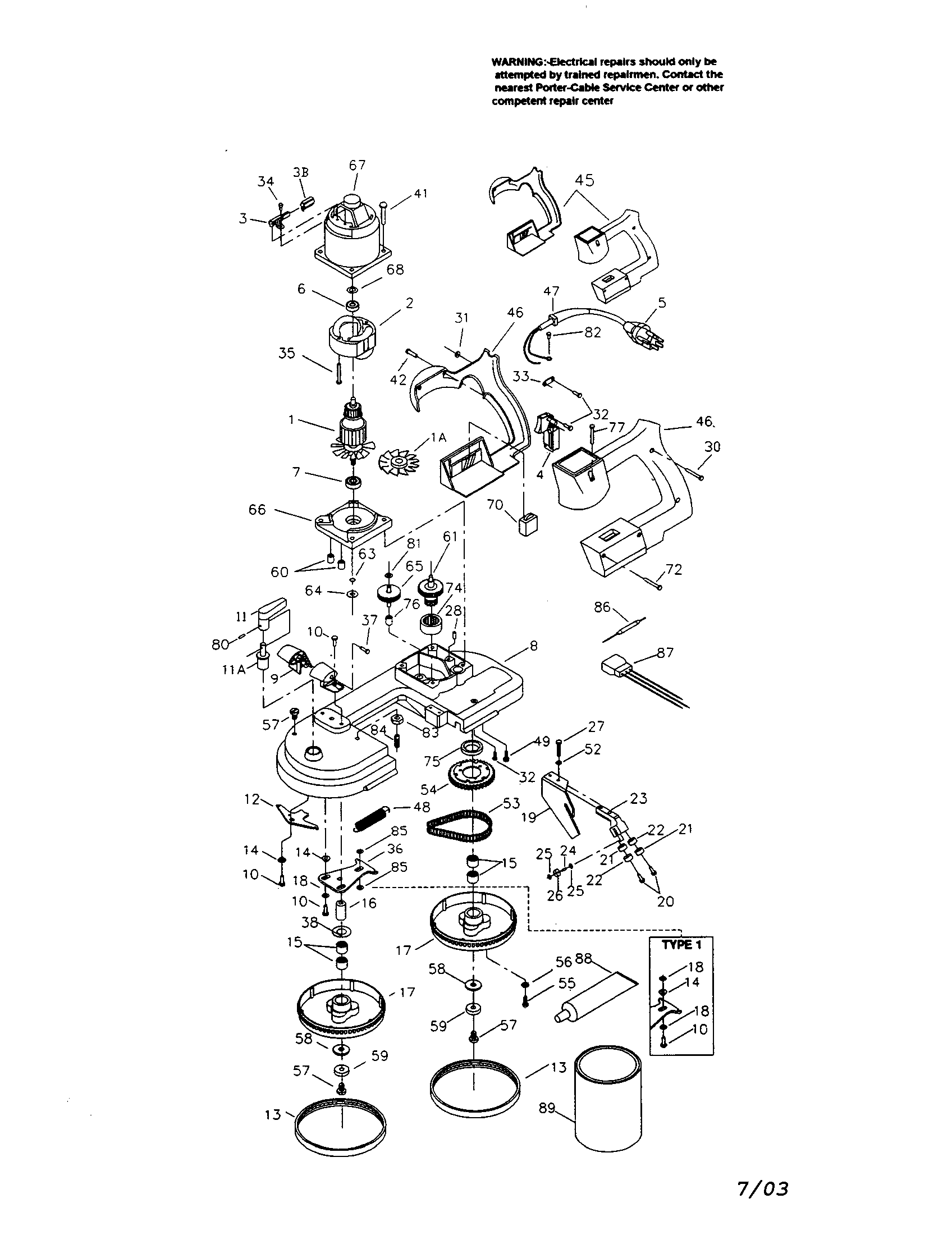

Porta-band diagram

Screw, t3

Part #885951

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Power Tool Bearing 855284
#6

Porta-band diagram

Craftsman power tool bearing

Part #855284

The manufacturer no longer makes this part, and there's no substitute part

Snap Ring 802203
#85

Porta-band diagram

Snap ring

Part #802203

The manufacturer no longer makes this part, and there's no substitute part

Clamp Nut 869687
#31

Porta-band diagram

Clamp nut

Part #869687

The manufacturer no longer makes this part, and there's no substitute part

Washer 802318
#18

Porta-band diagram

Washer

Part #802318

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Holder 865323
#3B

Porta-band diagram

Craftsman holder

Part #865323

The manufacturer no longer makes this part, and there's no substitute part

Washer 848741
#81

Porta-band diagram

Washer

Part #848741

The manufacturer no longer makes this part, and there's no substitute part

Craftsman Screw 882703
#32

Porta-band diagram

Craftsman screw

Part #882703

The manufacturer no longer makes this part, and there's no substitute part

Screw 800191
#55

Porta-band diagram

Screw

Part #800191

The manufacturer no longer makes this part, and there's no substitute part

Bearing 857399
#7

Porta-band diagram

Bearing

Part #857399

The manufacturer no longer makes this part, and there's no substitute part
